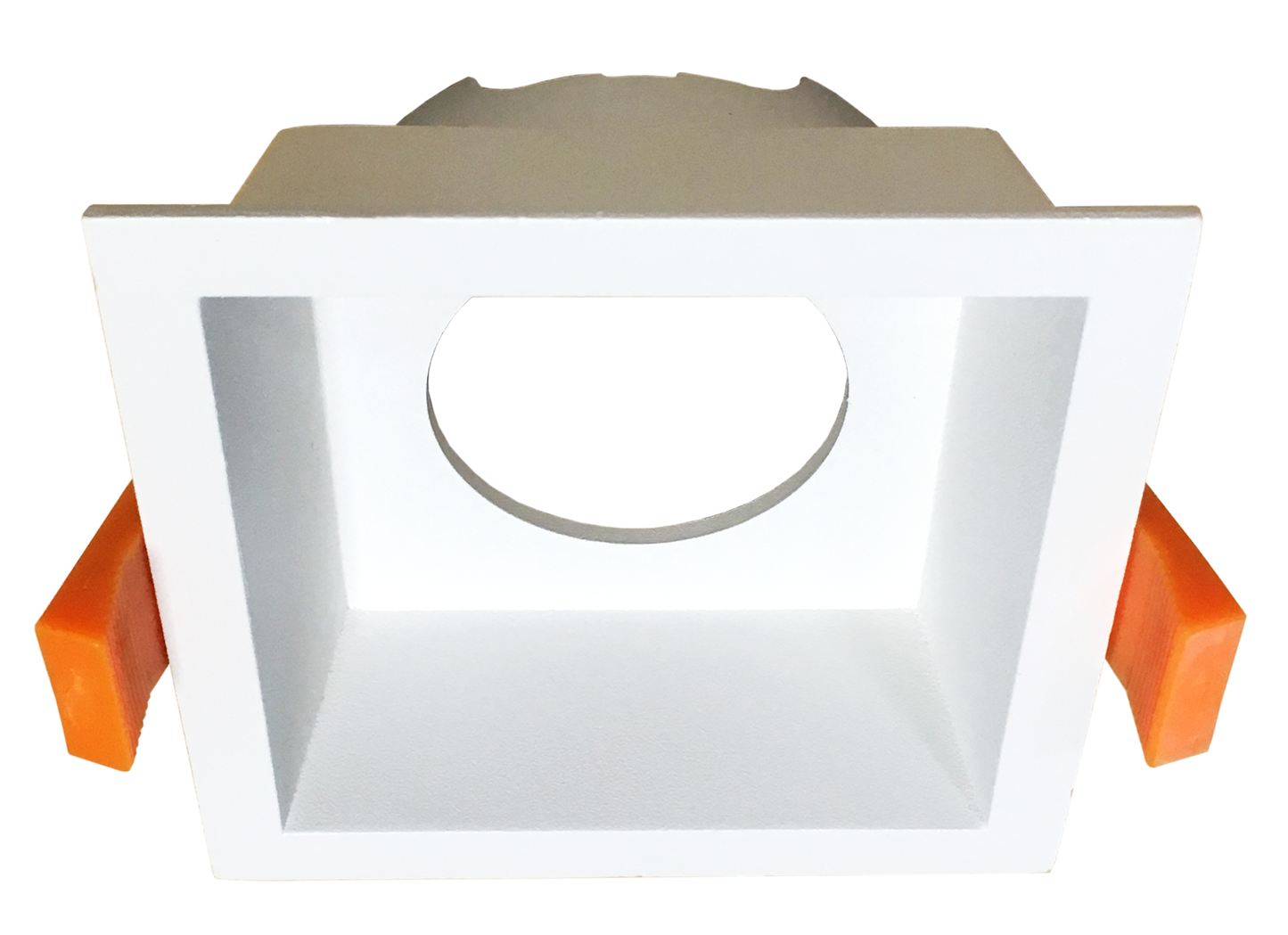

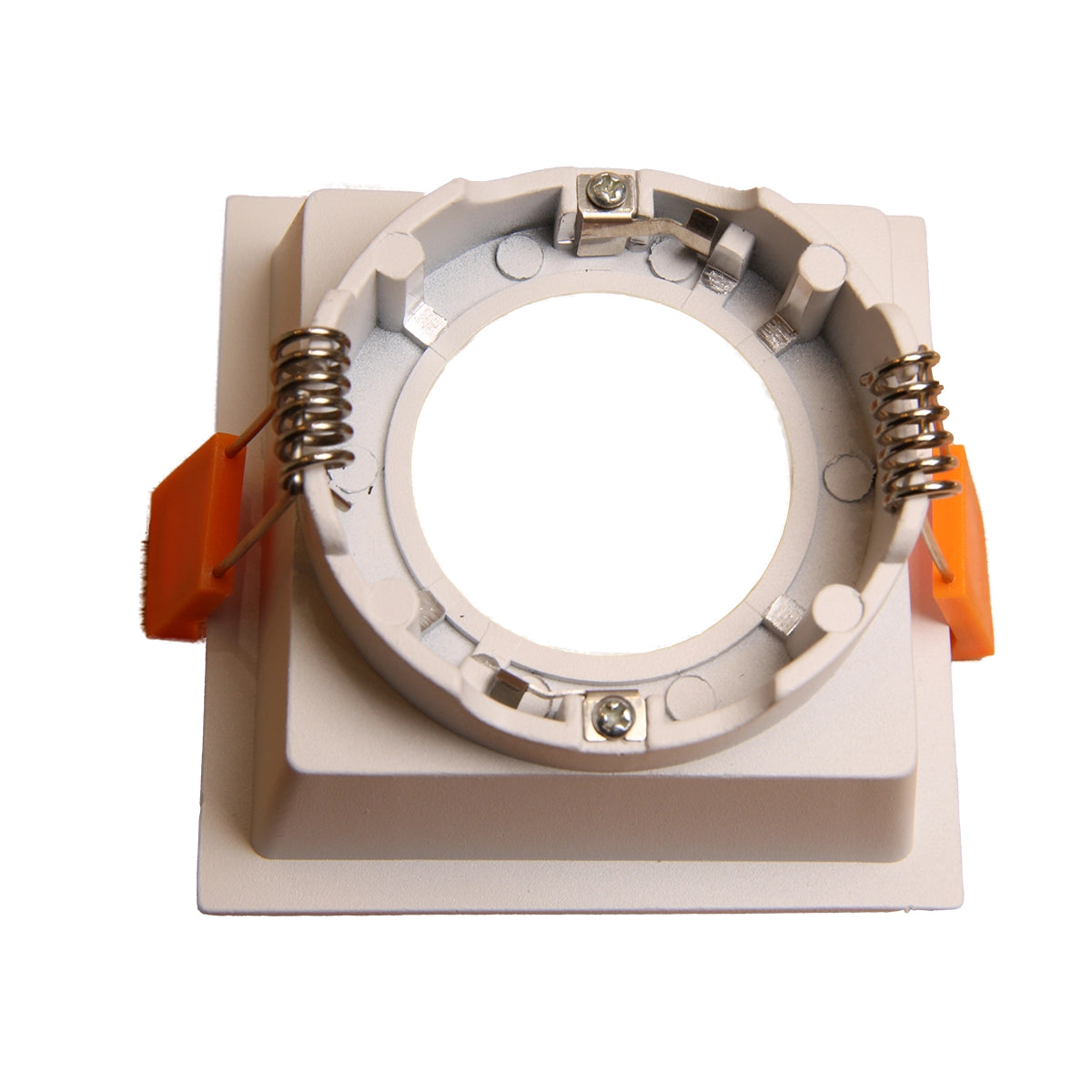

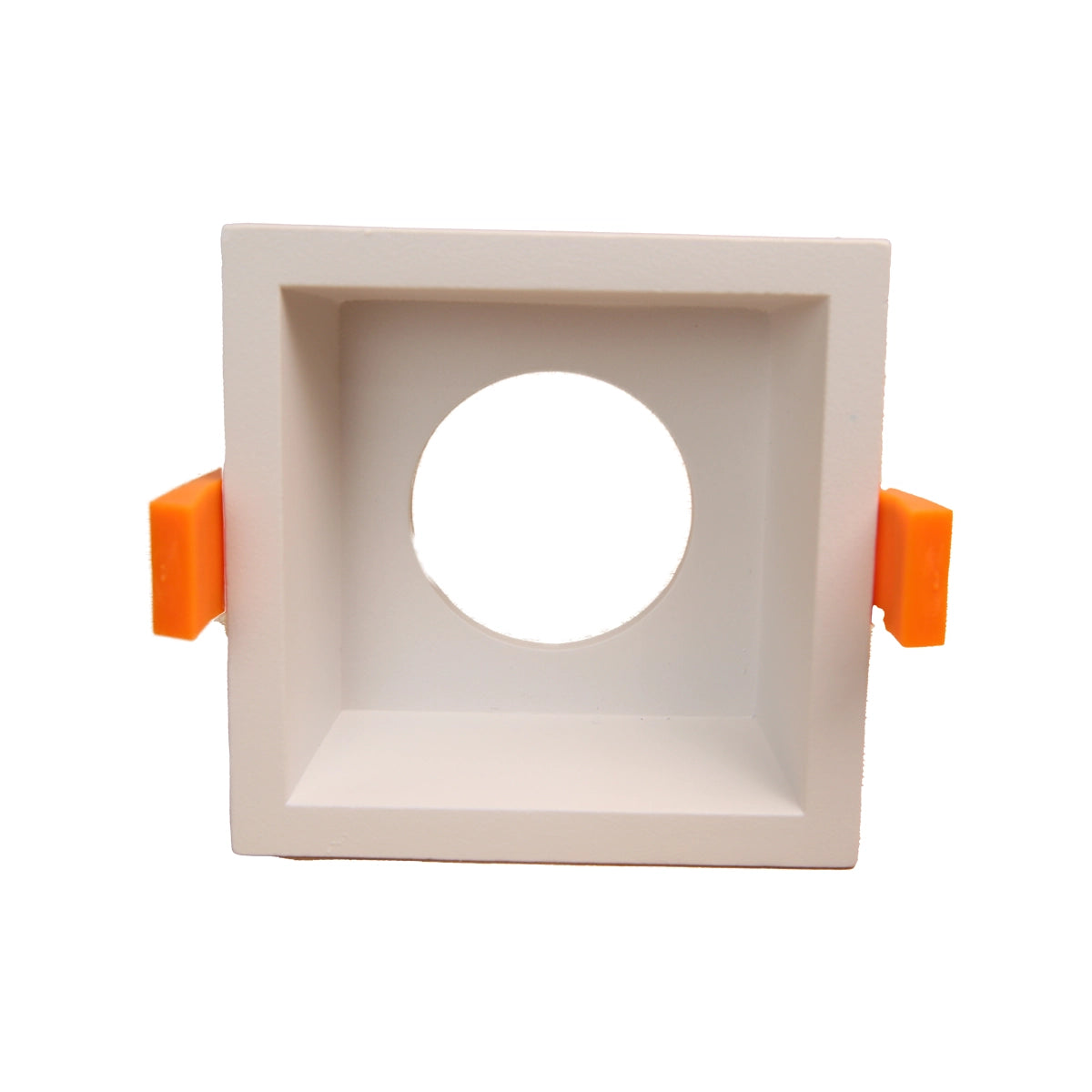

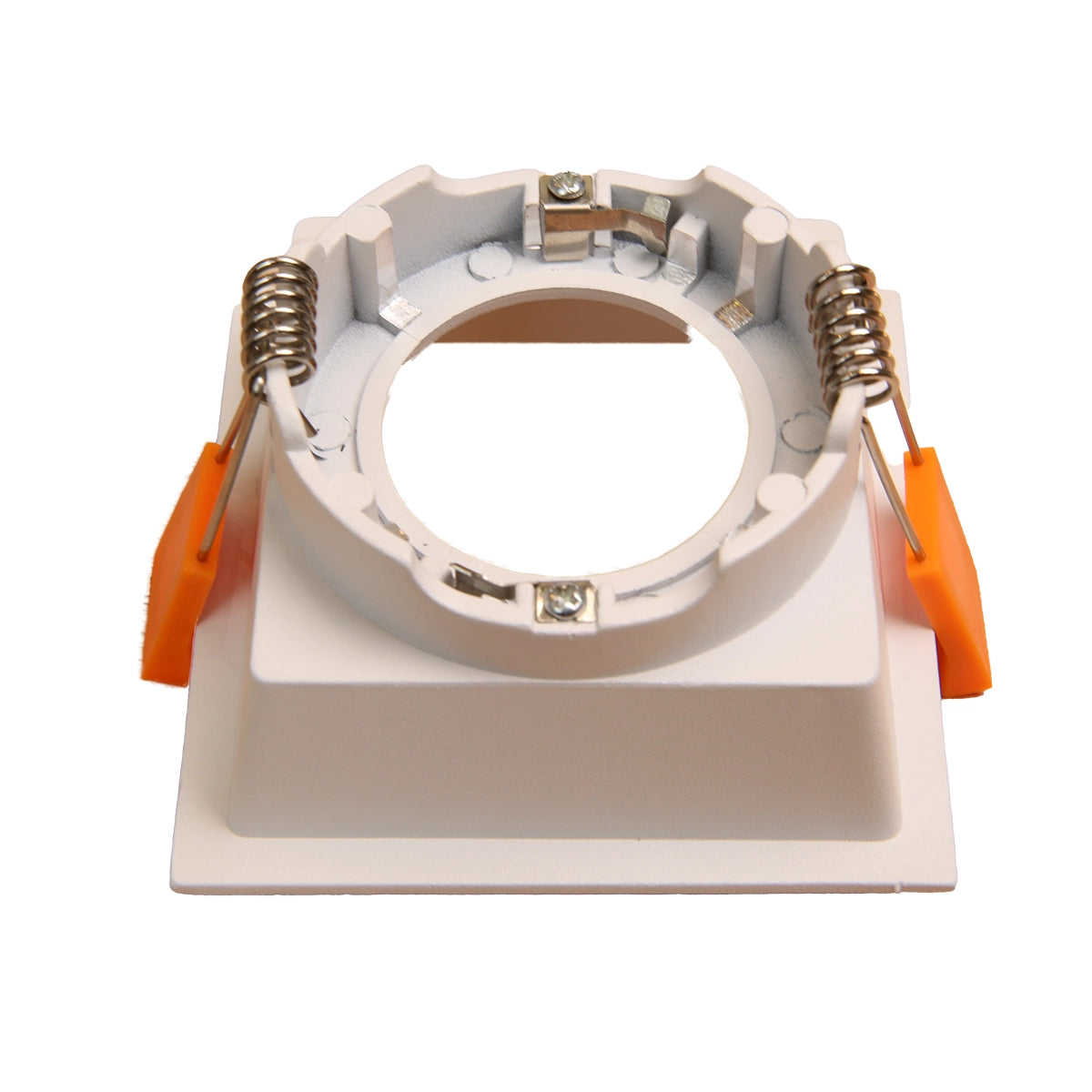

SQ17 White- Square fixed IP20 surface mount trim for X Series COB Modules

SQ17 White- Square fixed IP20 surface mount trim for X Series COB Modules

58 in stock

SKU:SQ17 White

Regular price $11.00 AUD
Regular price $11.00 AUD Sale price $11.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

IP20, Adjustable Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.

Choose this trim if

a. when you want a square trim.

b. Very low profile bezel makes it architecturally very attractive.

c. Low glare rating as the light is set back.

Do not choose this trim if

a. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.

b. if you are overly restricted in mounting depth.

c. if you are planning to use X20A (18W) modular COB module in your project.

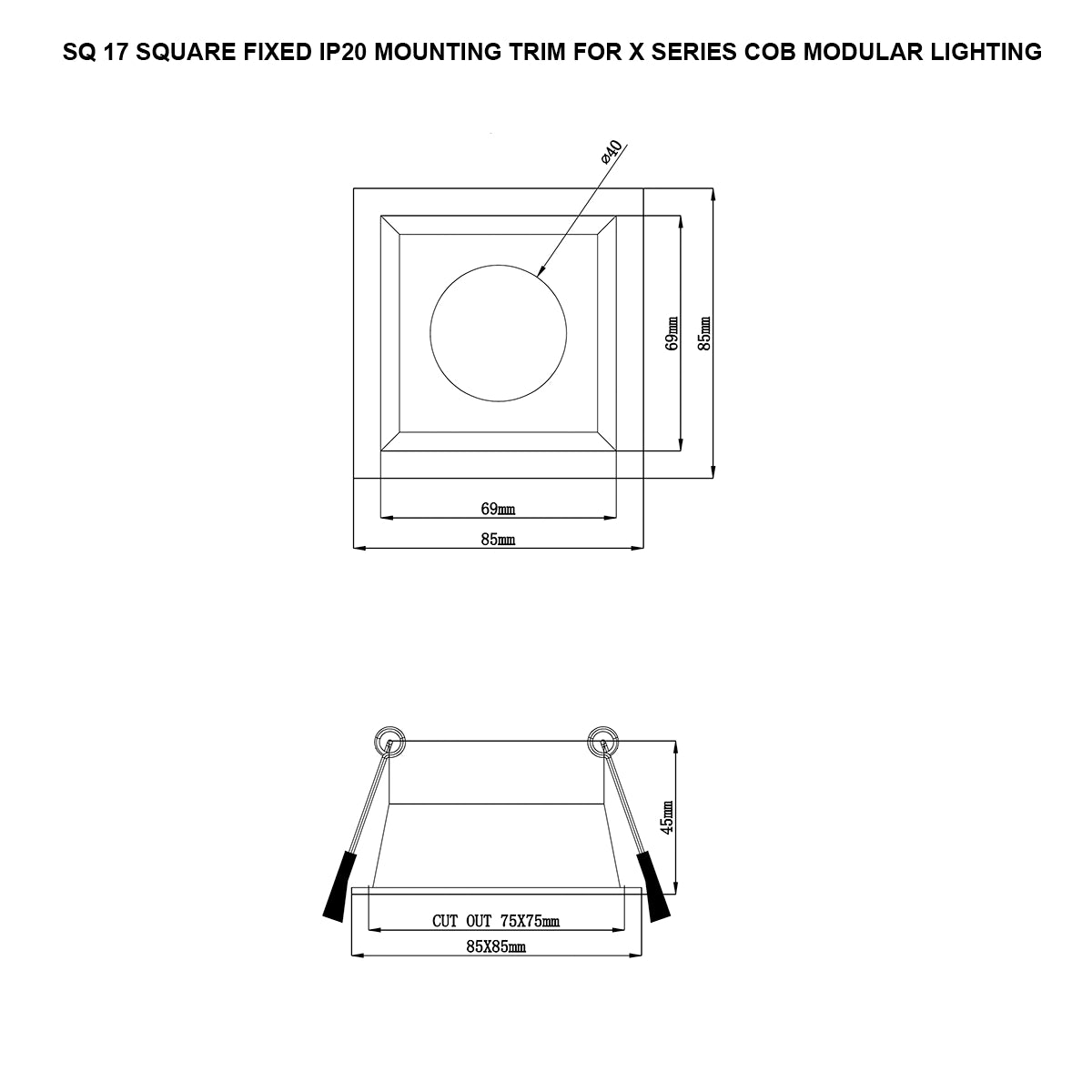

Cut out

75 x 75 mm

Diameter of face

85 x 85  mm

Total height of fitting

45 mm

Mounting depth with X3A

95 mm

Mounting depth with X15A

104 mm

Mounting depth with X20A

Not suitable

Mounting depth with XRGBW

95 mm

Mounting depth with XCCT

80 mm

Click here to download a pdf spec sheet for SQ17 square fix IP20 trim.

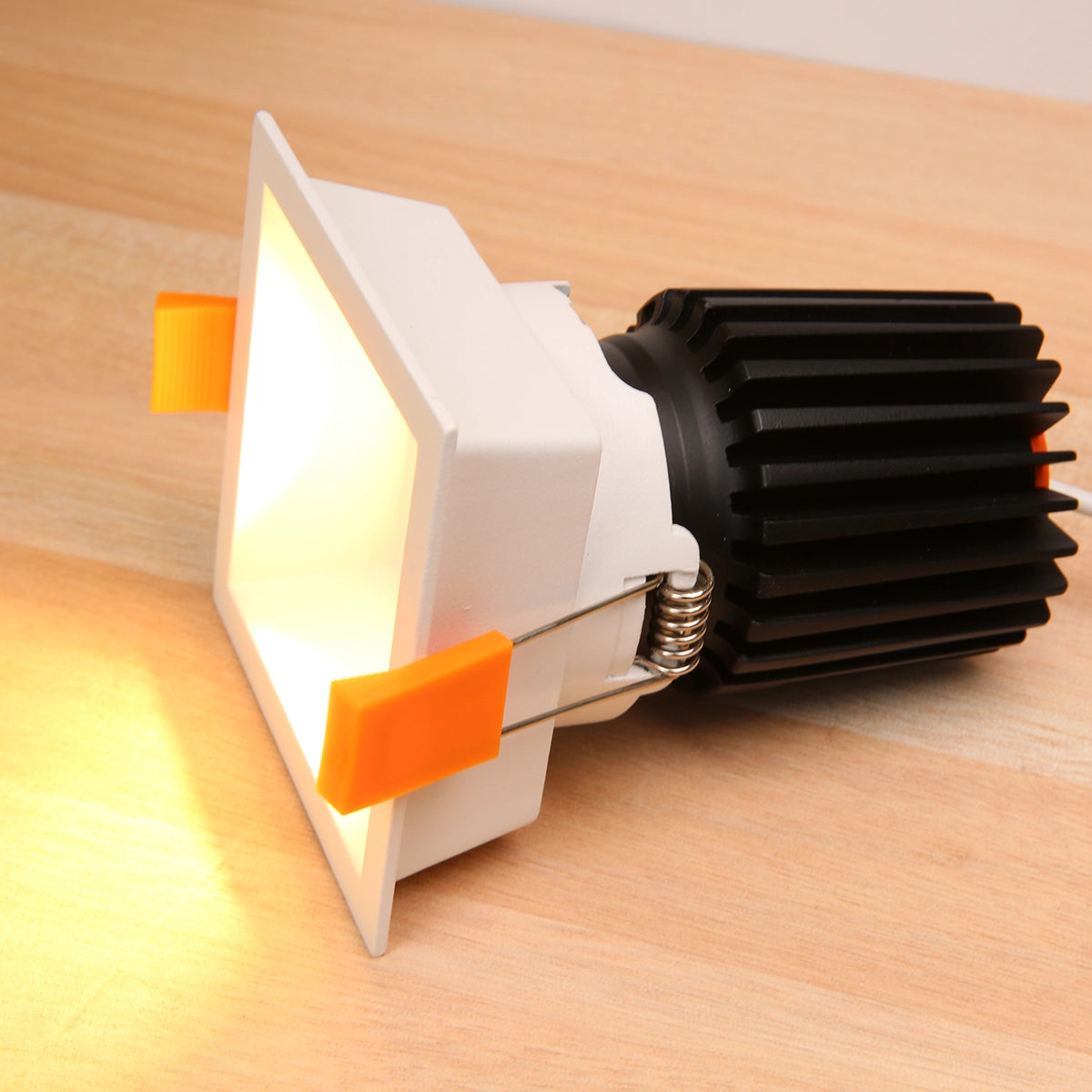

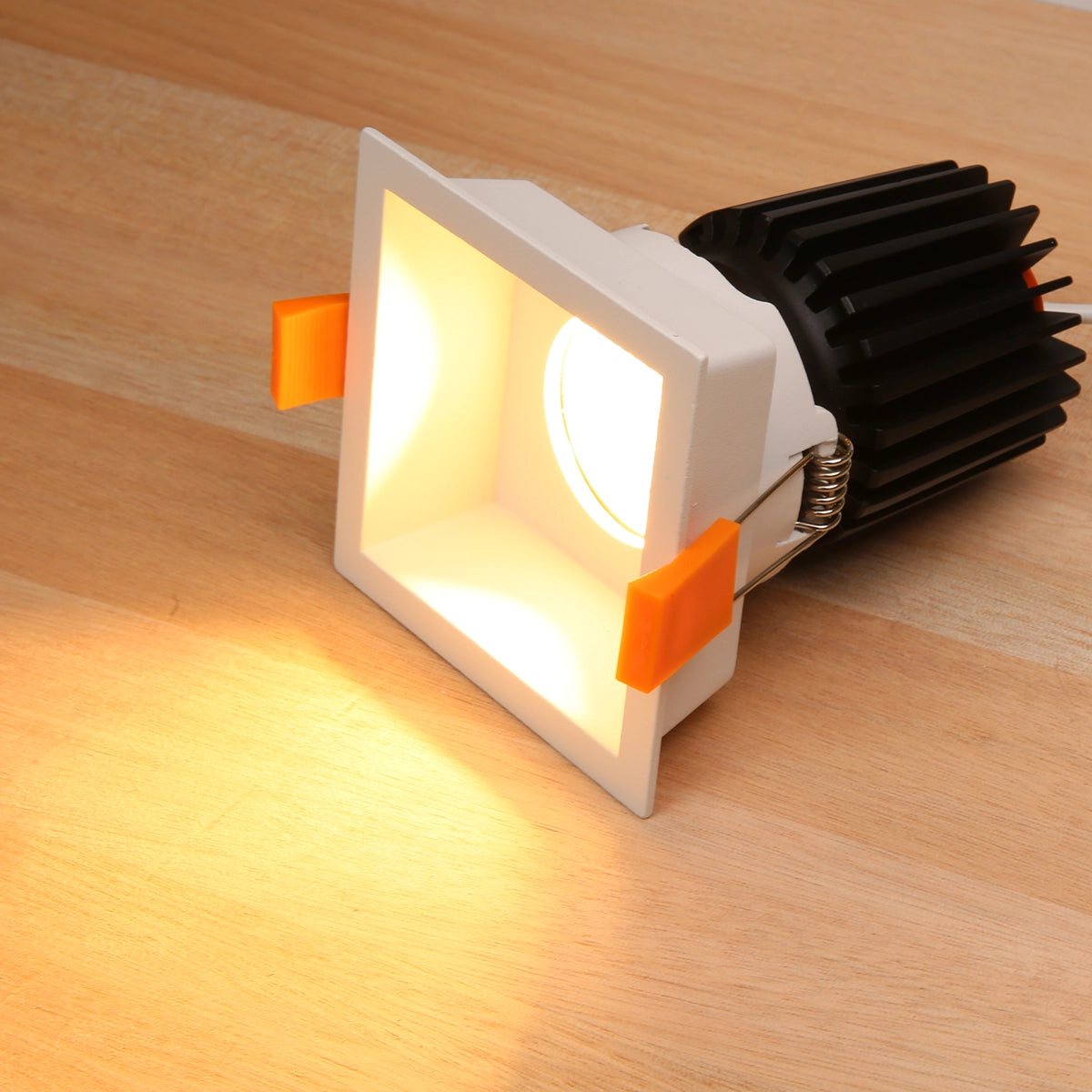

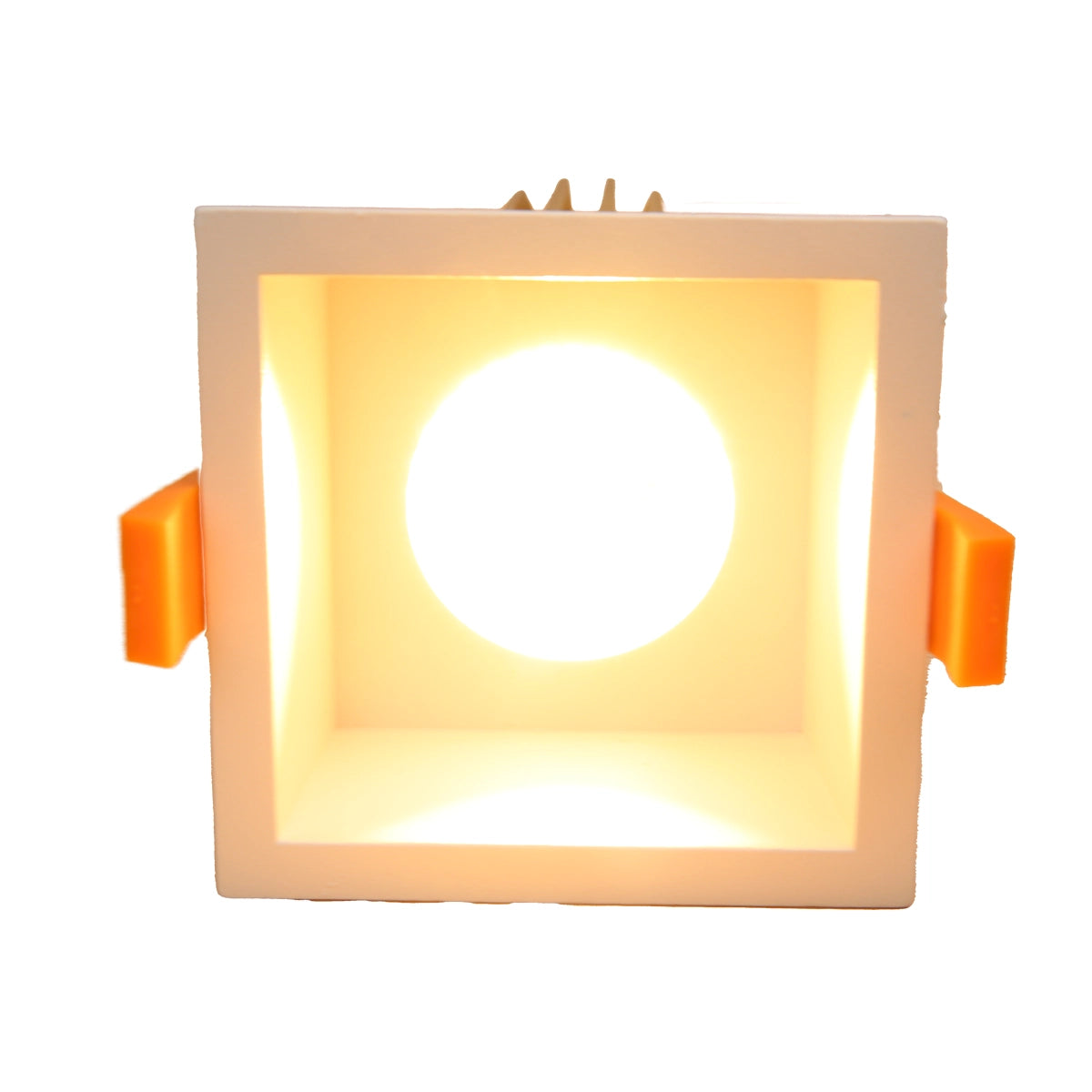

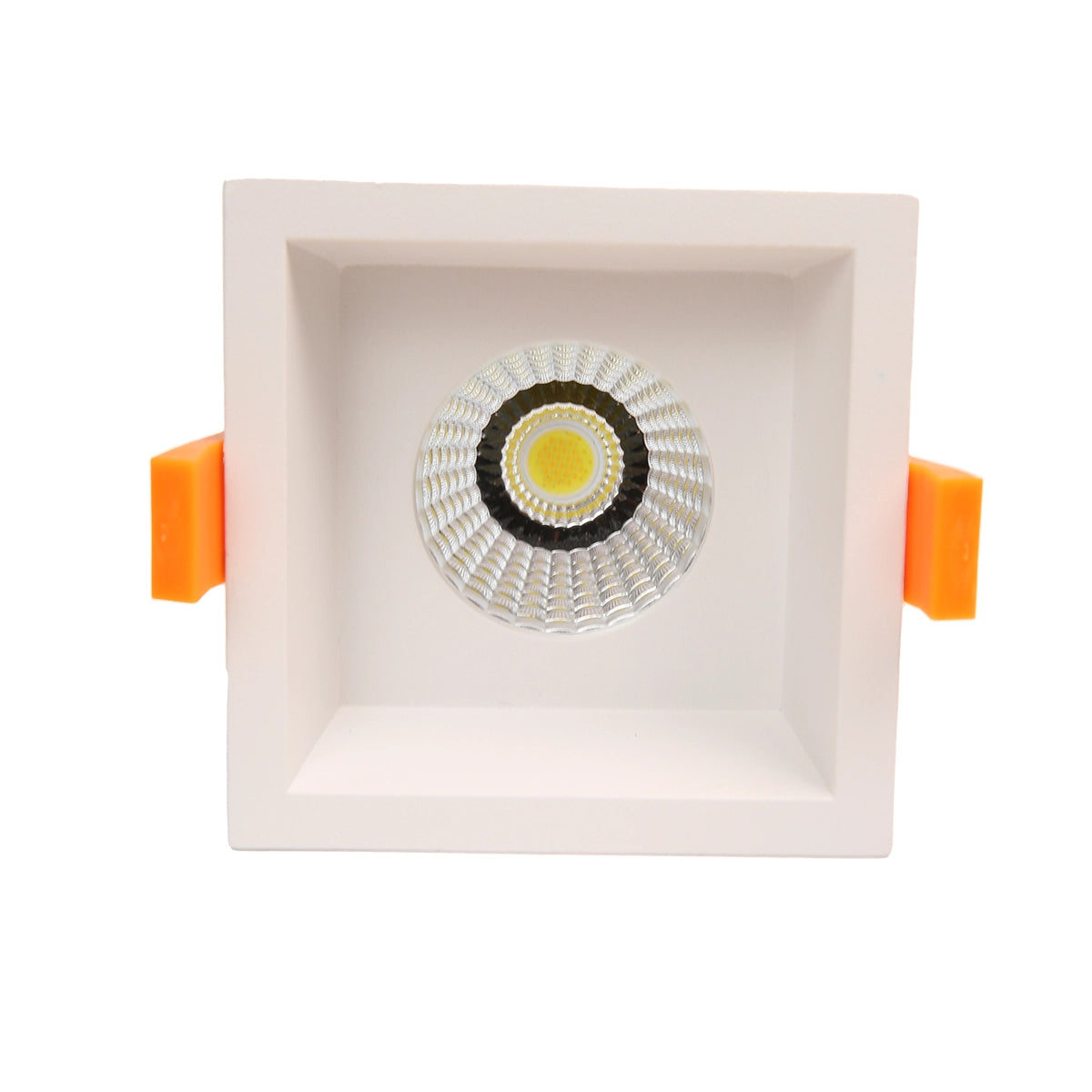

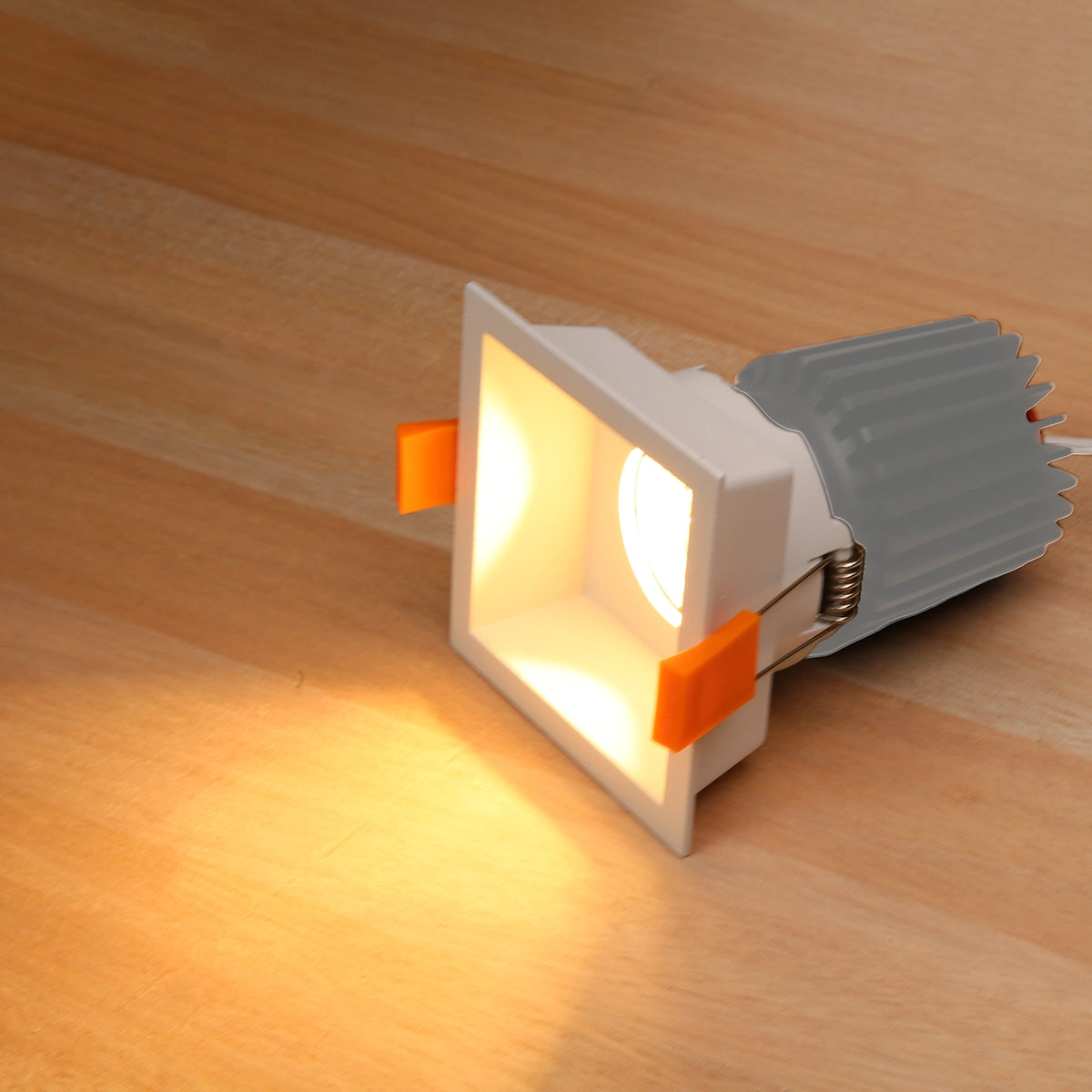

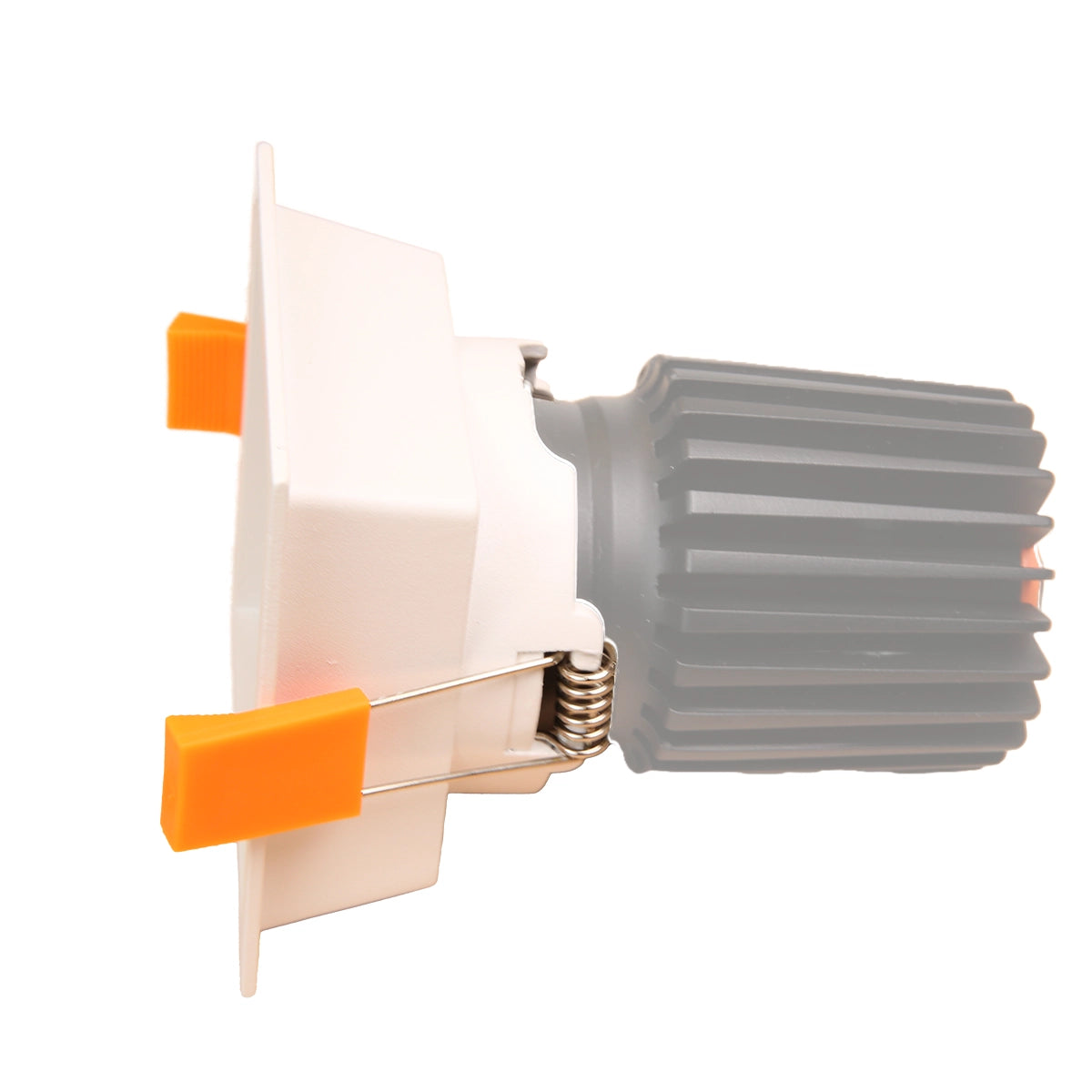

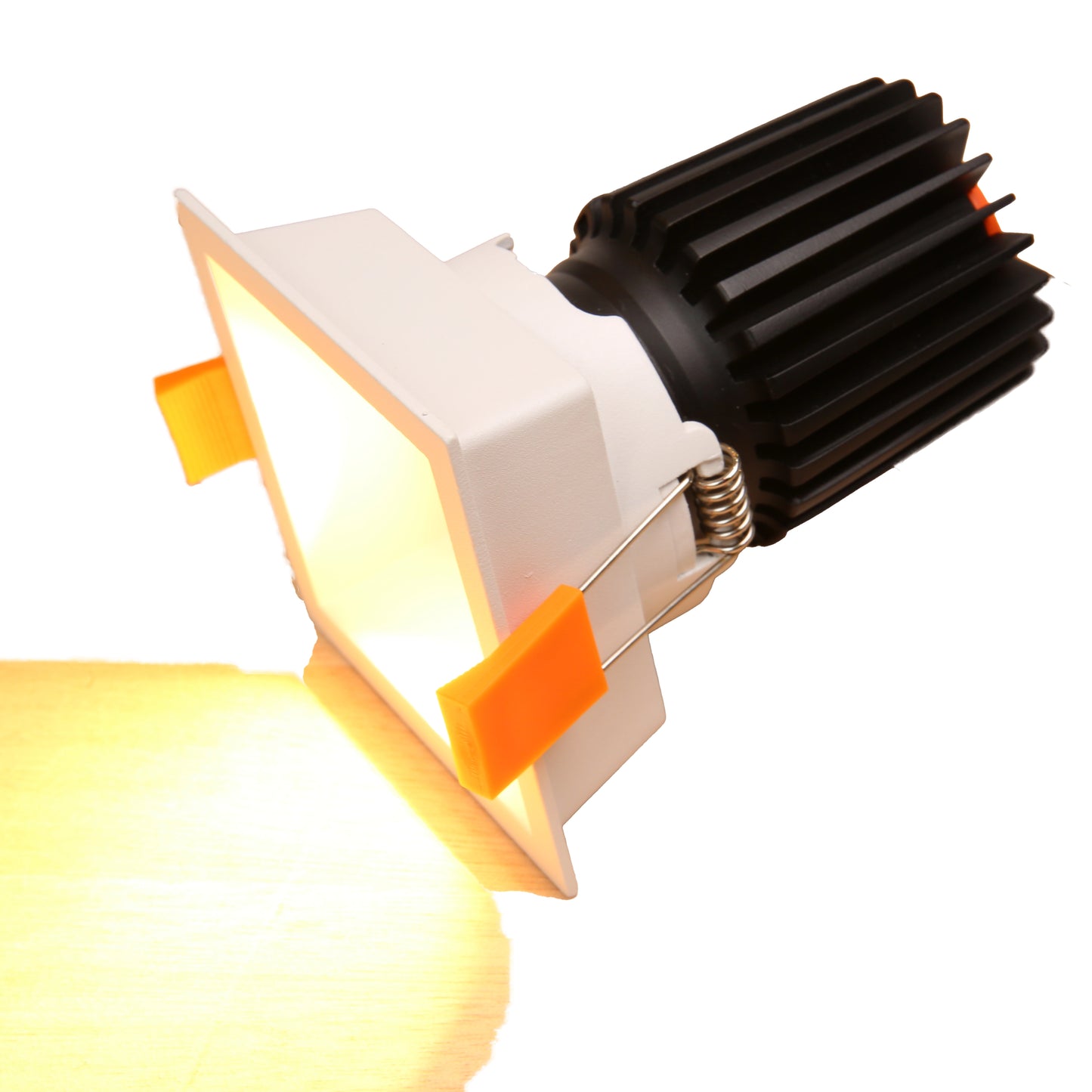

The price is for the surface mount trim only. The light is shown for illustration purposes only.
