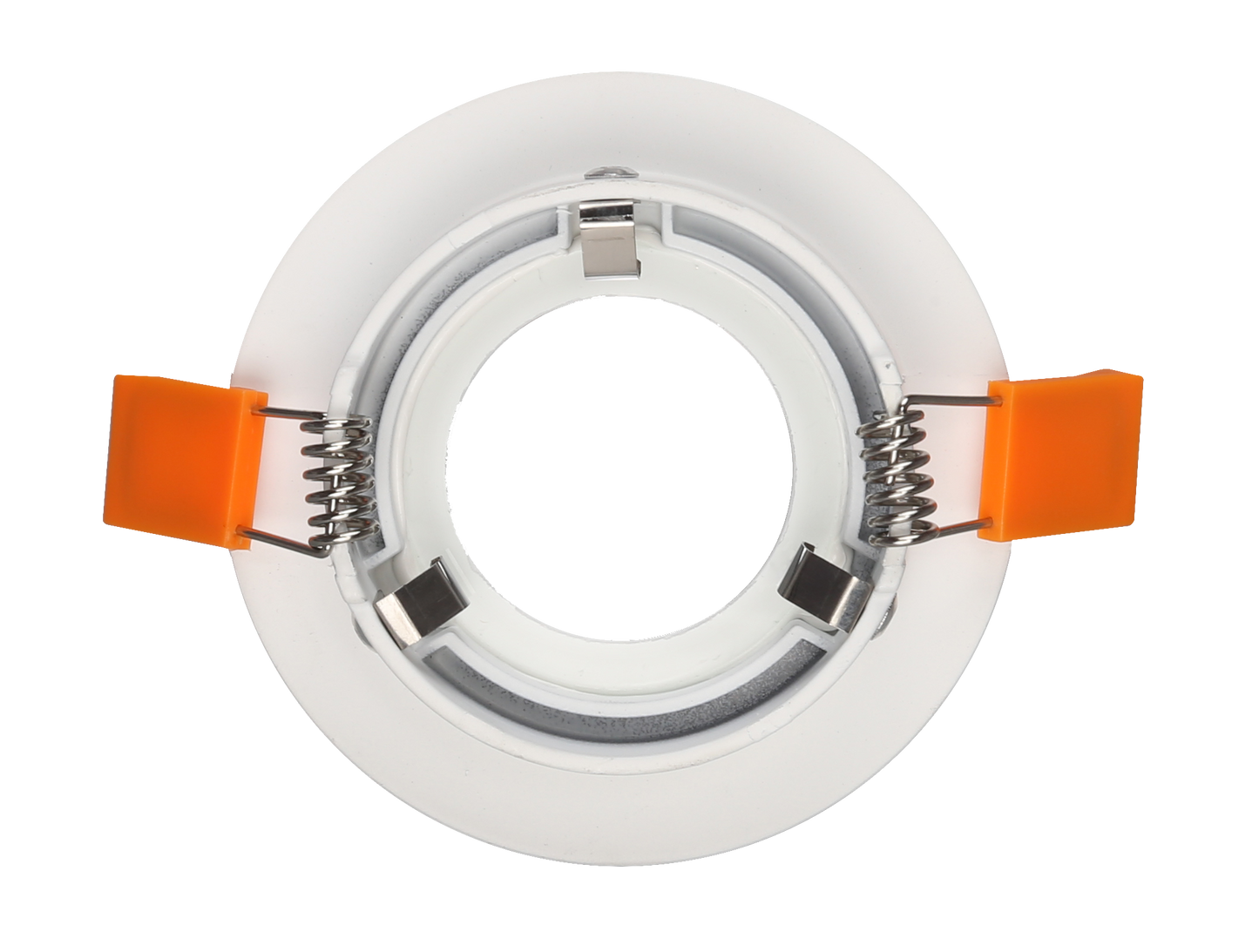

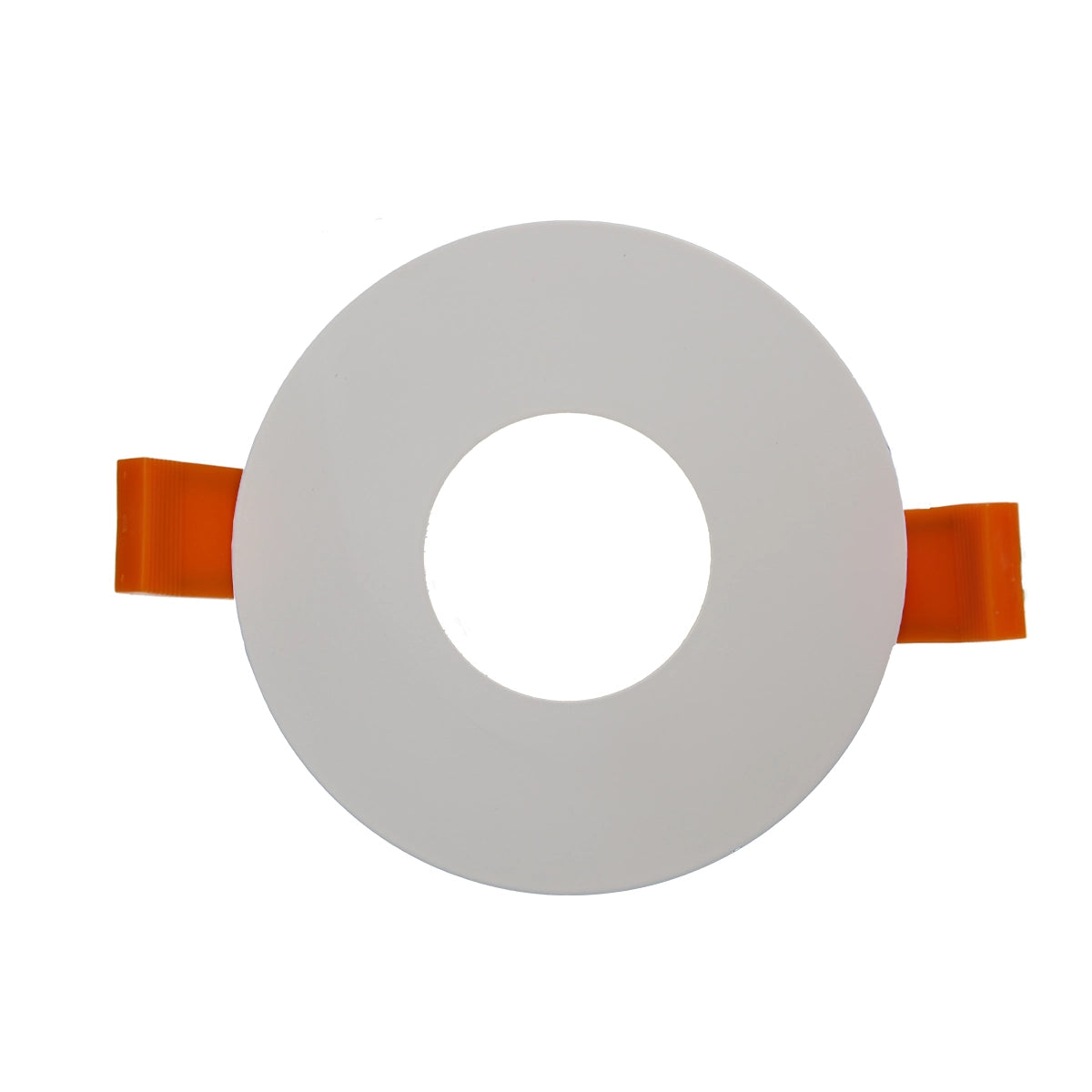

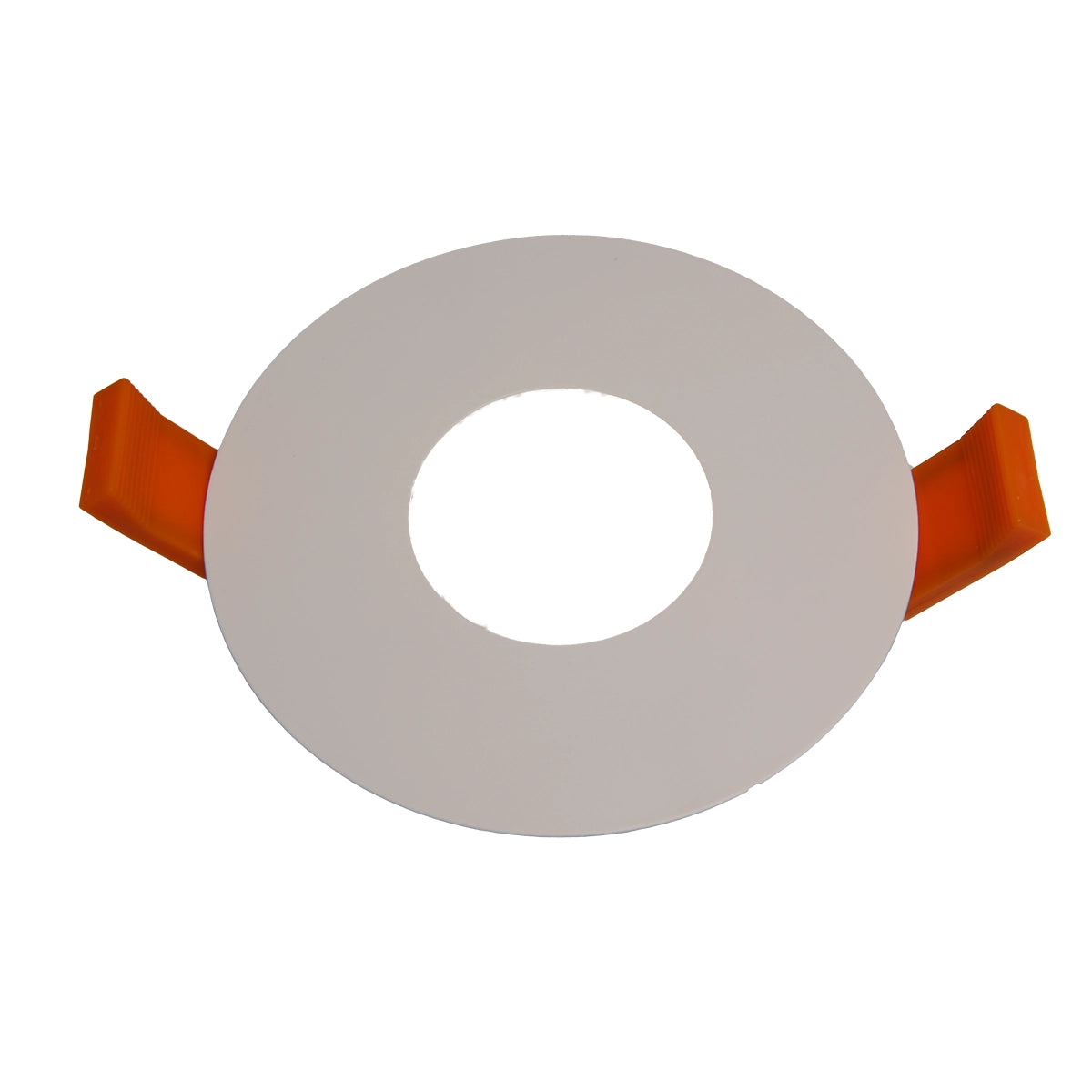

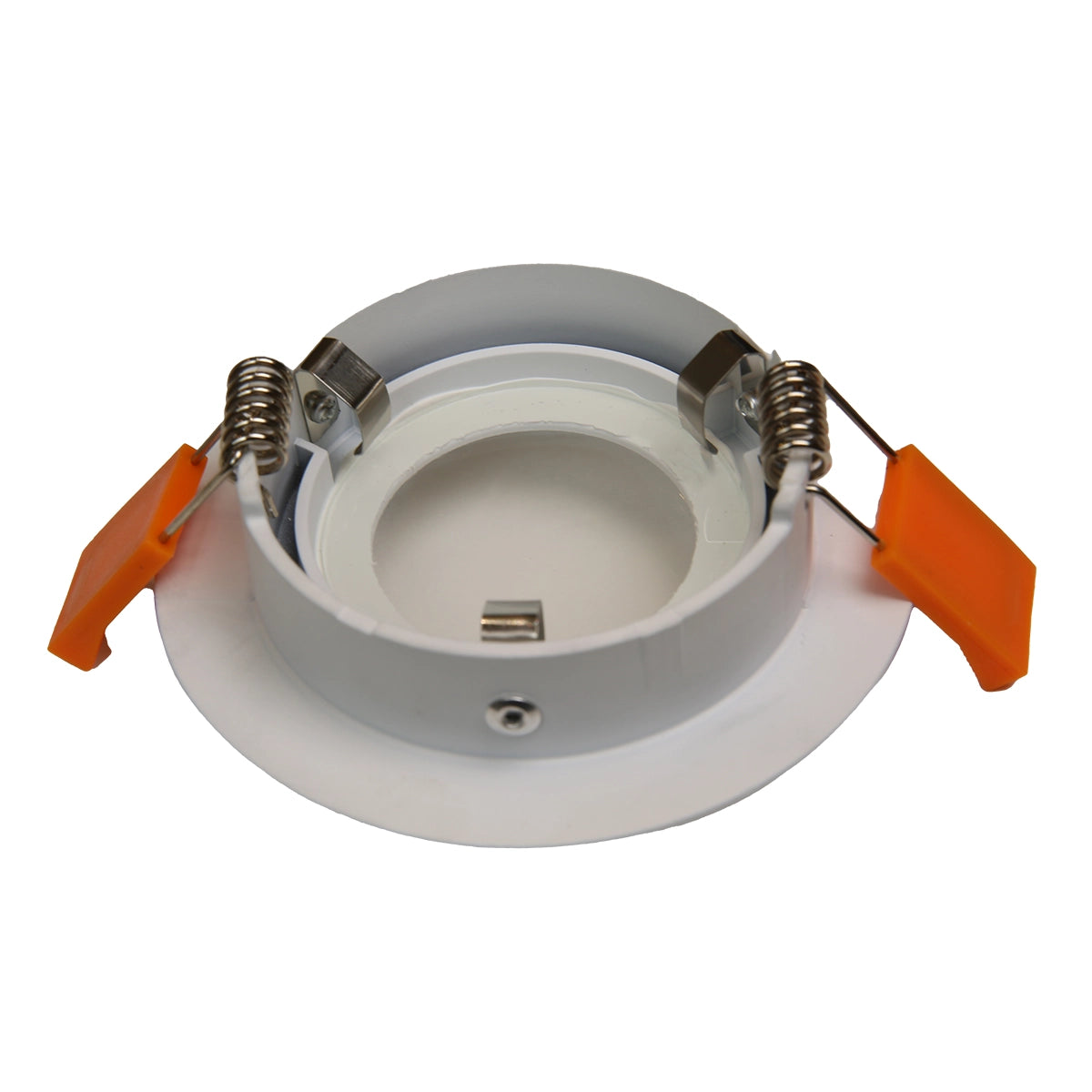

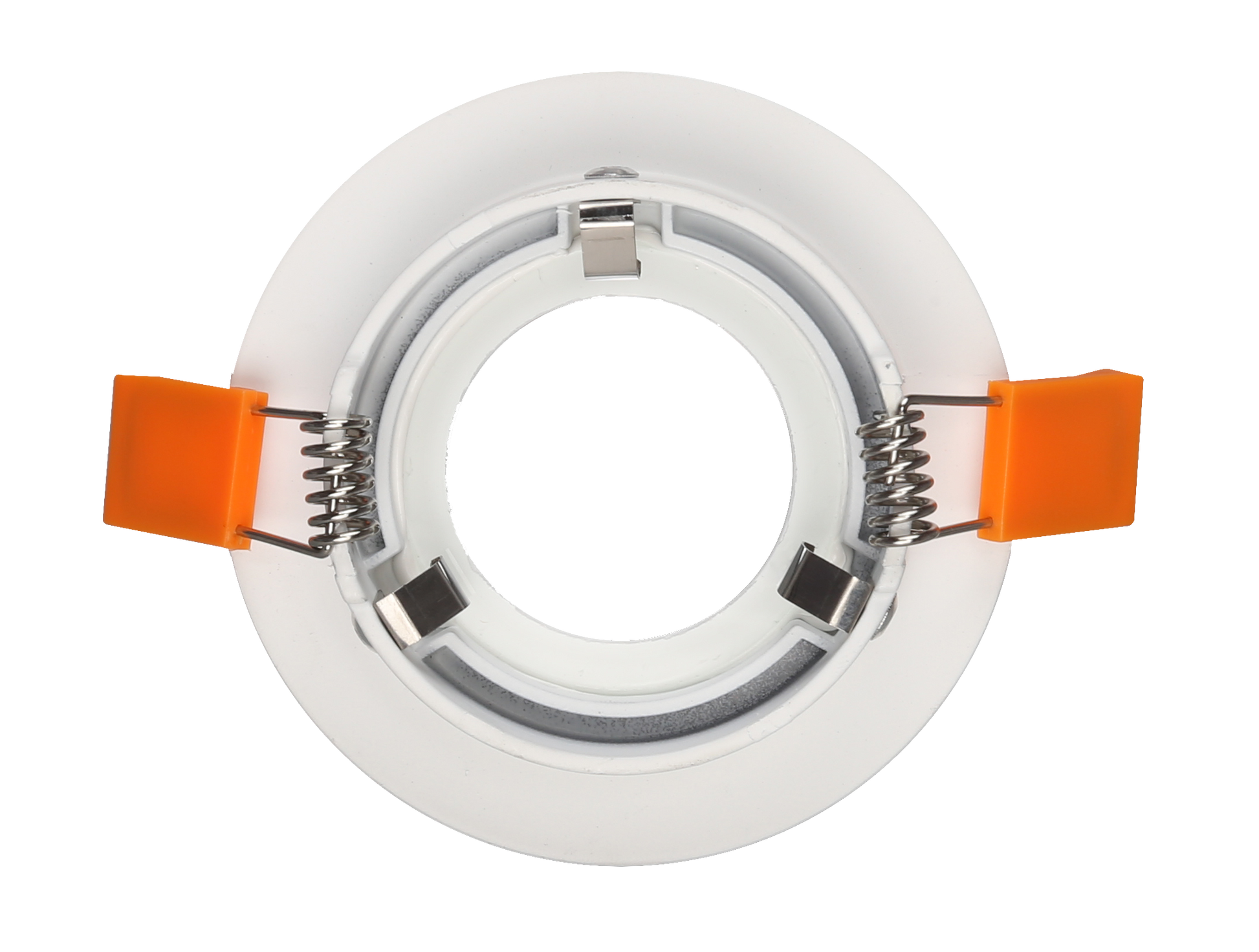

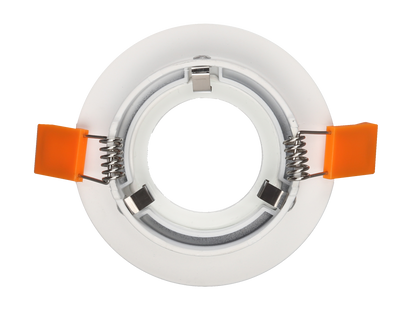

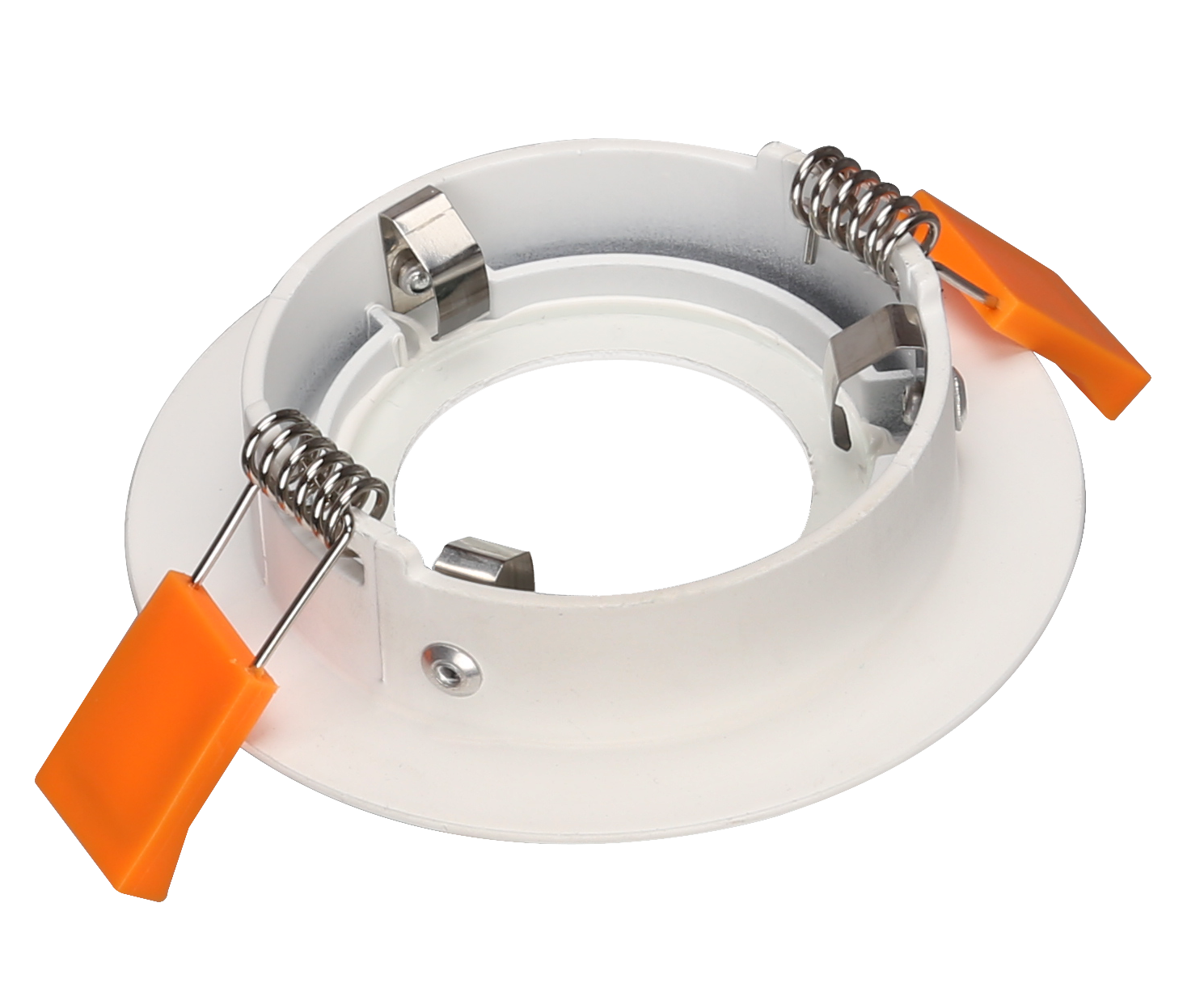

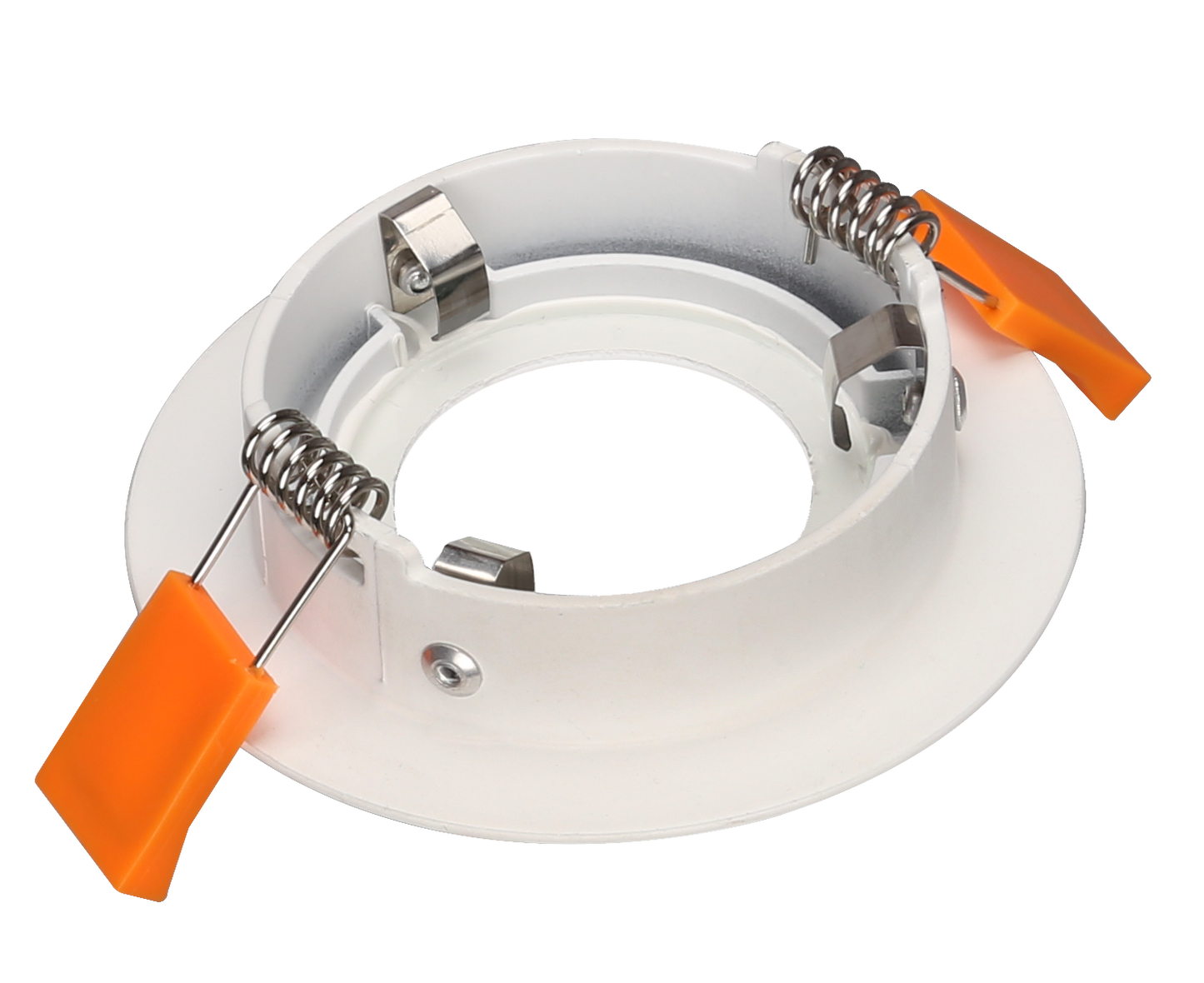

RF4 White- Round fixed IP44 surface mount trim for X Series COB Modules

RF4 White- Round fixed IP44 surface mount trim for X Series COB Modules

98 in stock

SKU:RF4 White

Regular price $11.00 AUD
Regular price $11.00 AUD Sale price $11.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

IP44, Surface mount ring for X3A, X15A, XRGBW and XCCT COB down light modules.

Choose this trim if

a. very neutral look that is liked by most.

b. when replacing old lights that are installed with a 70-75 mm cut out.

c. suitable for use in high moisture areas and under the eves.

d. when relatively shallower mounting depth is available.

Do not choose this trim if

a. You are replacing existing lights and the cut out size is large than 90 mm

b. If you are a much lower glare rating. This has a moderate glare rating.

c. if you have chosen X20A (18W) module. The cooling radiator diameter of the X20A module is larger than 75 mm.

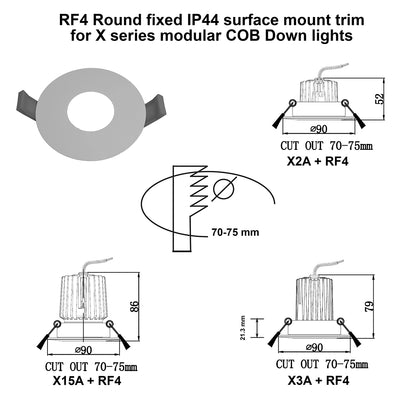

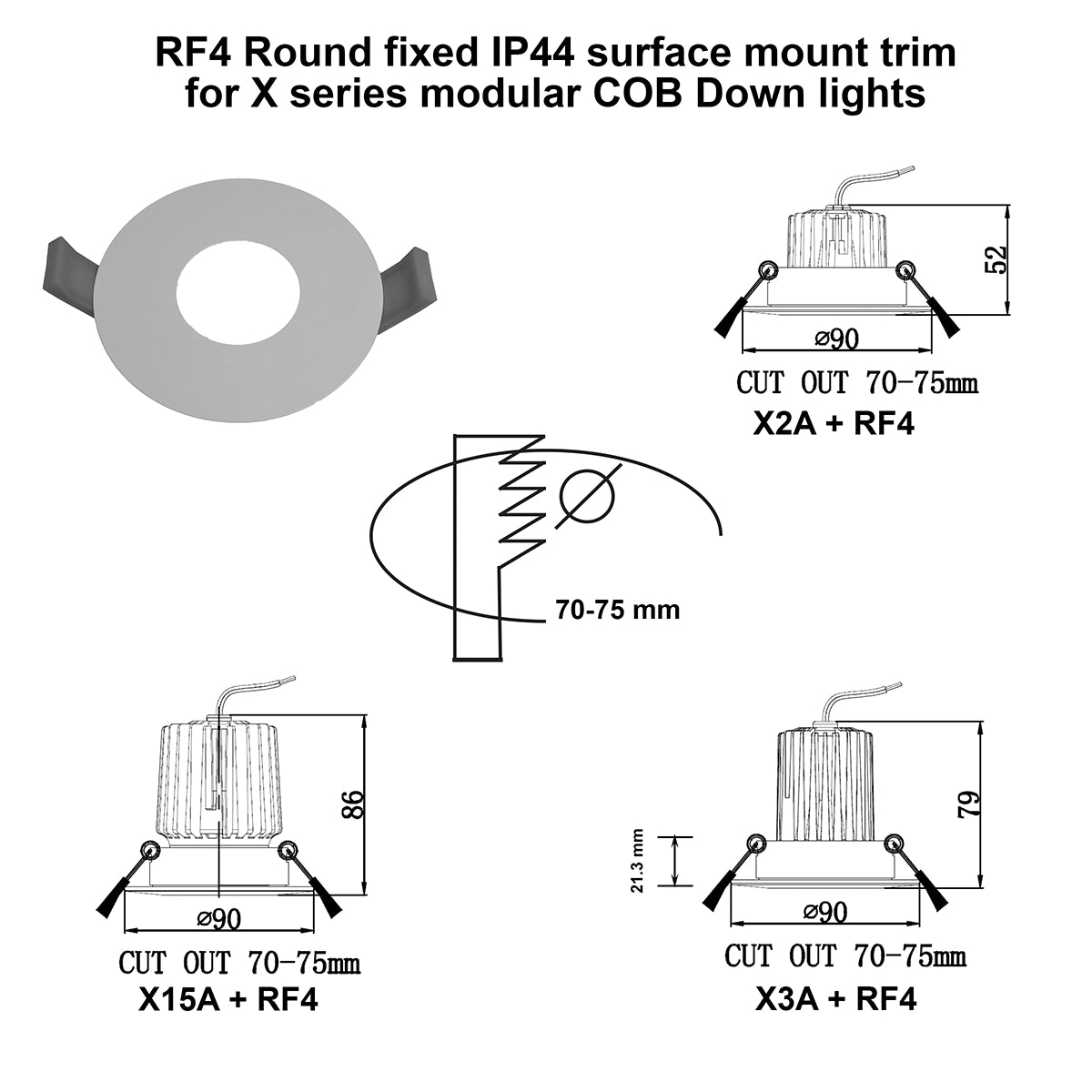

Cut out

70-75 mm

Diameter of face

90 mm

Total height of fitting

22 mm

Mounting depth with X3A

79 mm

Mounting depth with X15A

86 mm

Mounting depth with X20A

Not suitable

Mounting depth with XRGBW

79 mm

Mounting depth with XCCT

64 mm



Clicke here to download a pdf spec sheet for RF4 round fixed IP44 trim.

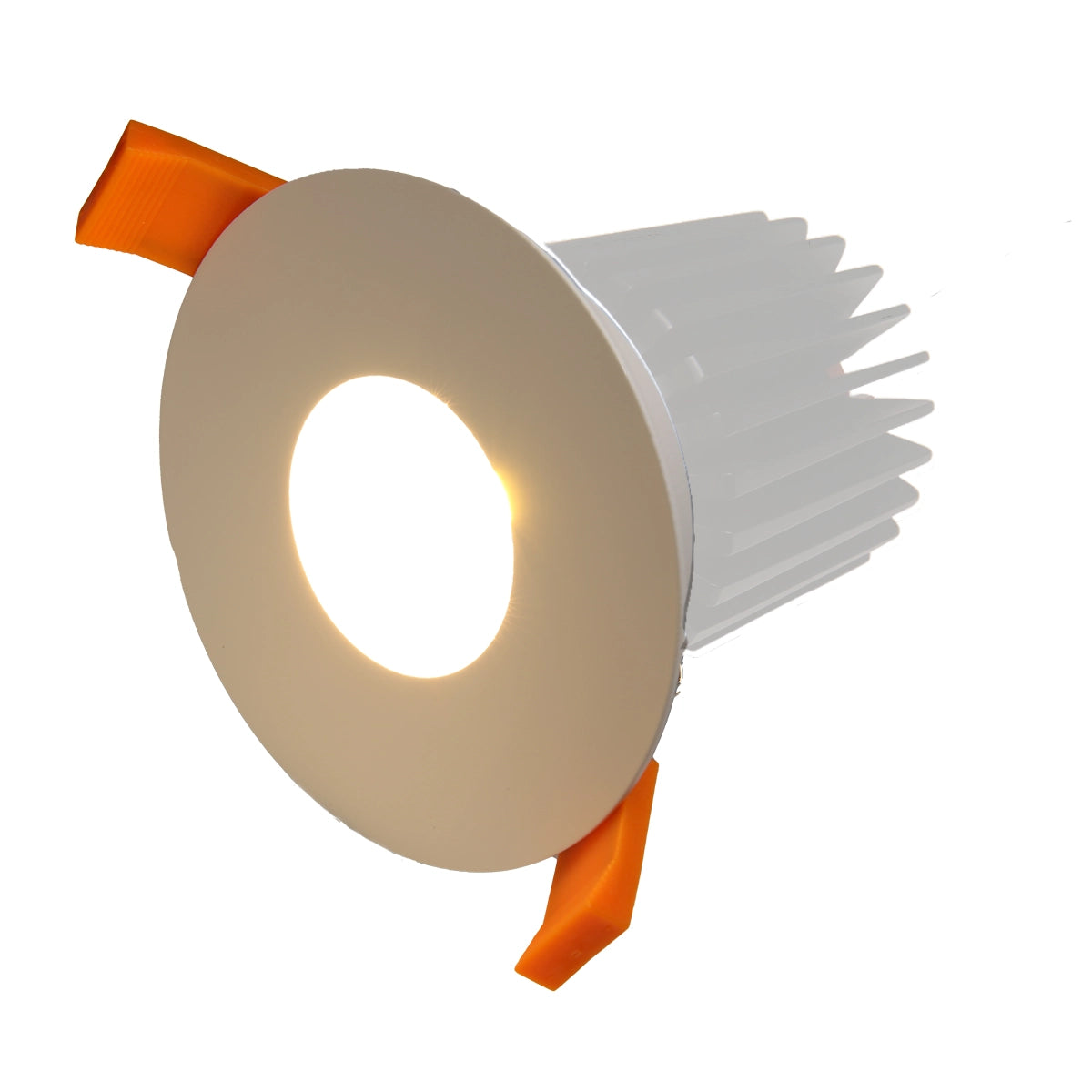

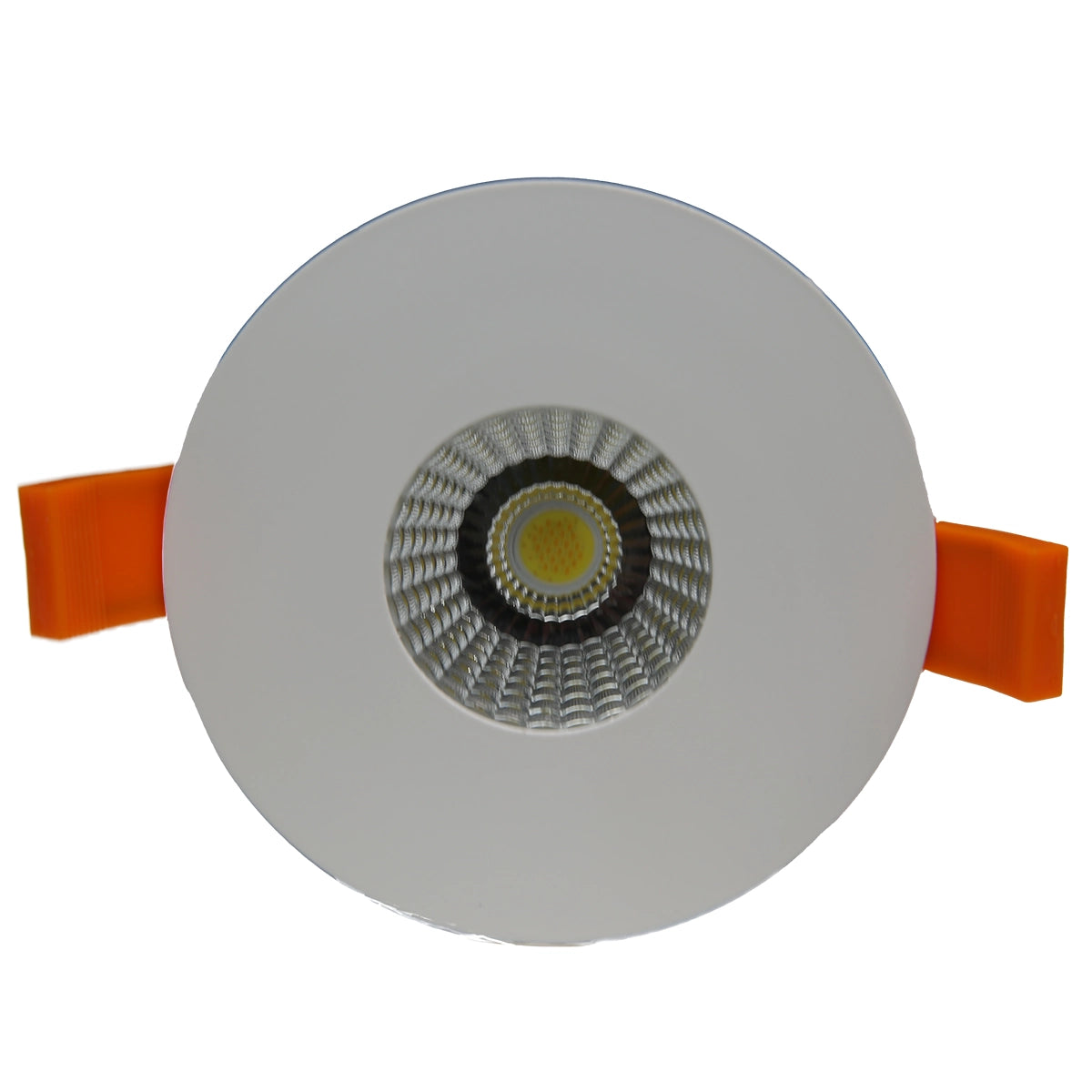

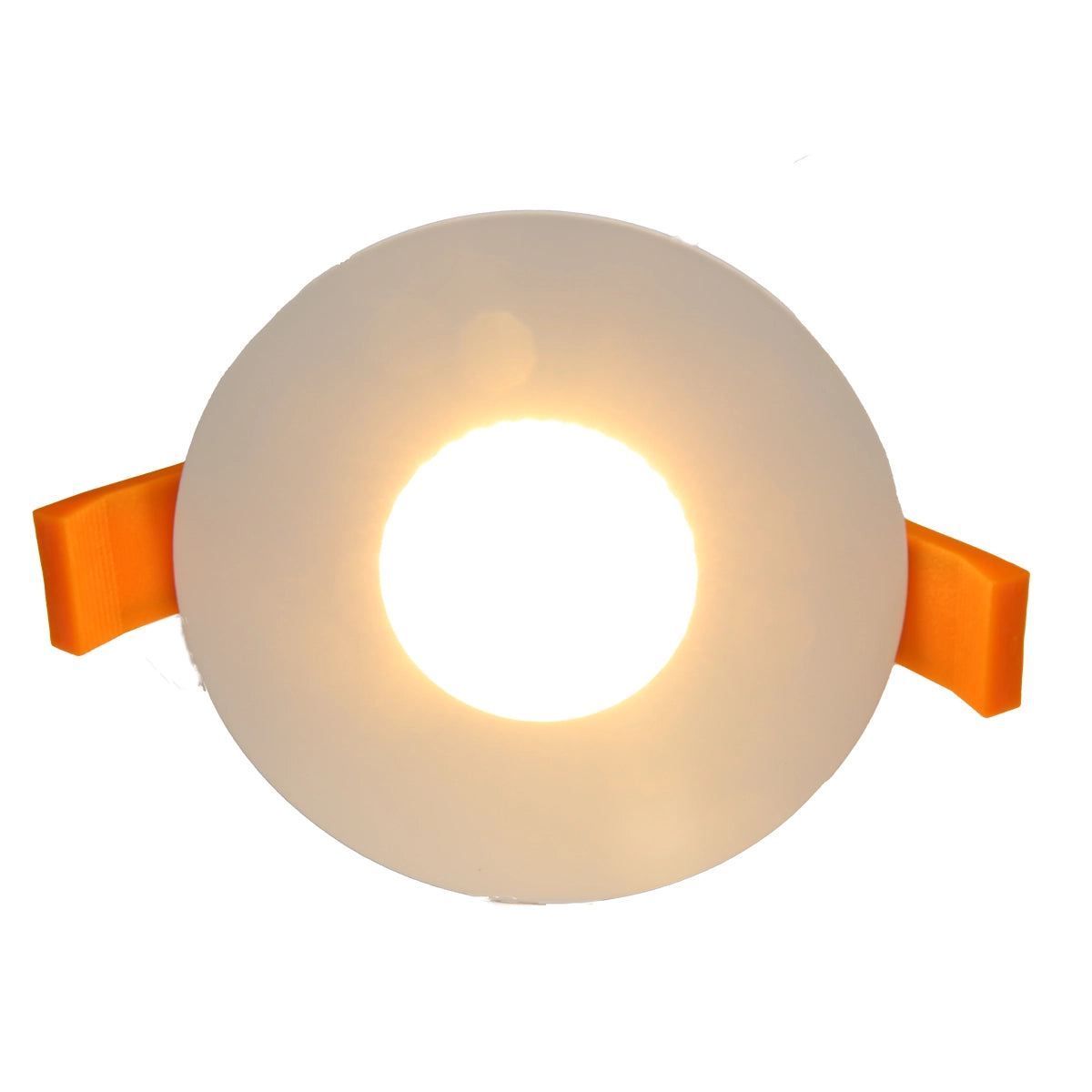

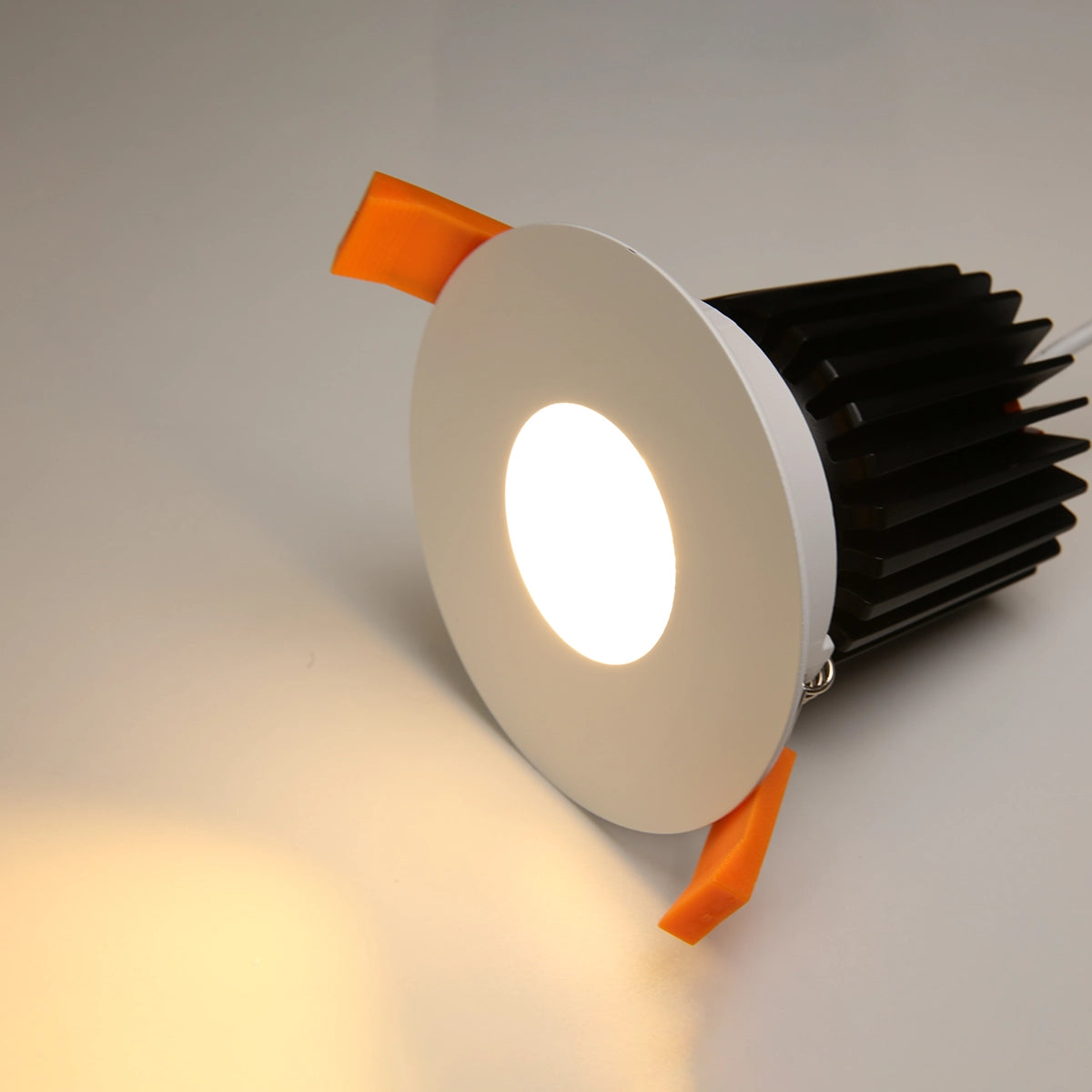

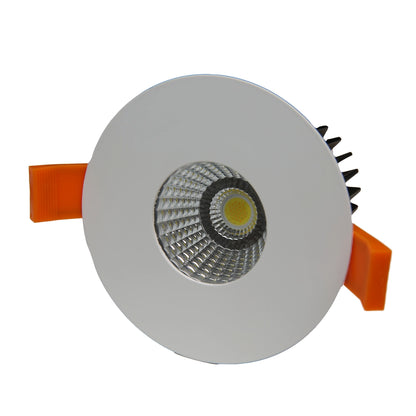

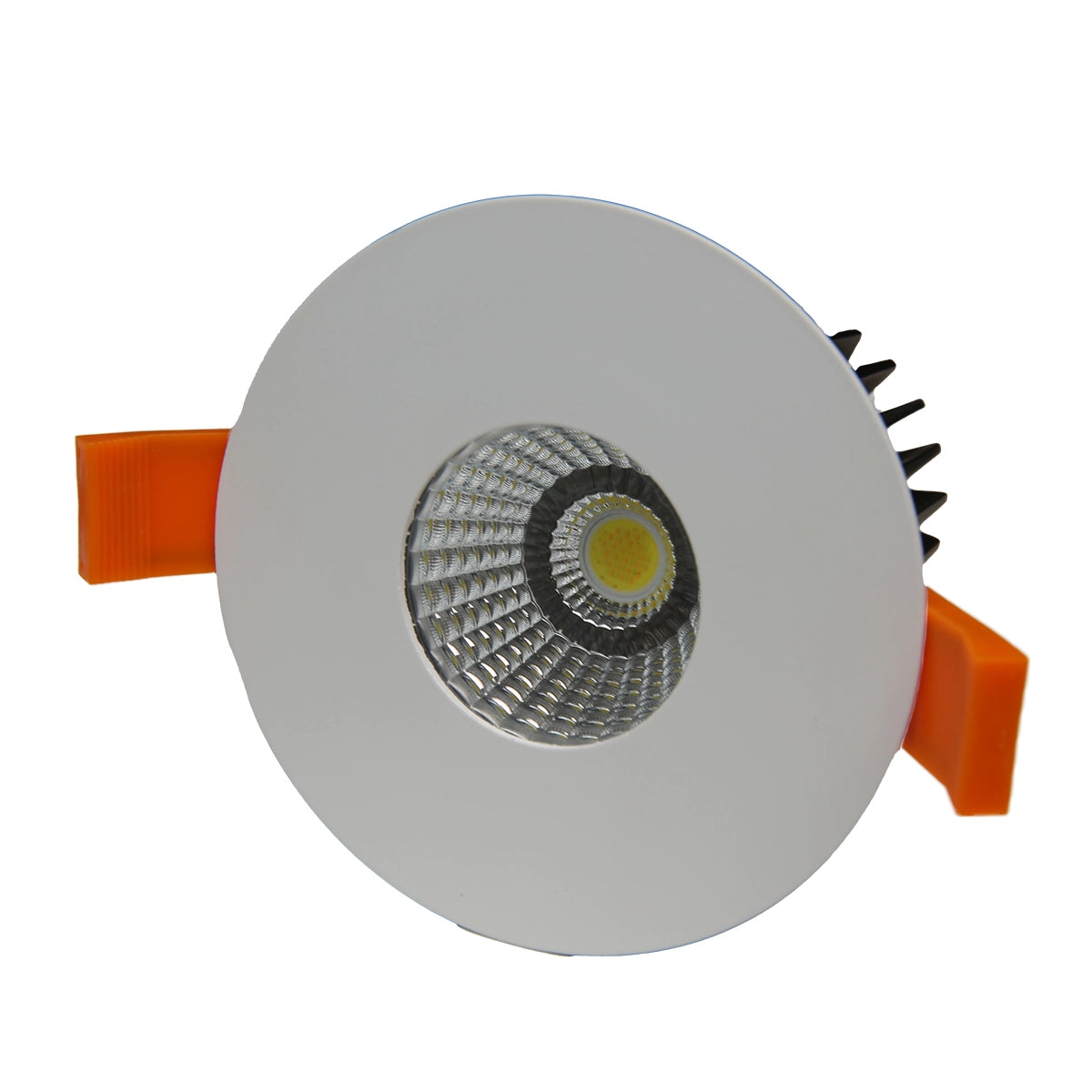

The price is for the surface mount trim only. The light is shown for illustration purposes only.
