WHITE & CLEAR

Fitting Colour

20

IP Rating

89-90 mm

Cut Out

RECESS

Mounting

100 mm

Face Size

2 YEARS

warranty
Skip to product information
1 of 13

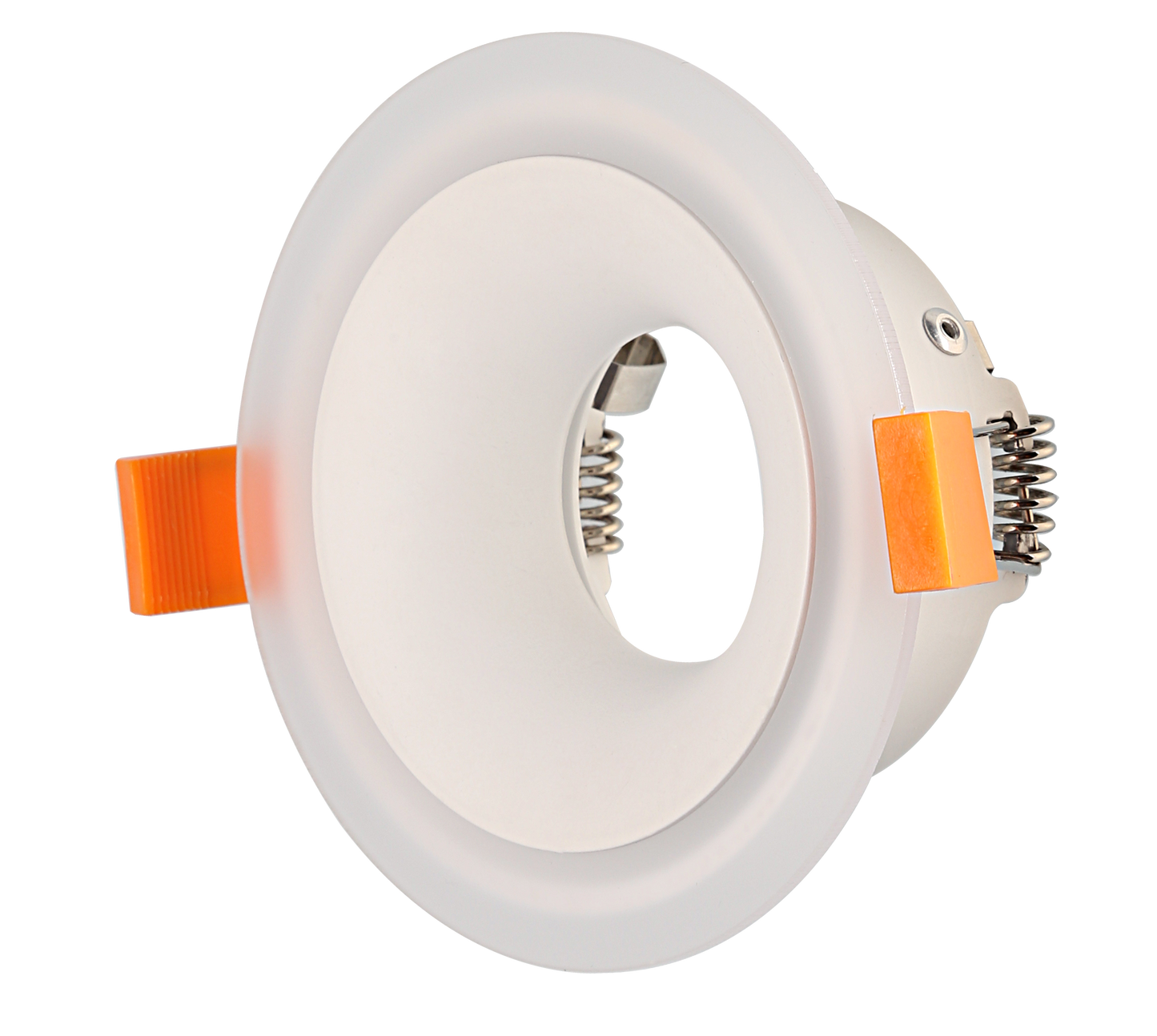

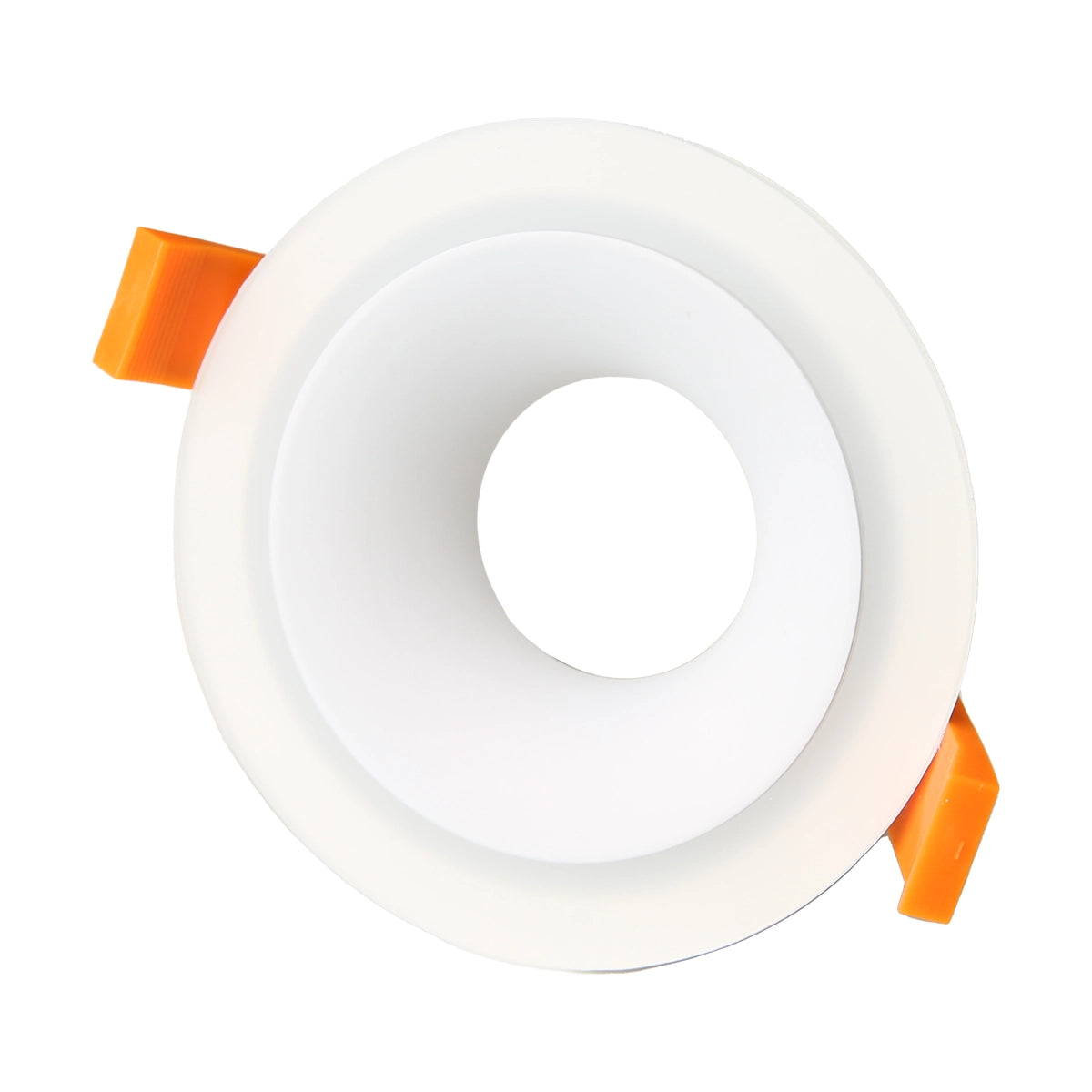

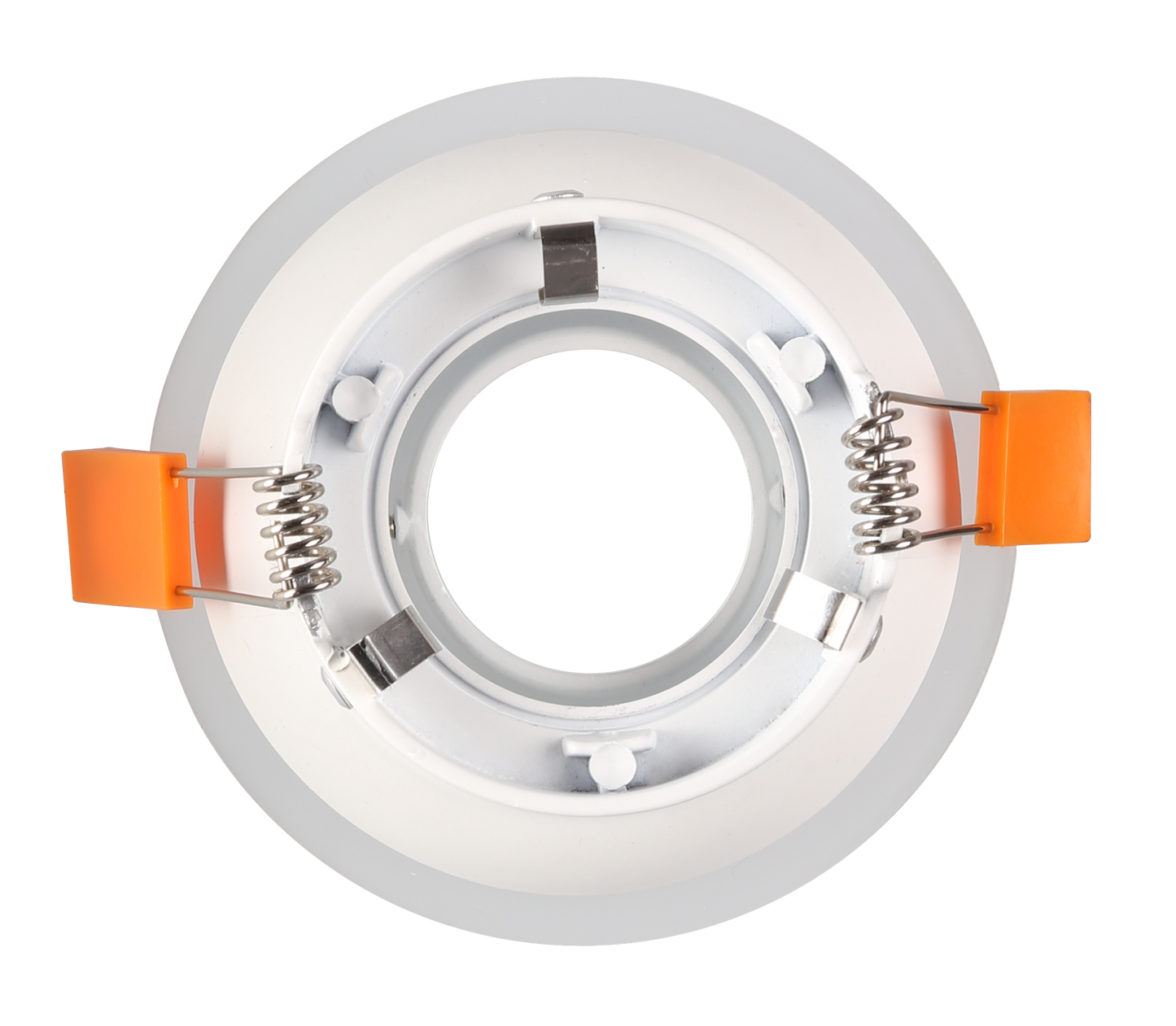

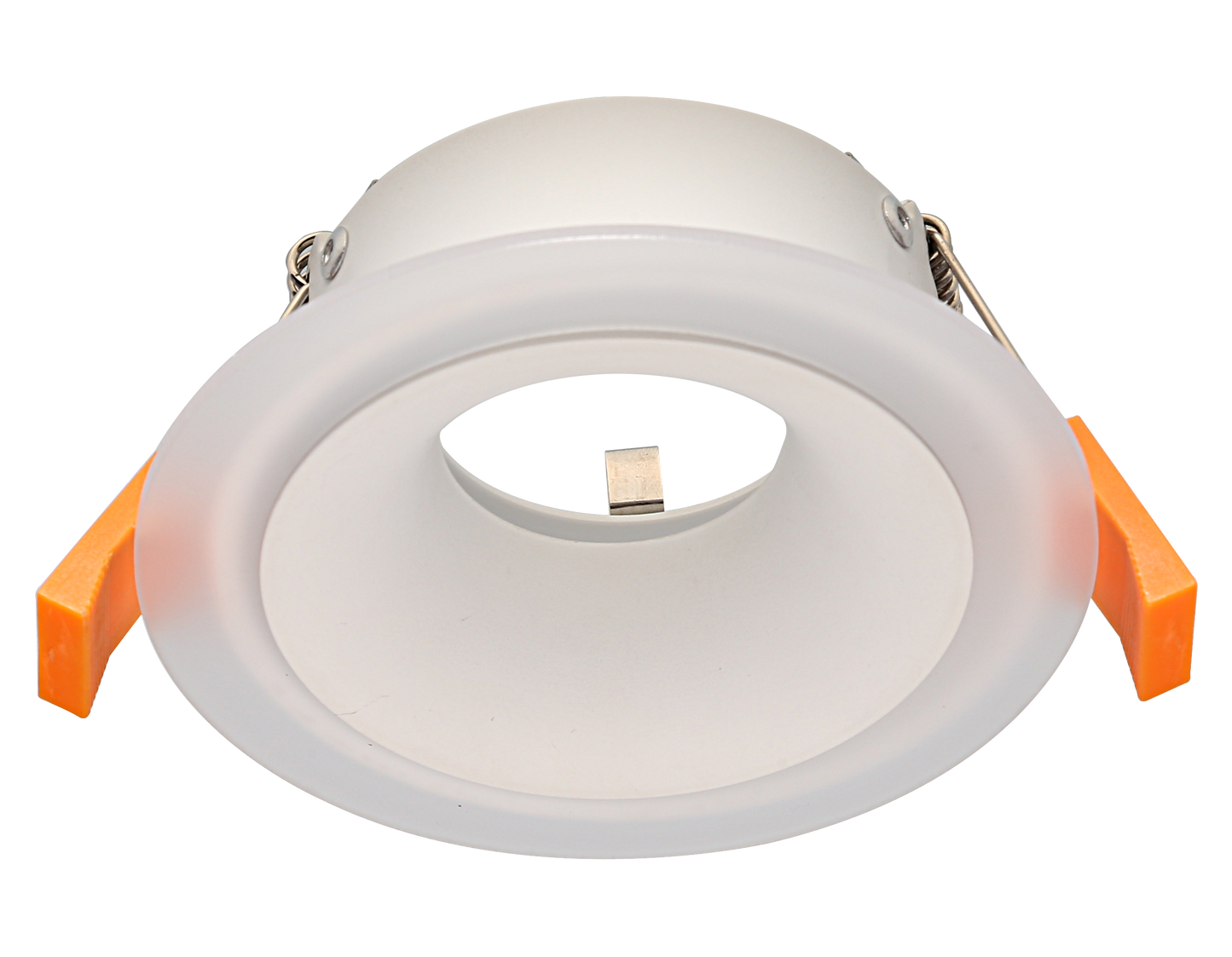

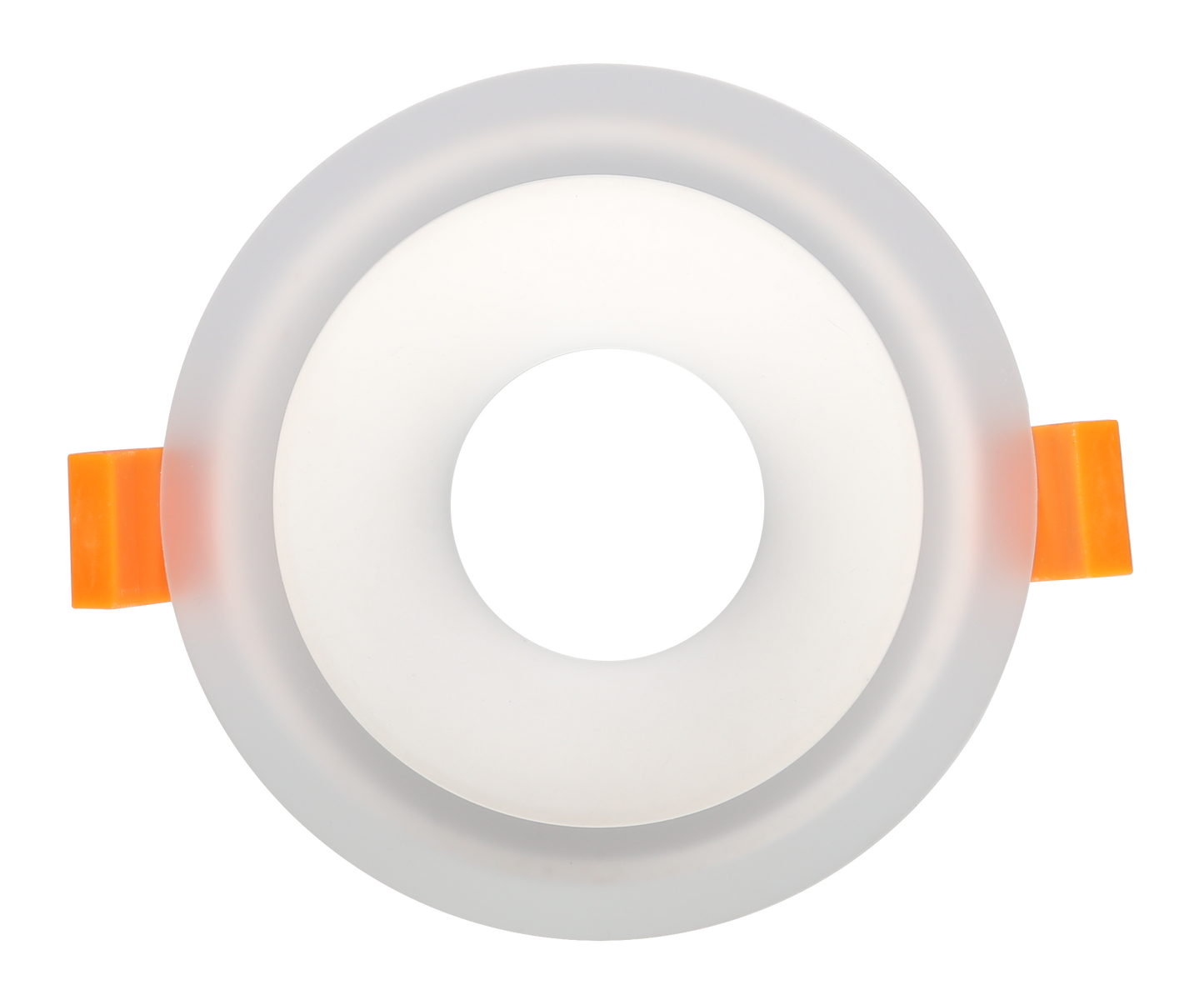

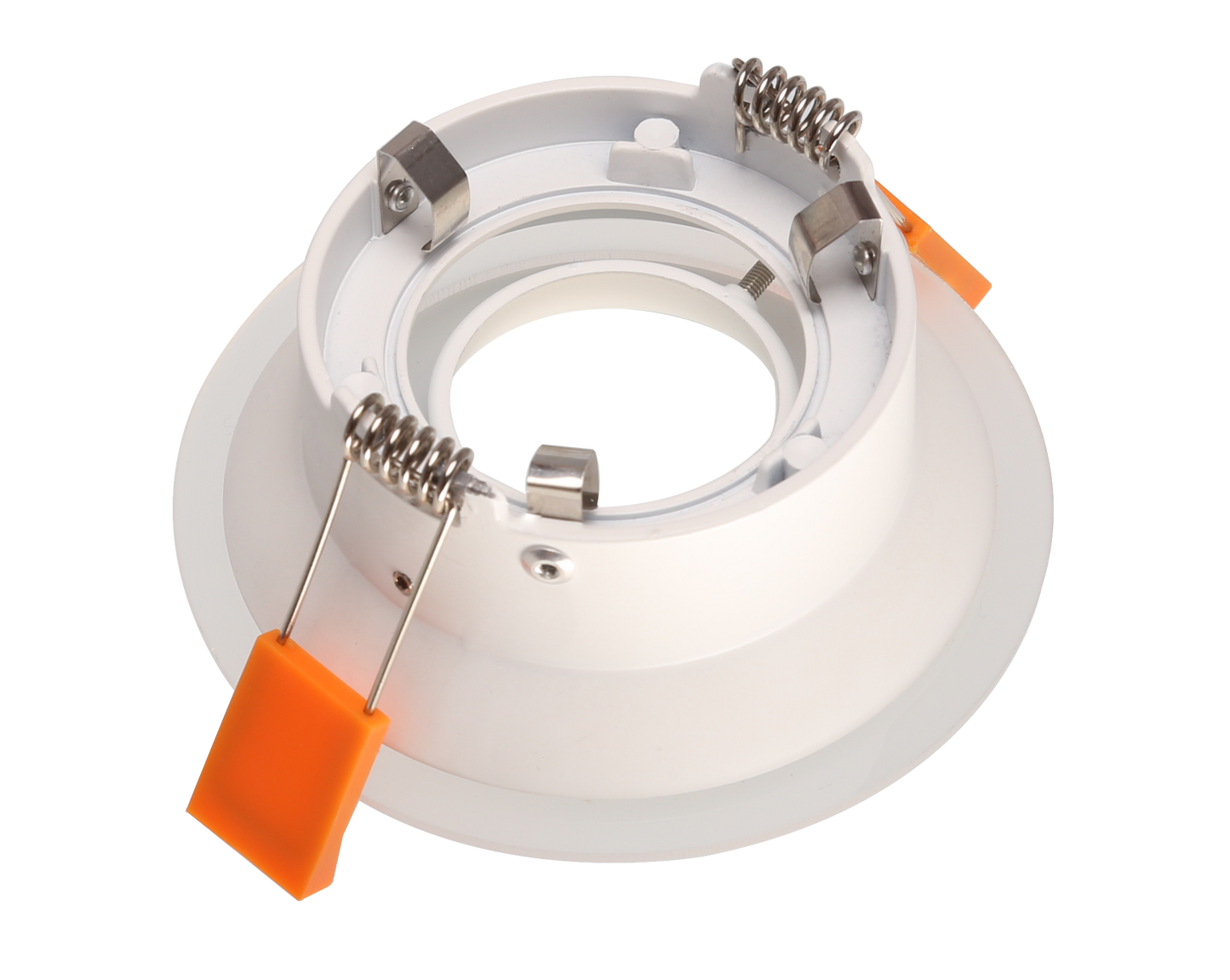

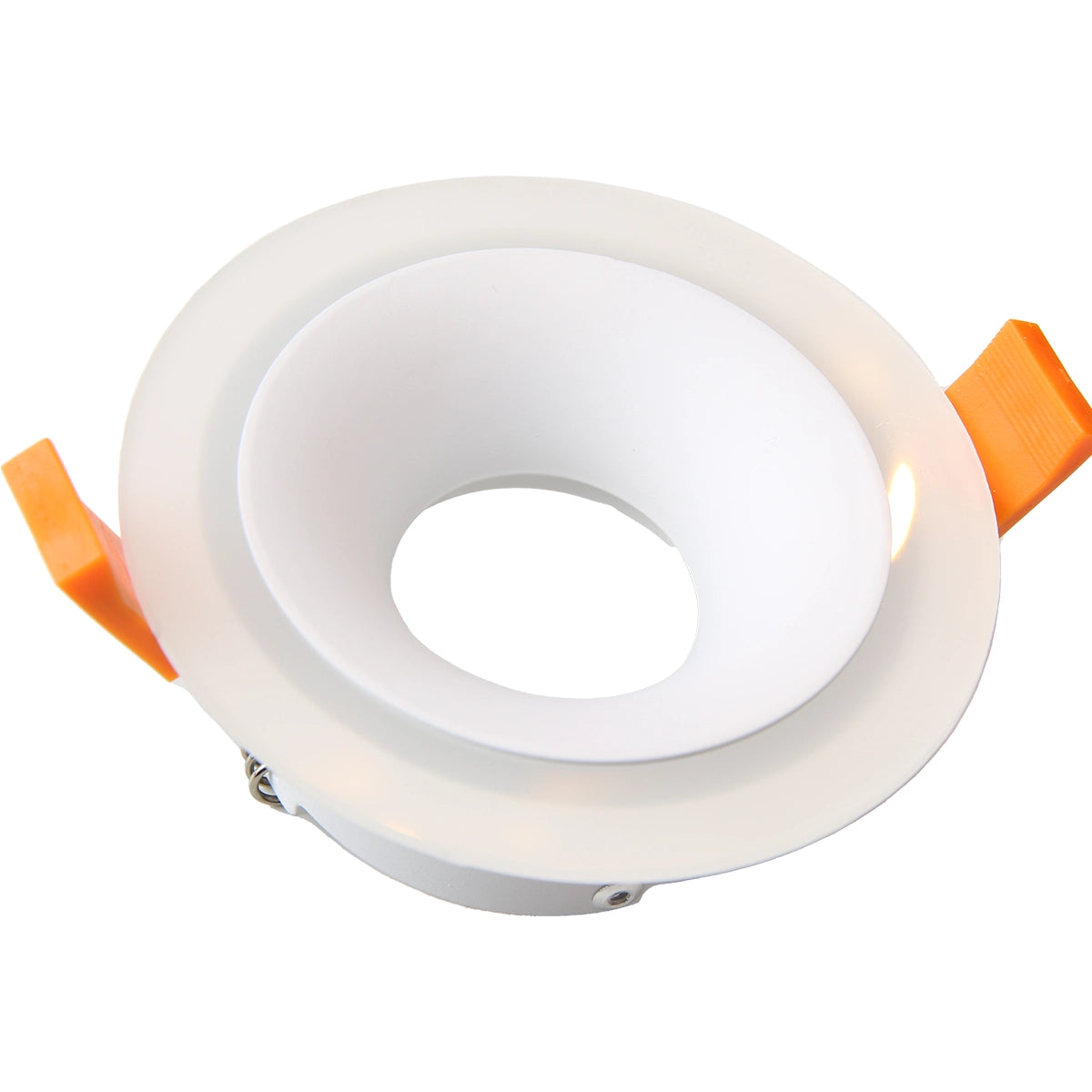

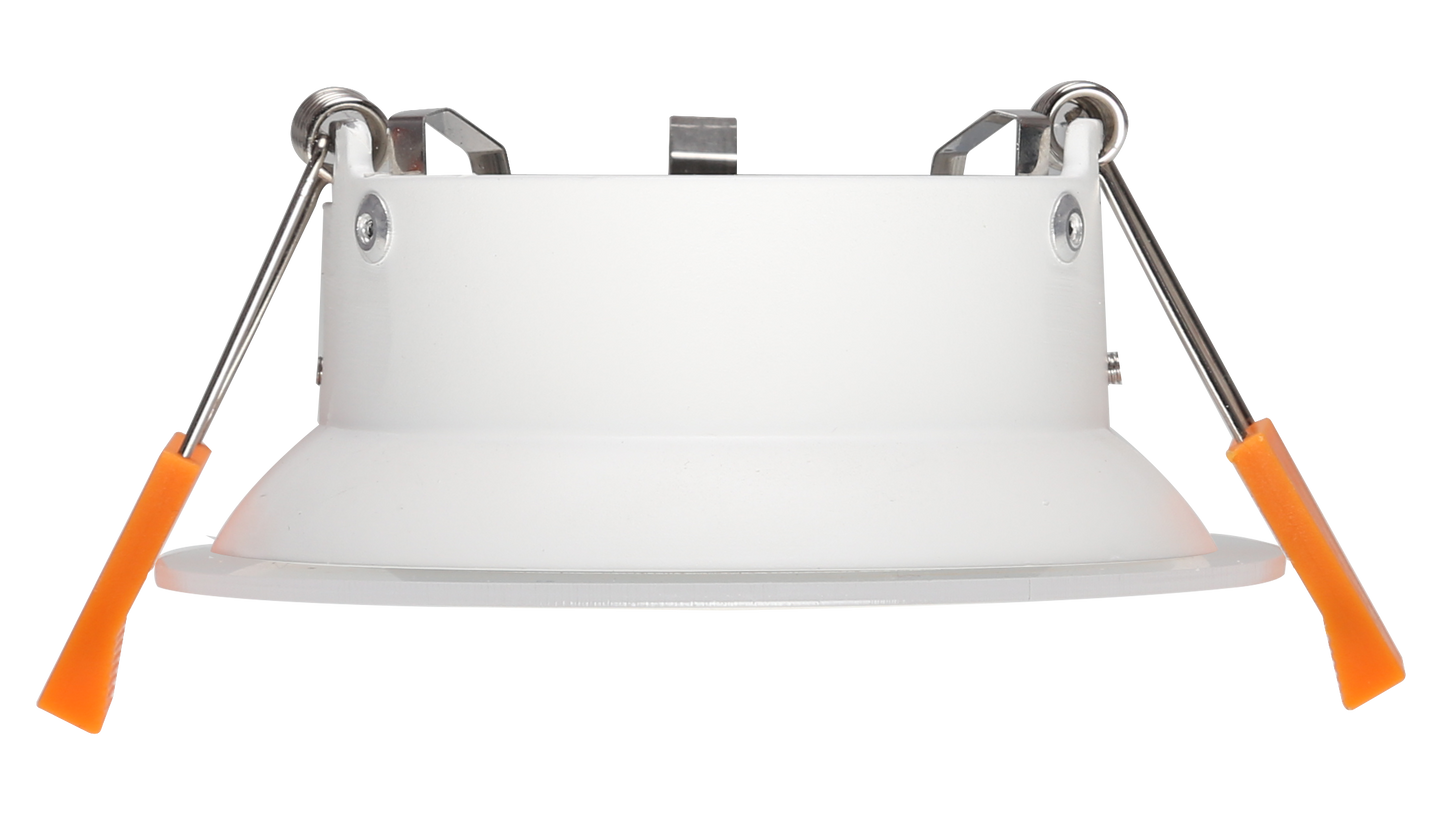

RF12 White- Round fixed IP20 surface mount trim with perspex halo ring for X Series COB Modules

RF12 White- Round fixed IP20 surface mount trim with perspex halo ring for X Series COB Modules

42 in stock

SKU:RF12 White

Regular price $16.00 AUD
Regular price $21.00 AUD Sale price $16.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

IP20, Surface mount ring for X3A, X15A, X20A,XRGBW and XCCT modular COB down light modules

Choose this trim if

a. very unique and rare finish on your down lights. This ring forms a round halo on your down light trim. You are not going to walk into many places with this kind of light fitting.

b. Low glare as the light module sits a fair distance in the ceiling.

Do not choose this trim if

a. You are replacing existing lights and the cut out size is large than 90 mm

b. you are using this fitting in high moisture areas i.e. external eves or shower rooms. This fitting does not have glass to increase the moisture protection of the light module from IP20 to IP44. Using this fitting in high moisture areas will expose the light module to moisture which will result in light failure.

c. Although we love this fitting, it may not be everyone's cup of tea.

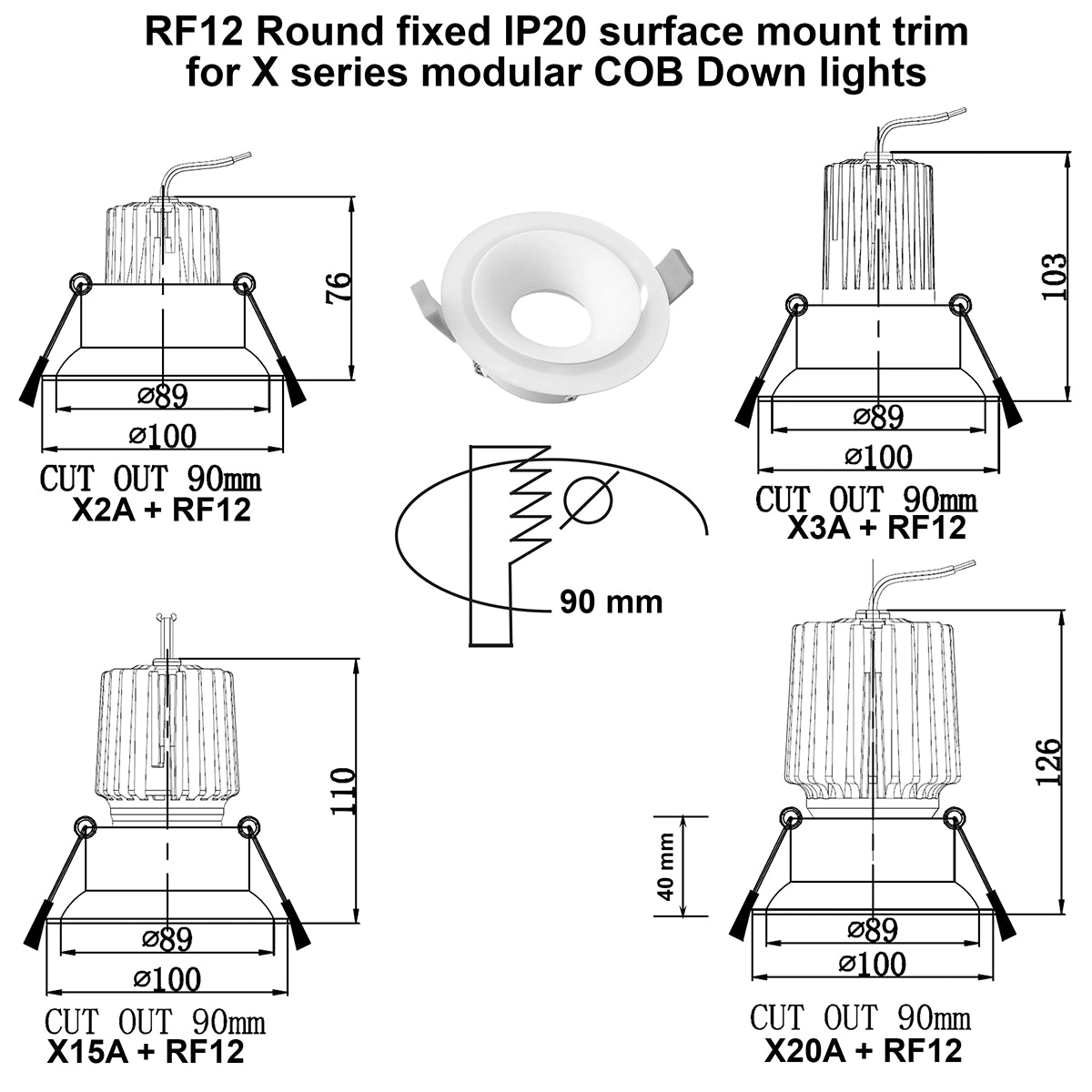

Cut out

89-90 mm

Diameter of face

100 mm

Total height of fitting

42 mm

Mounting depth with X3A

103 mm

Mounting depth with X15A

110 mm

Mounting depth with X20A

126 mm

Mounting depth with XRGBW

103 mm

Mounting depth with XCCT

88 mm


Click here to download a pdf spec sheet for RF12 round fix IP20 trim.

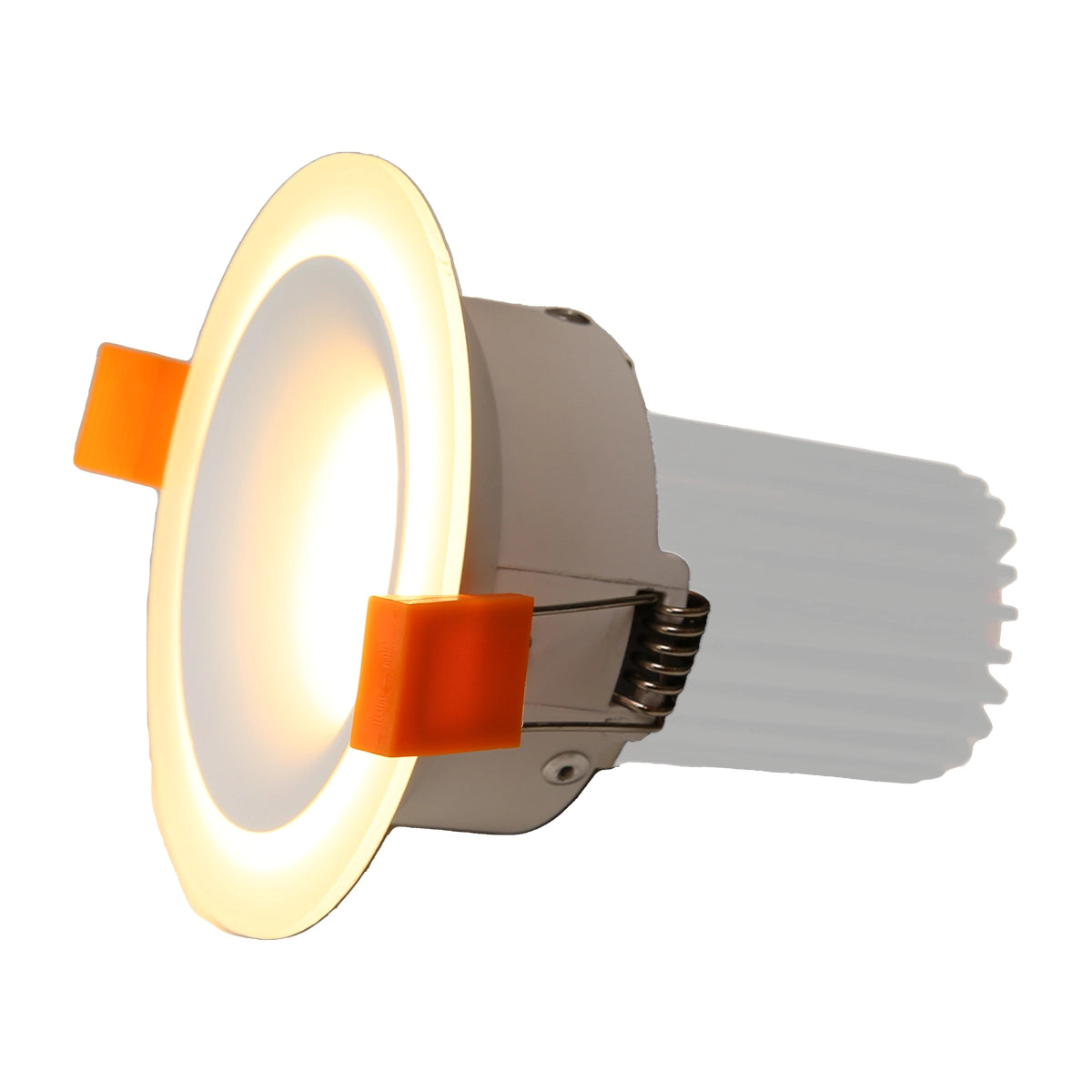

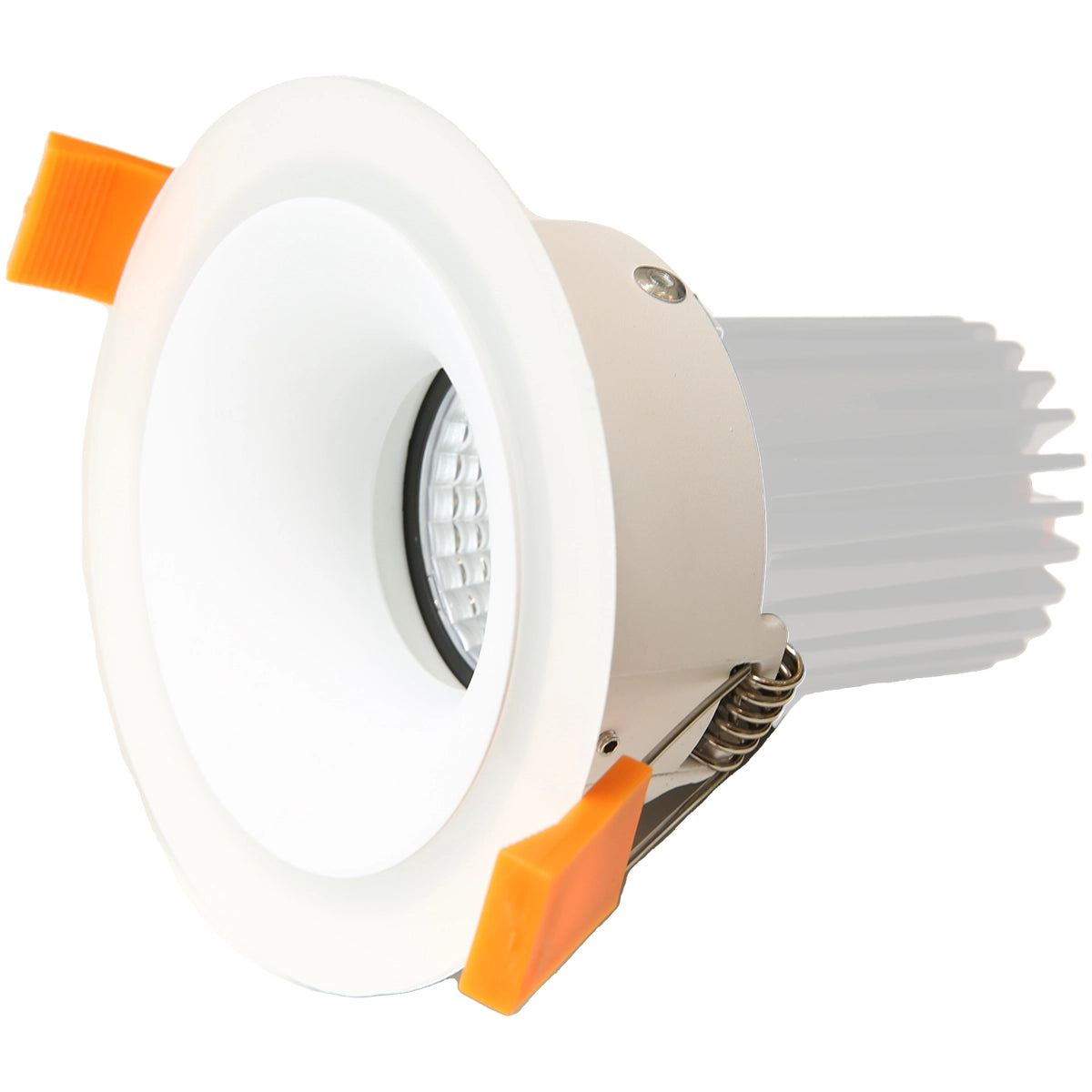

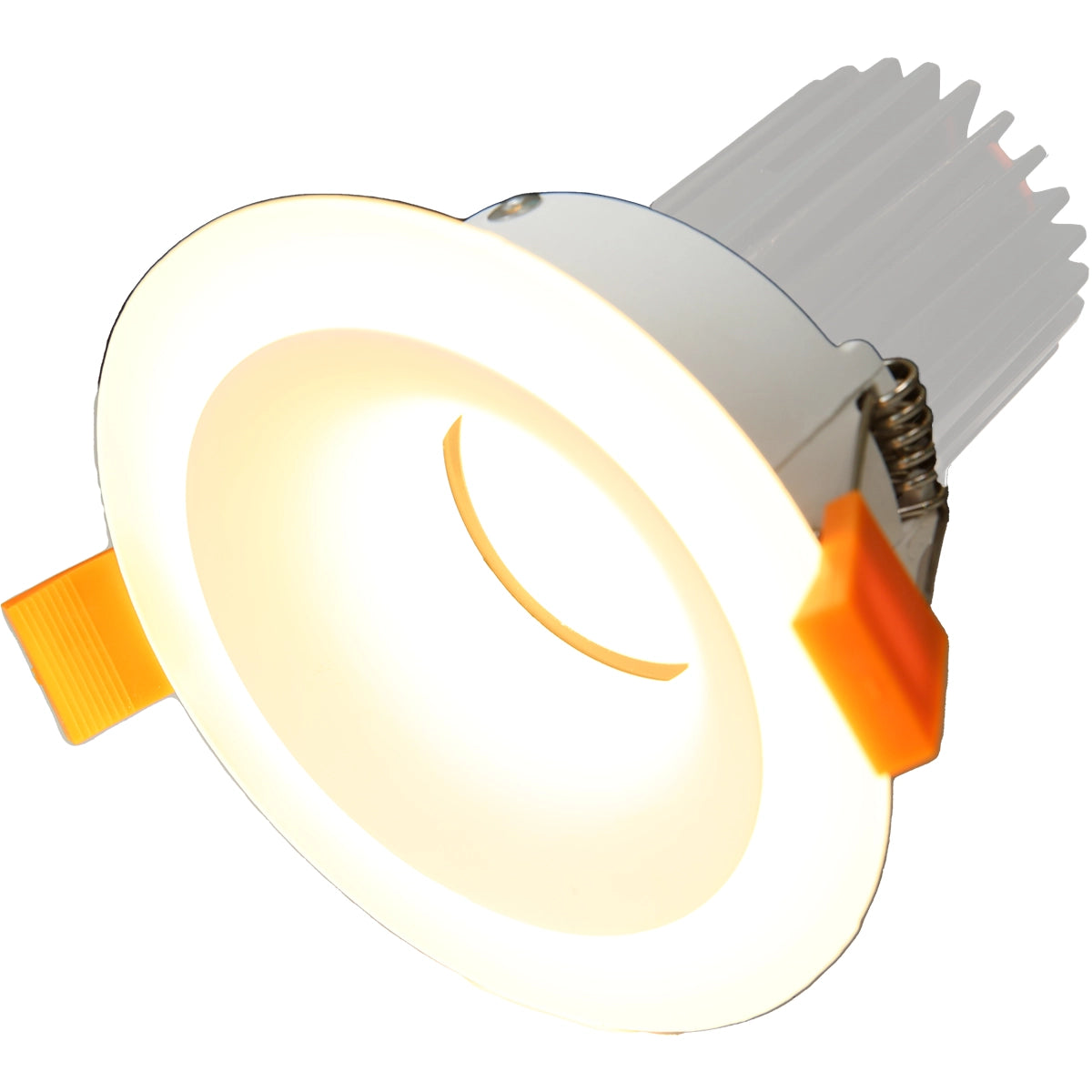

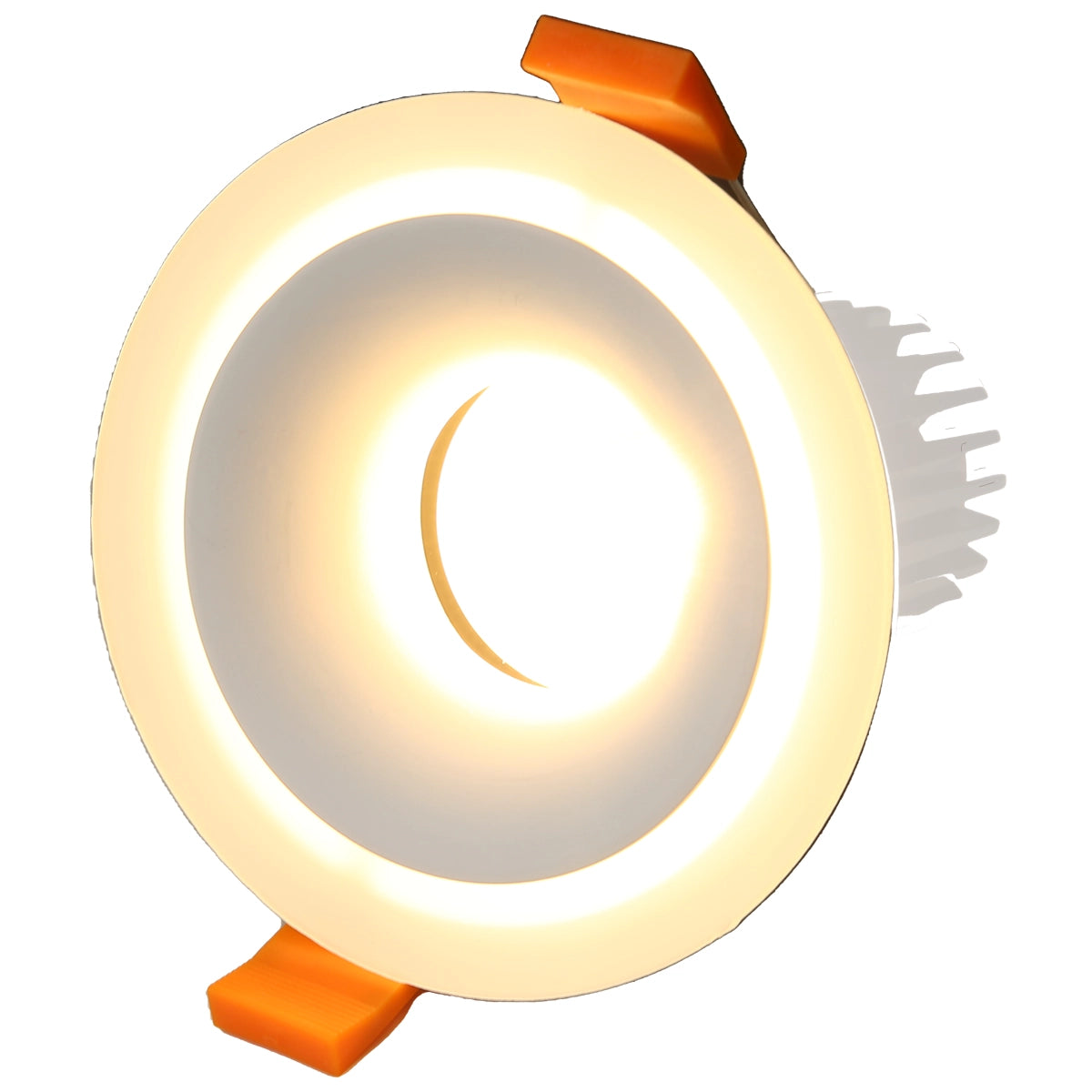

The price is for the surface mount trim only. The light is shown for illustration purposes only.
View full details
  • 20

  • 89-90 mm

  • RECESS

  • WHITE & CLEAR

  • 100 mm

  • 2 YEARS
