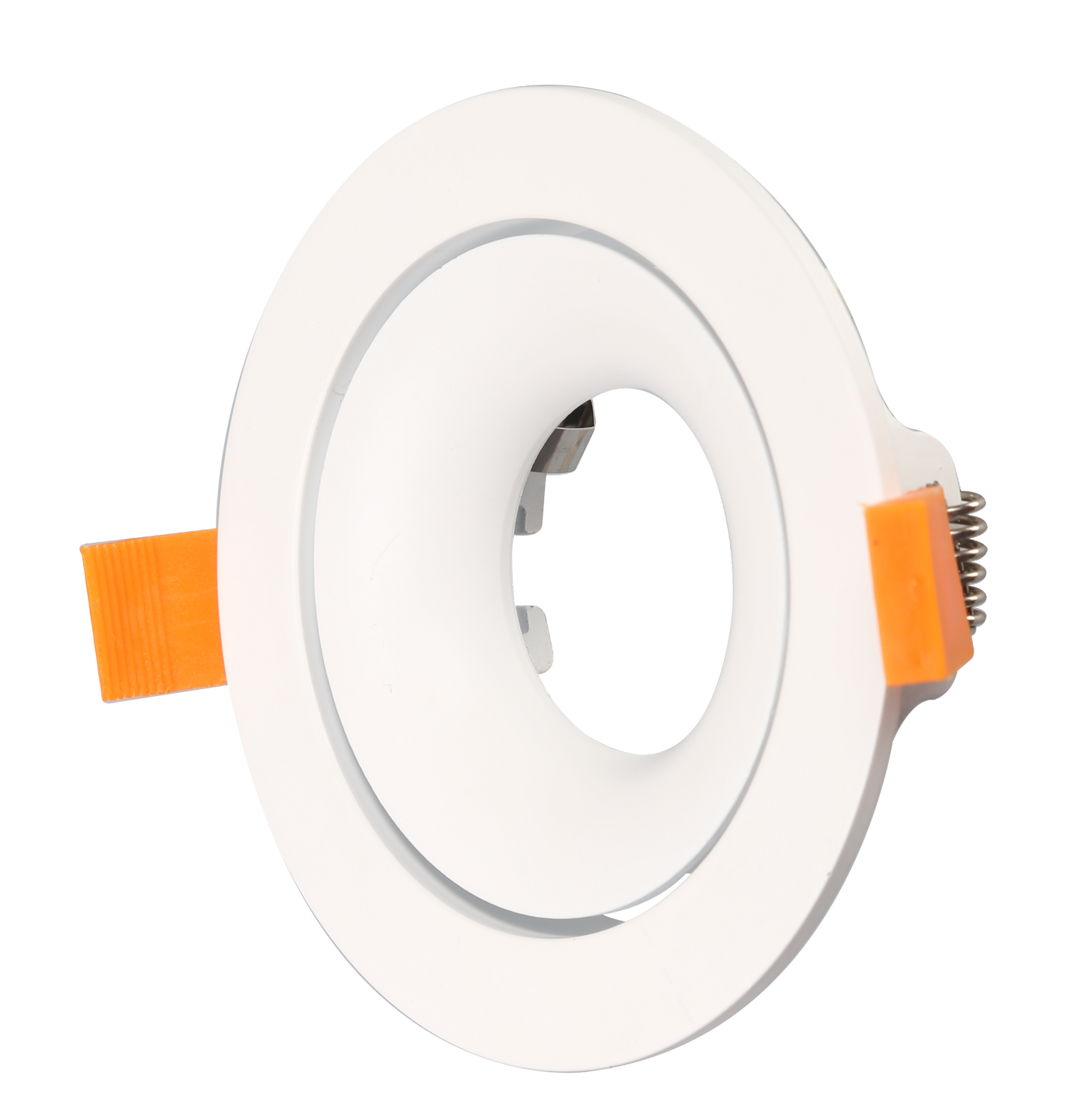

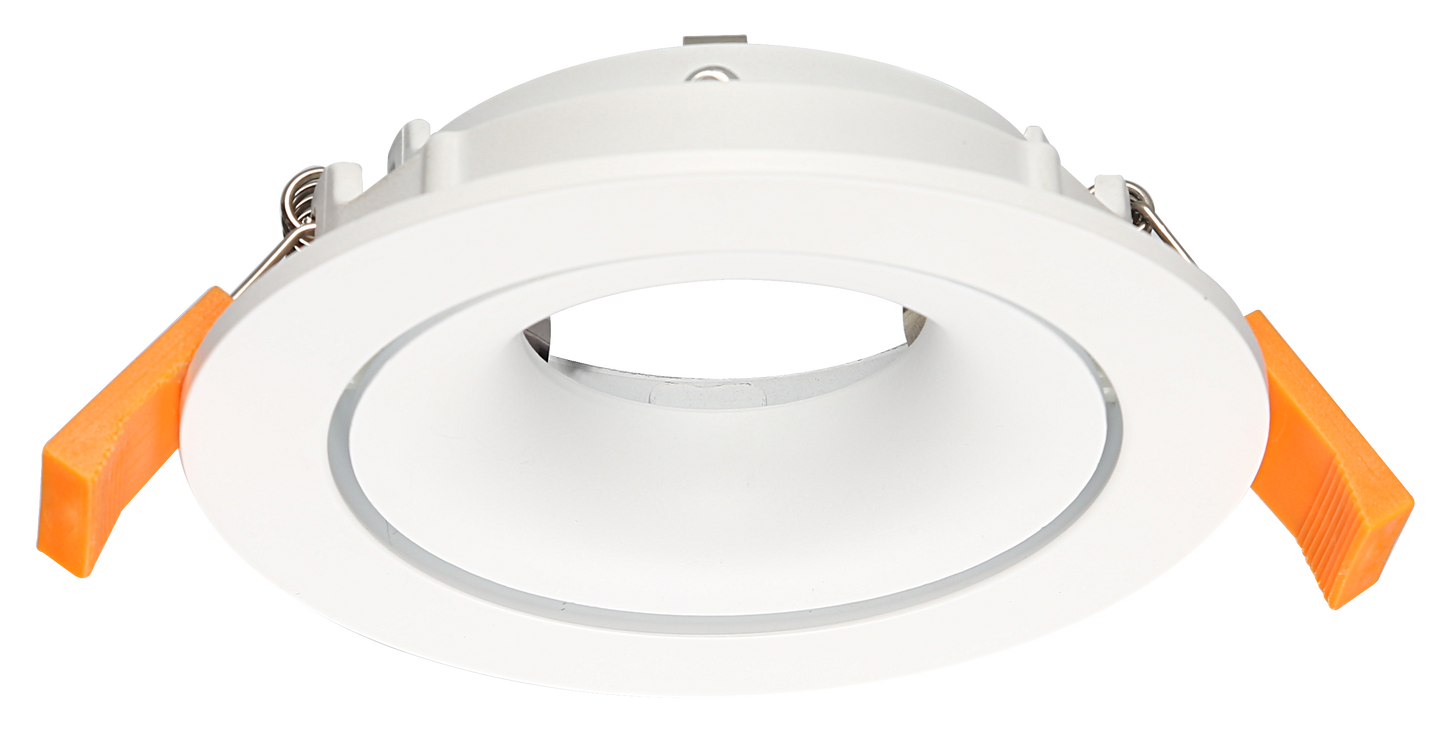

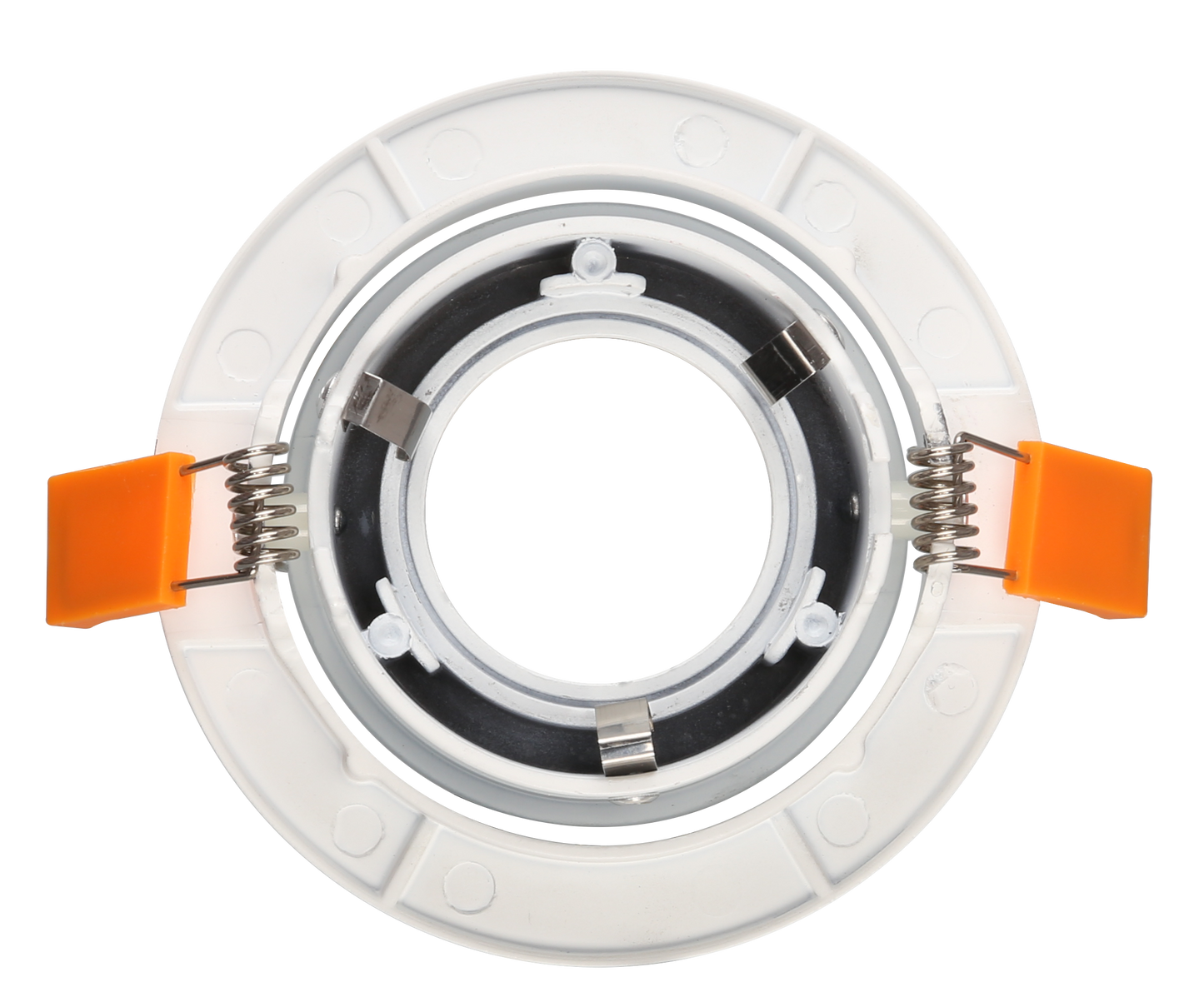

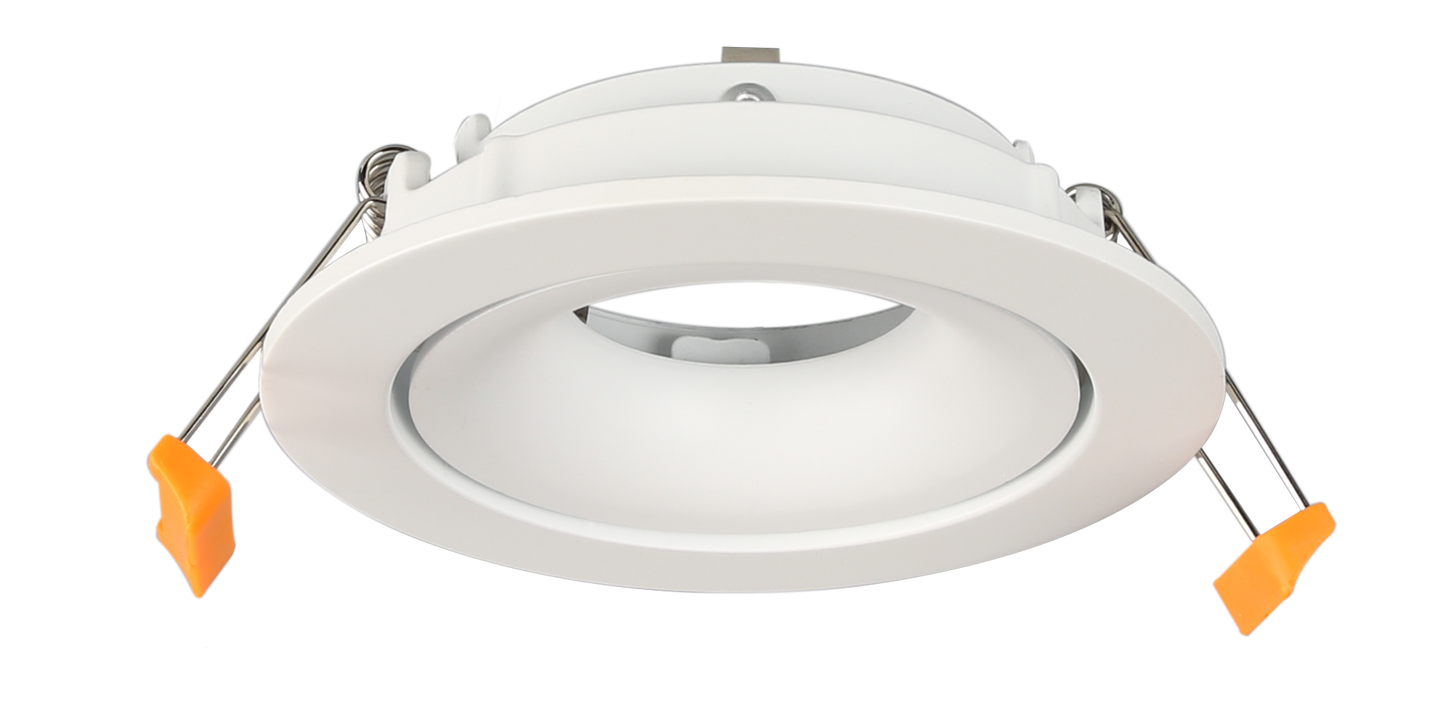

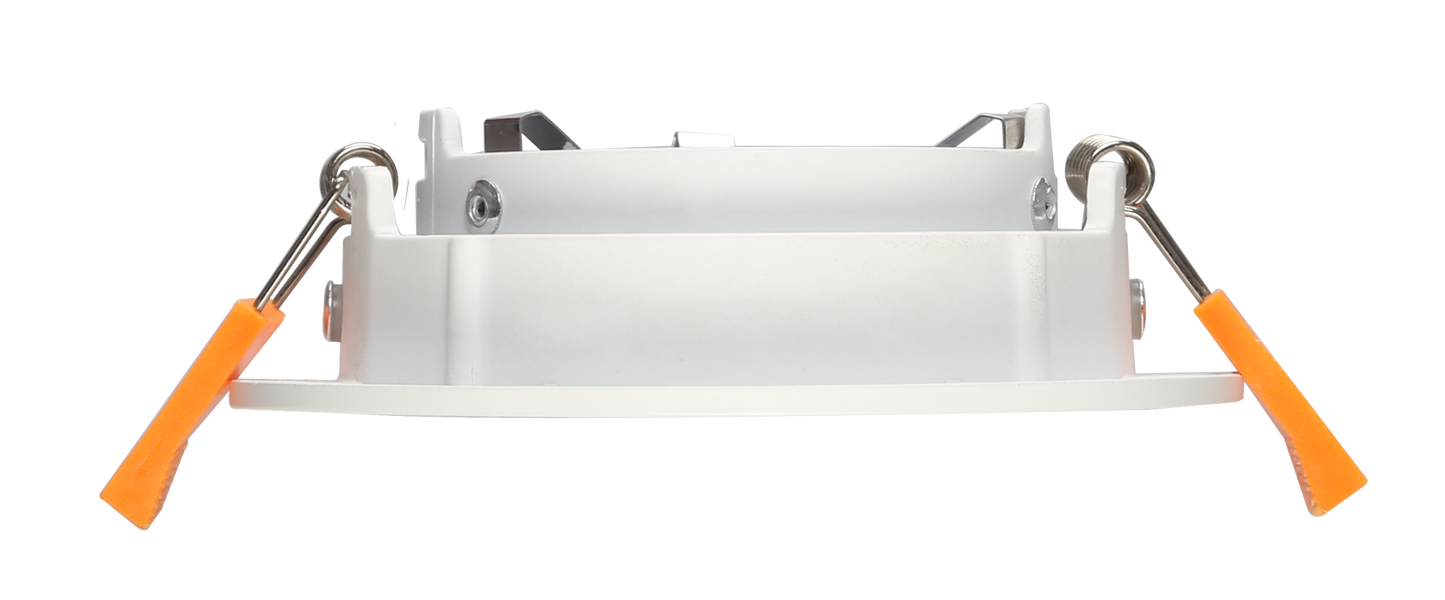

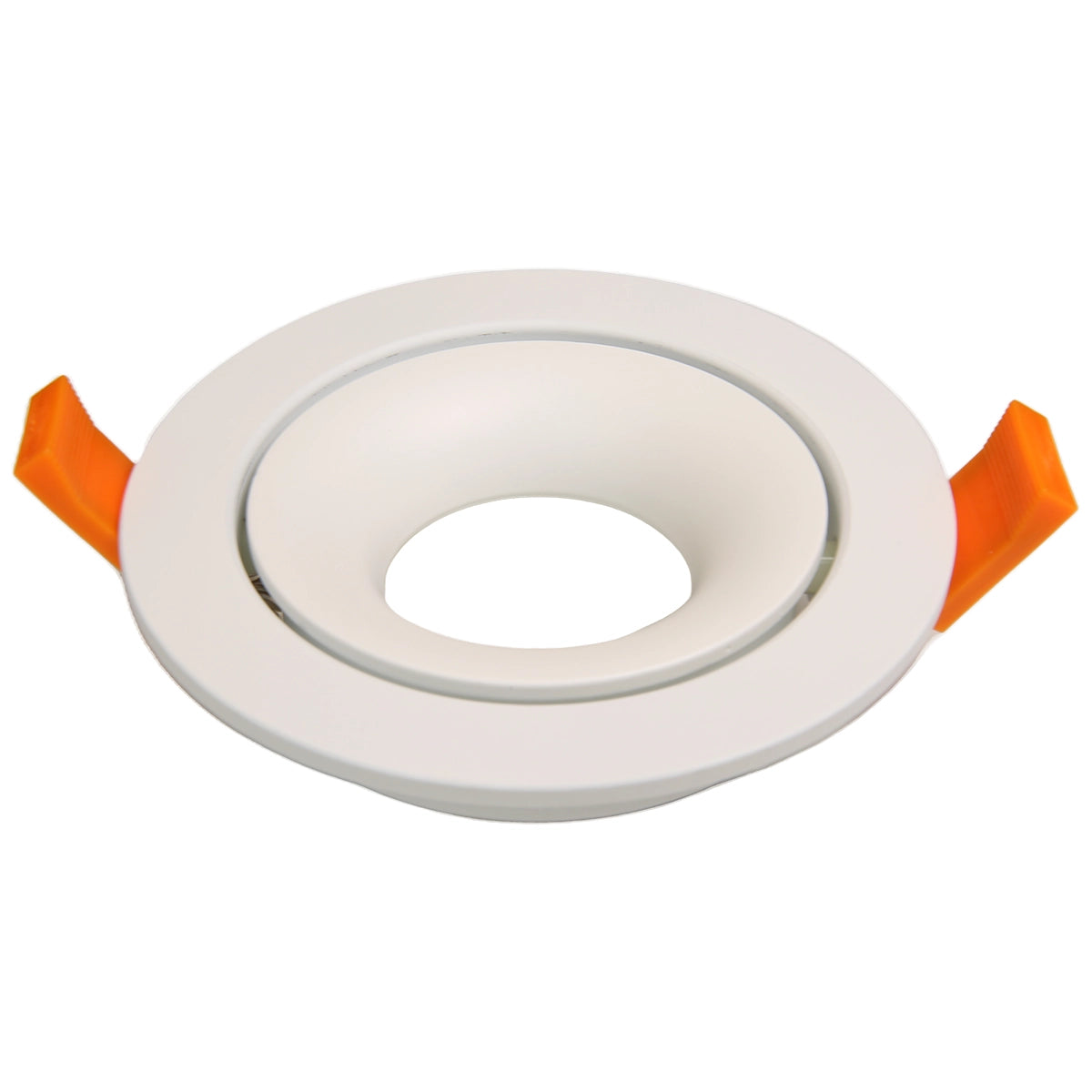

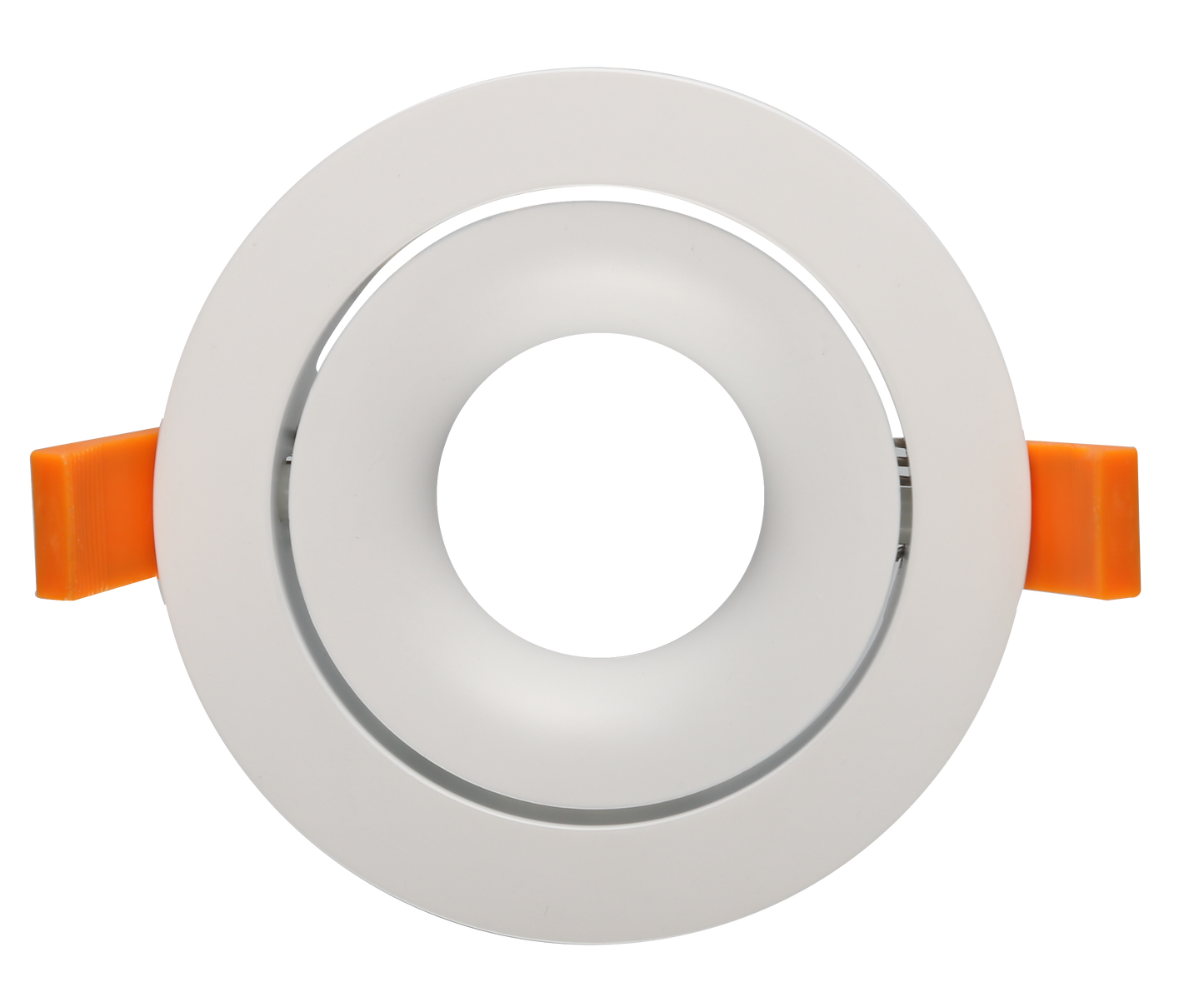

RA6 White- Round adjustable IP20 surface mount trim for X Series COB Modules

RA6 White- Round adjustable IP20 surface mount trim for X Series COB Modules

Out of stock

SKU:RA6 White

Regular price $13.00 AUD
Regular price $17.00 AUD Sale price $13.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

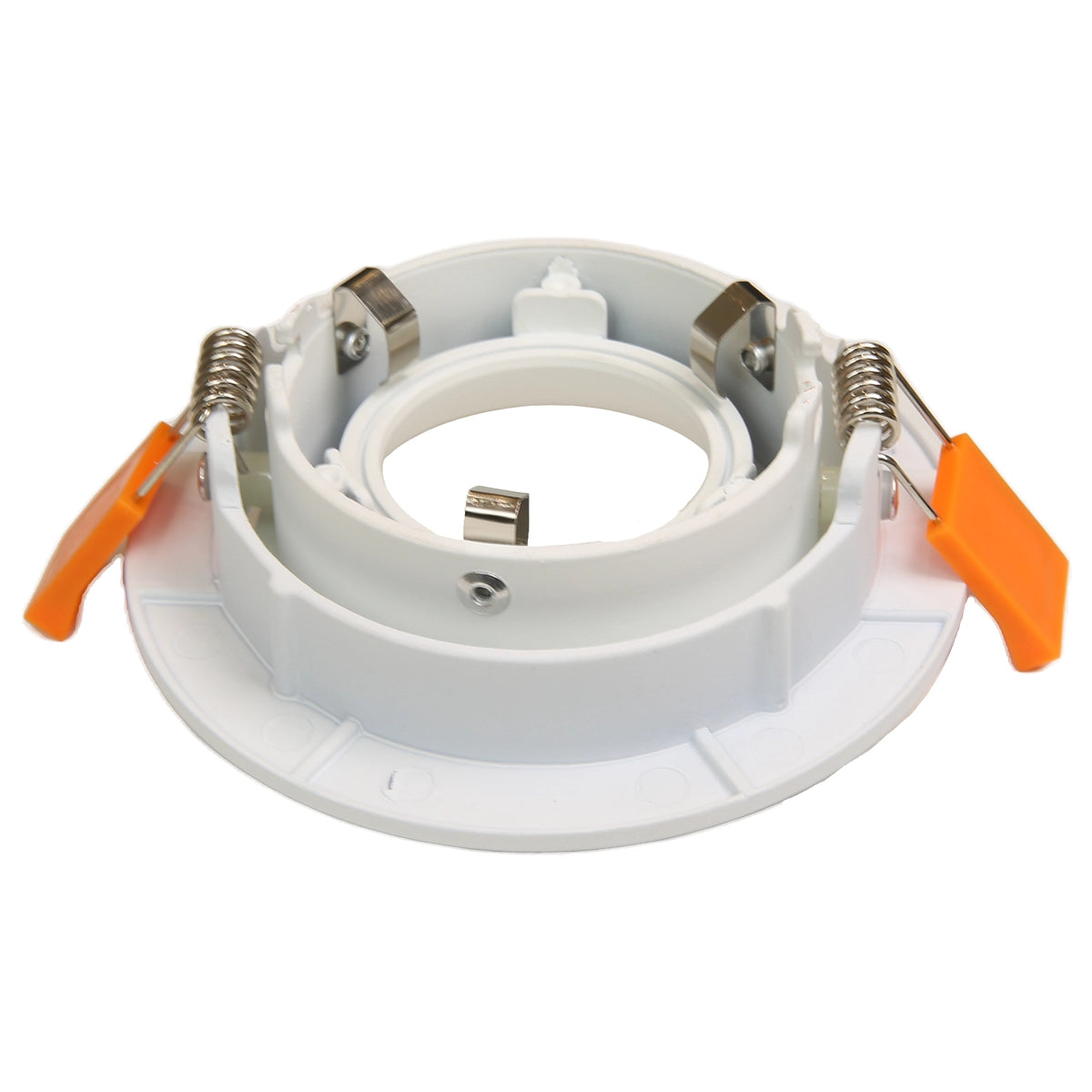

IP20, Adjustable Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.

Choose this trim if

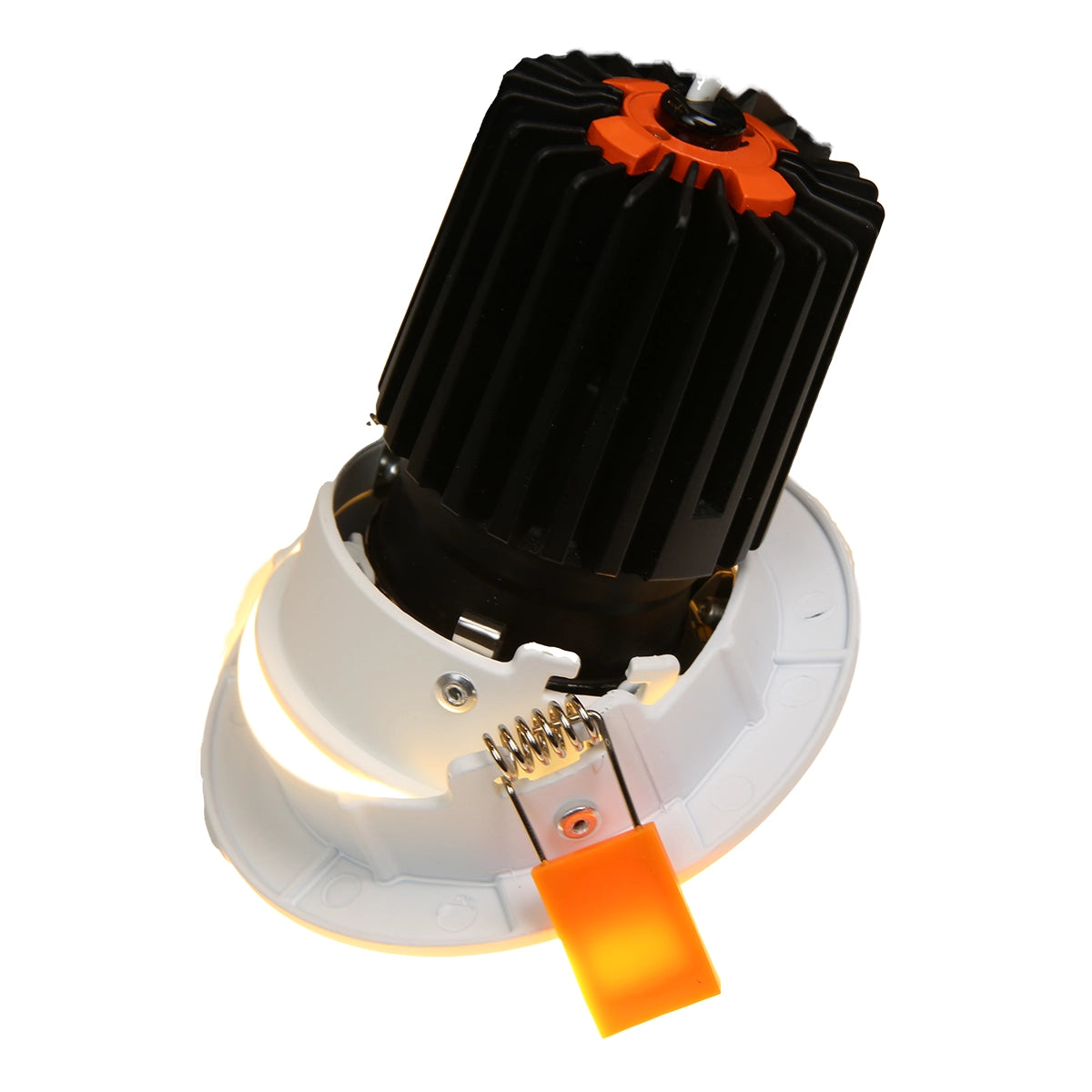

a. when you desire to have replace a fixed light fitting with a gimbal light fitting.

b. when  you desire a low glare rating as the light sits far back in the ceiling.

c. highly recommended when using RF8 in the rest of the project. This ring looks like RF8 is sitting in the middle of an outer gimbal ring.

d. The face size of 105 mm will enable it to cover hole sizes of 92 mm as well.

e. It has the shallowest mounting depth out of all the adjustable mounting trims in our range.

Do not choose this trim if

a. You are replacing existing lights and the cut out size is large than 90 mm

b. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.

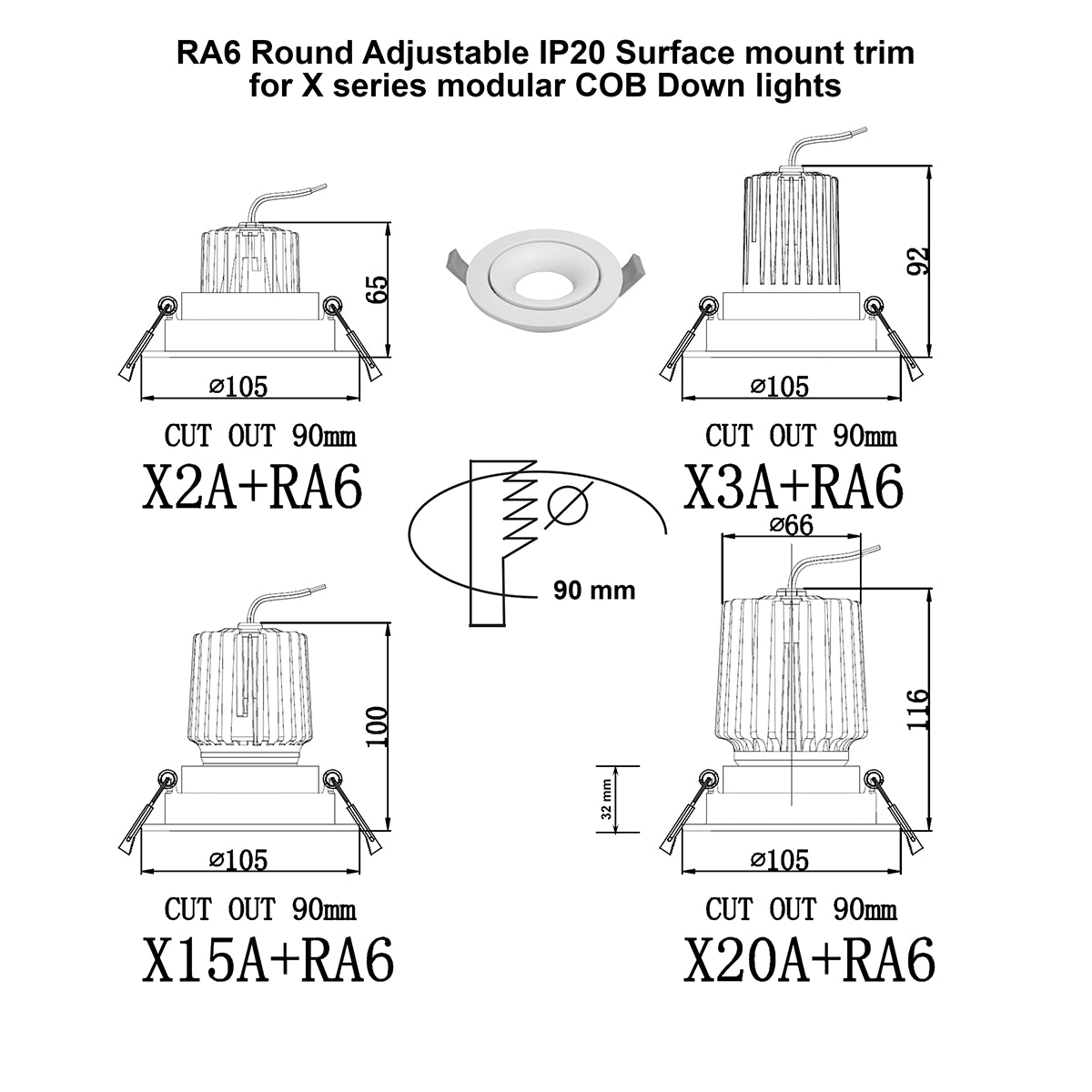

Cut out

89-92 mm

Diameter of face

105 mm

Total height of fitting

32 mm

Mounting depth with X3A

92 mm

Mounting depth with X15A

100 mm

Mounting depth with X20A

116 mm

Mounting depth with XRGBW

92 mm

Mounting depth with XCCT

77 mm

Click here to download a pdf spec sheet for RA6 round adjustable IP20 trim.

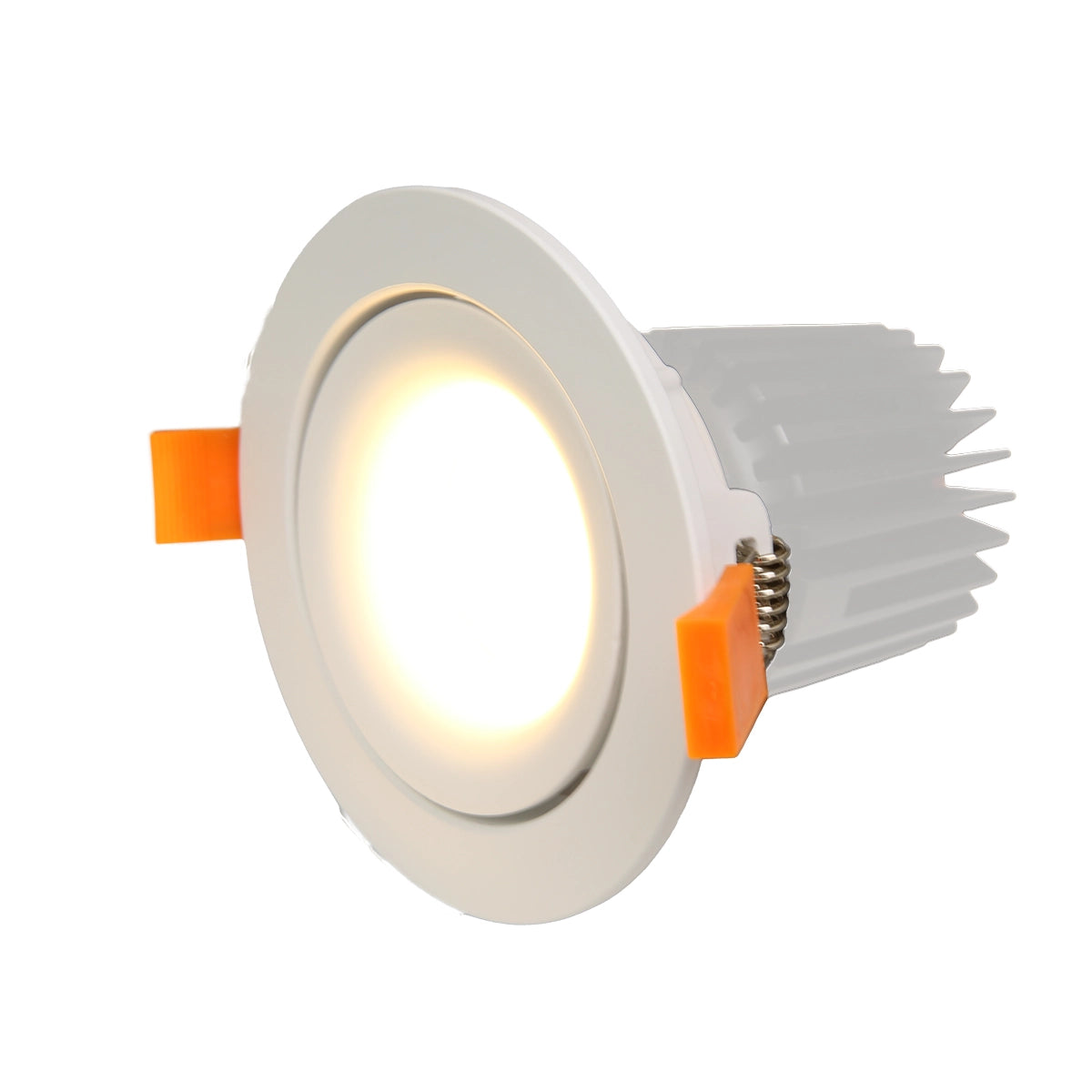

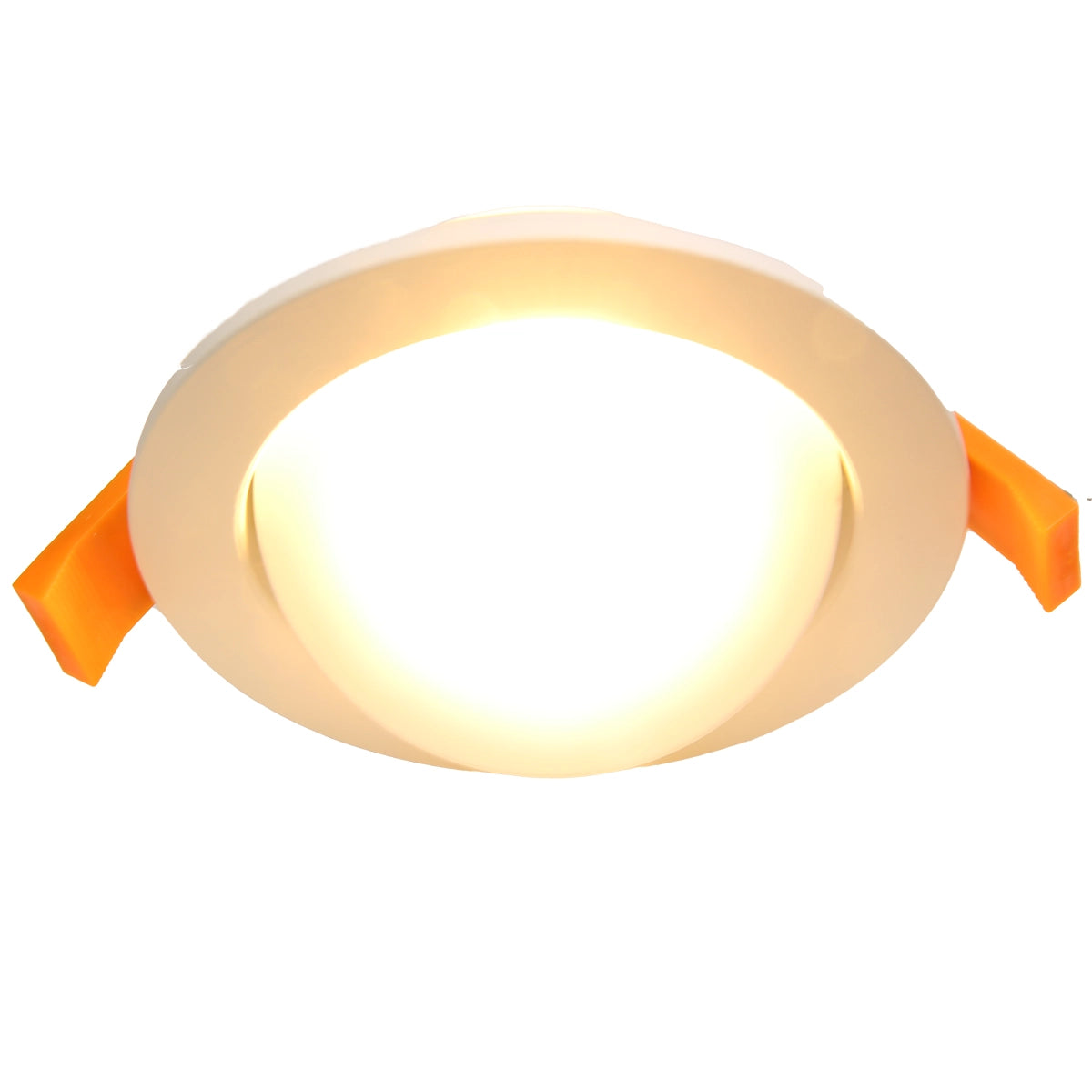

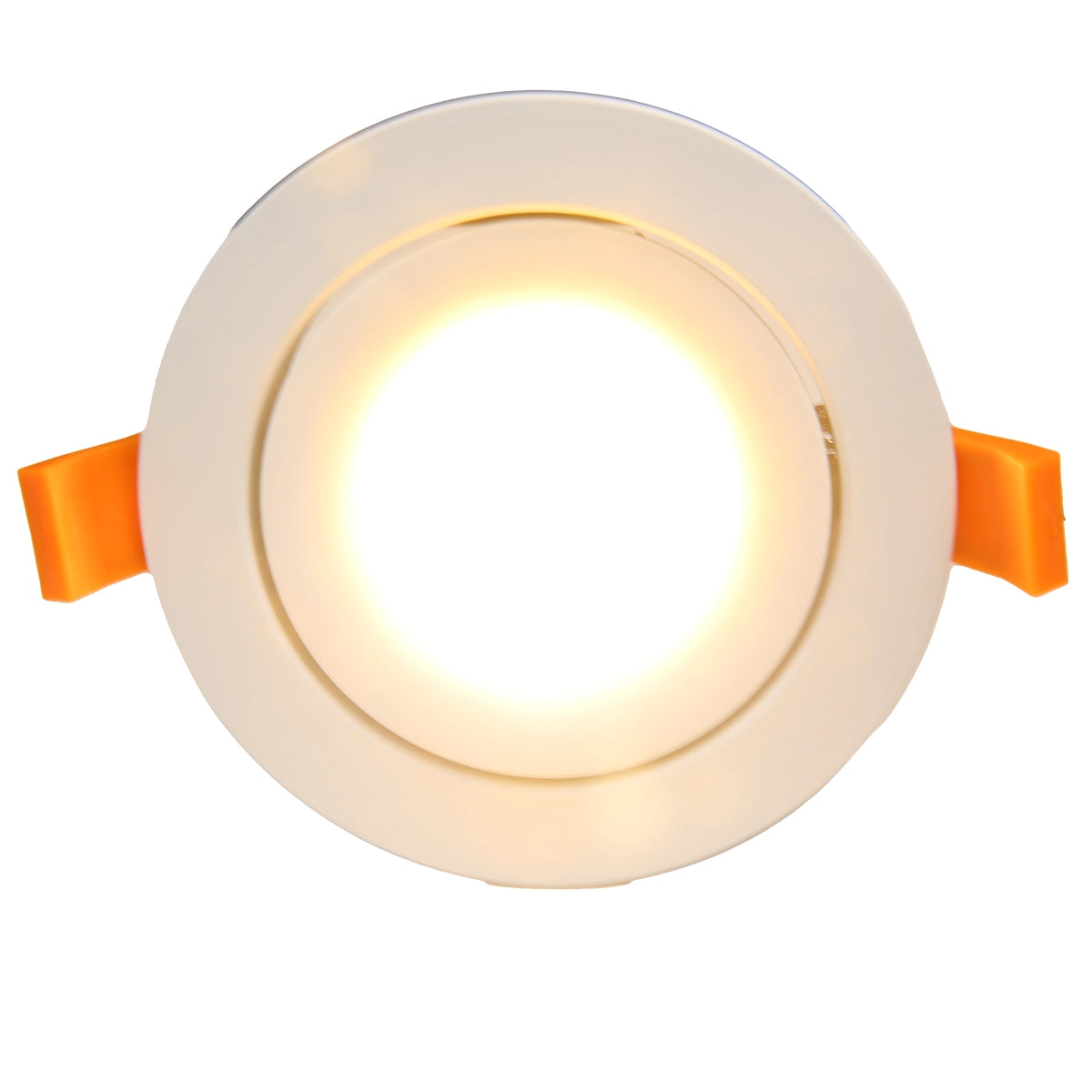

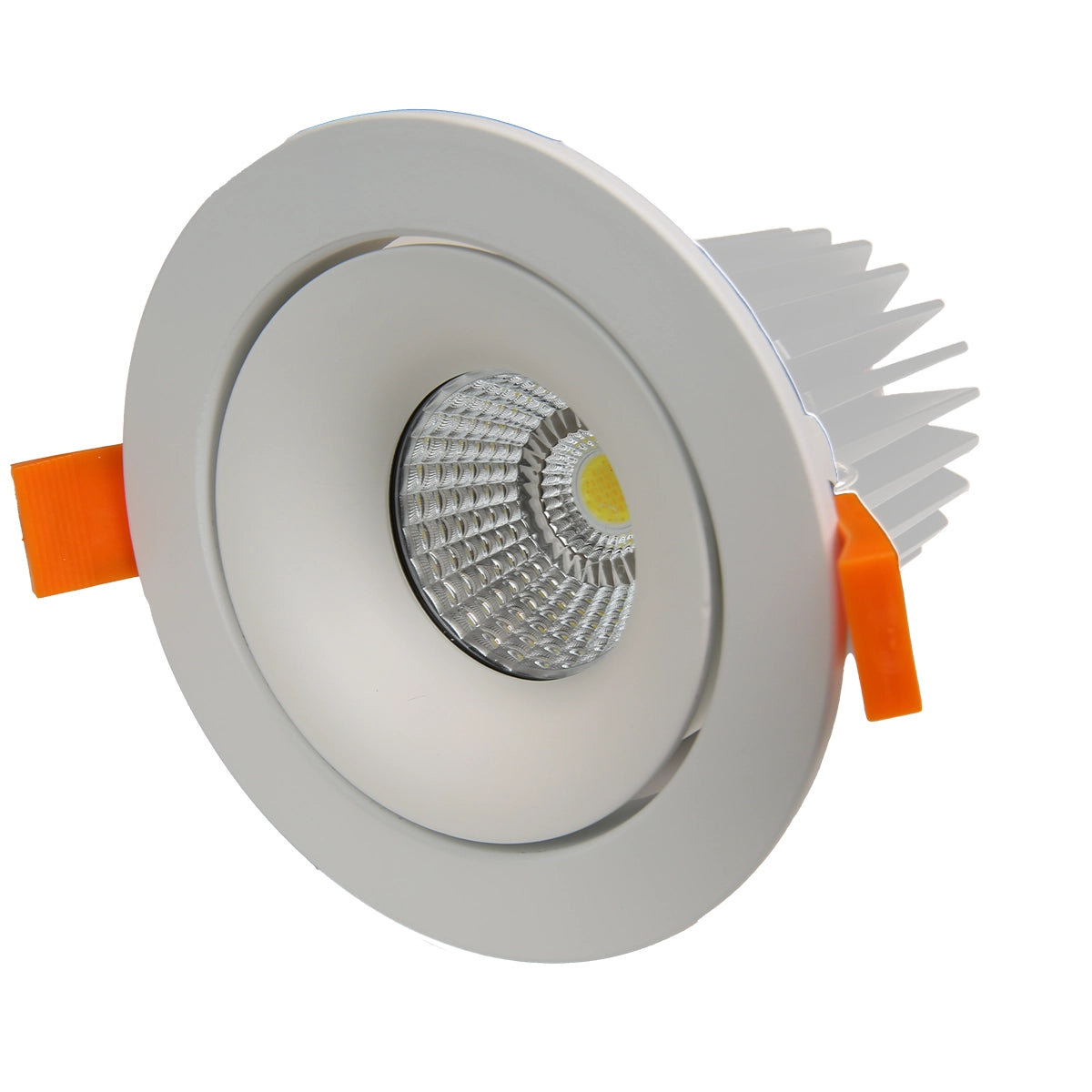

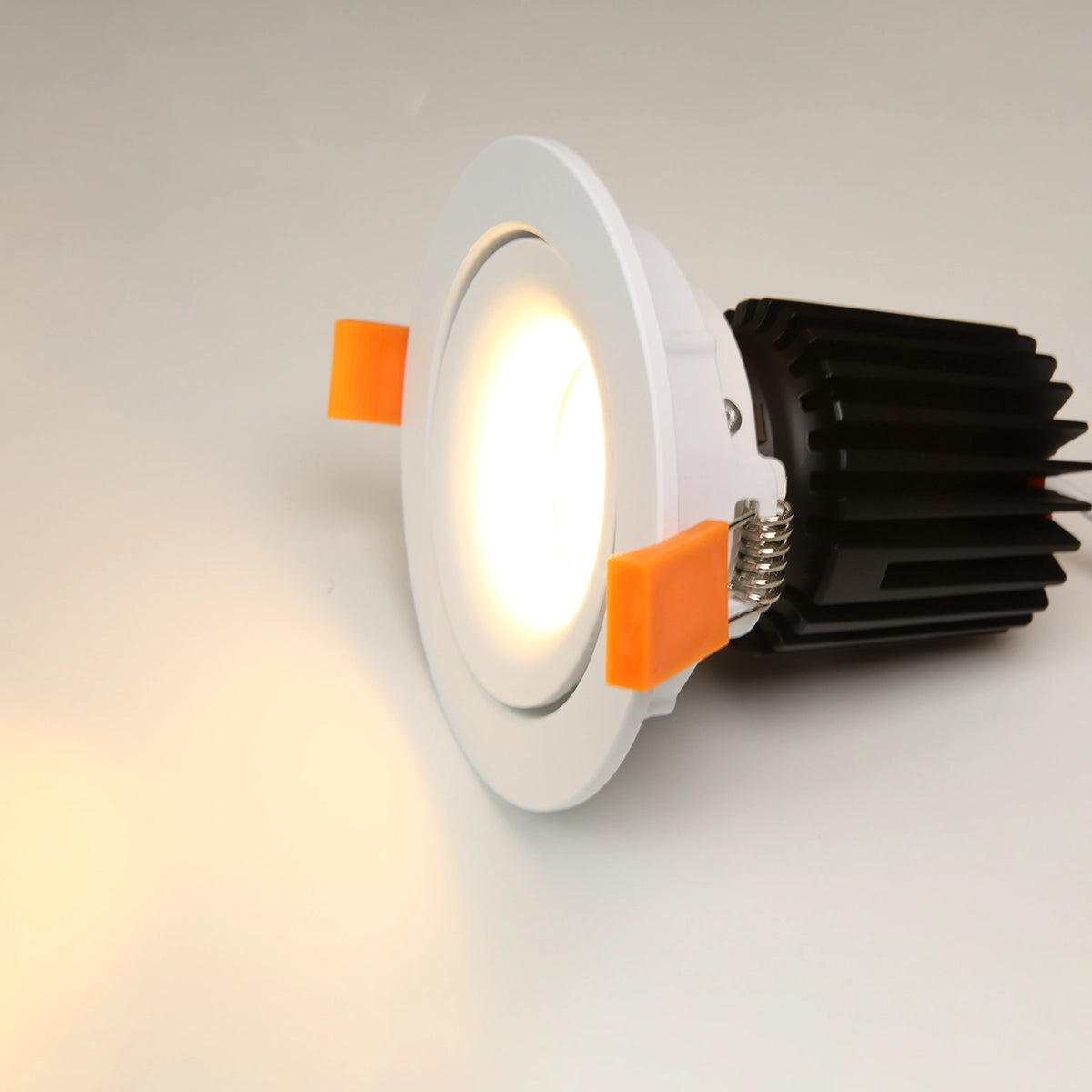

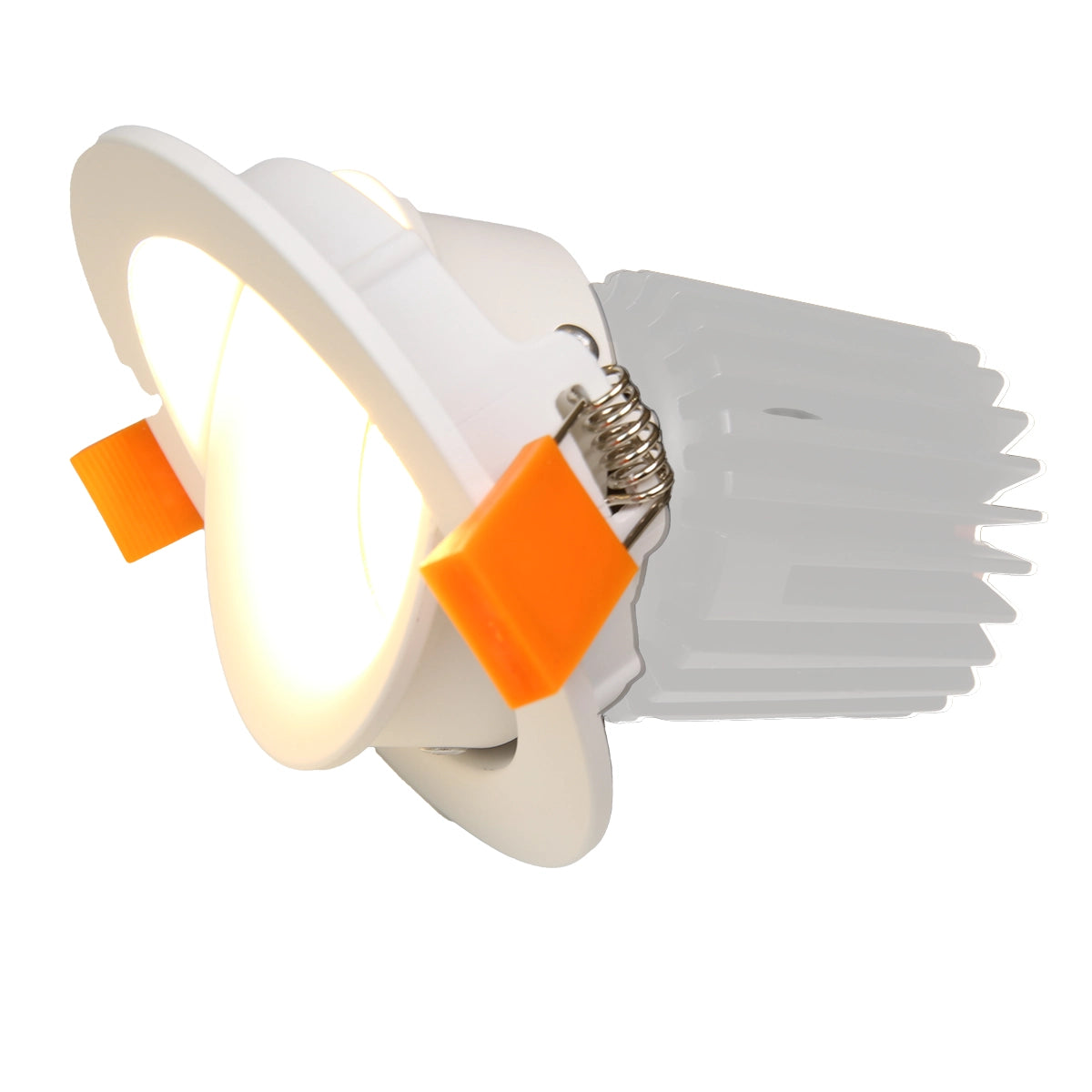

The price is for the surface mount trim only. The light is shown for illustration purposes only.
