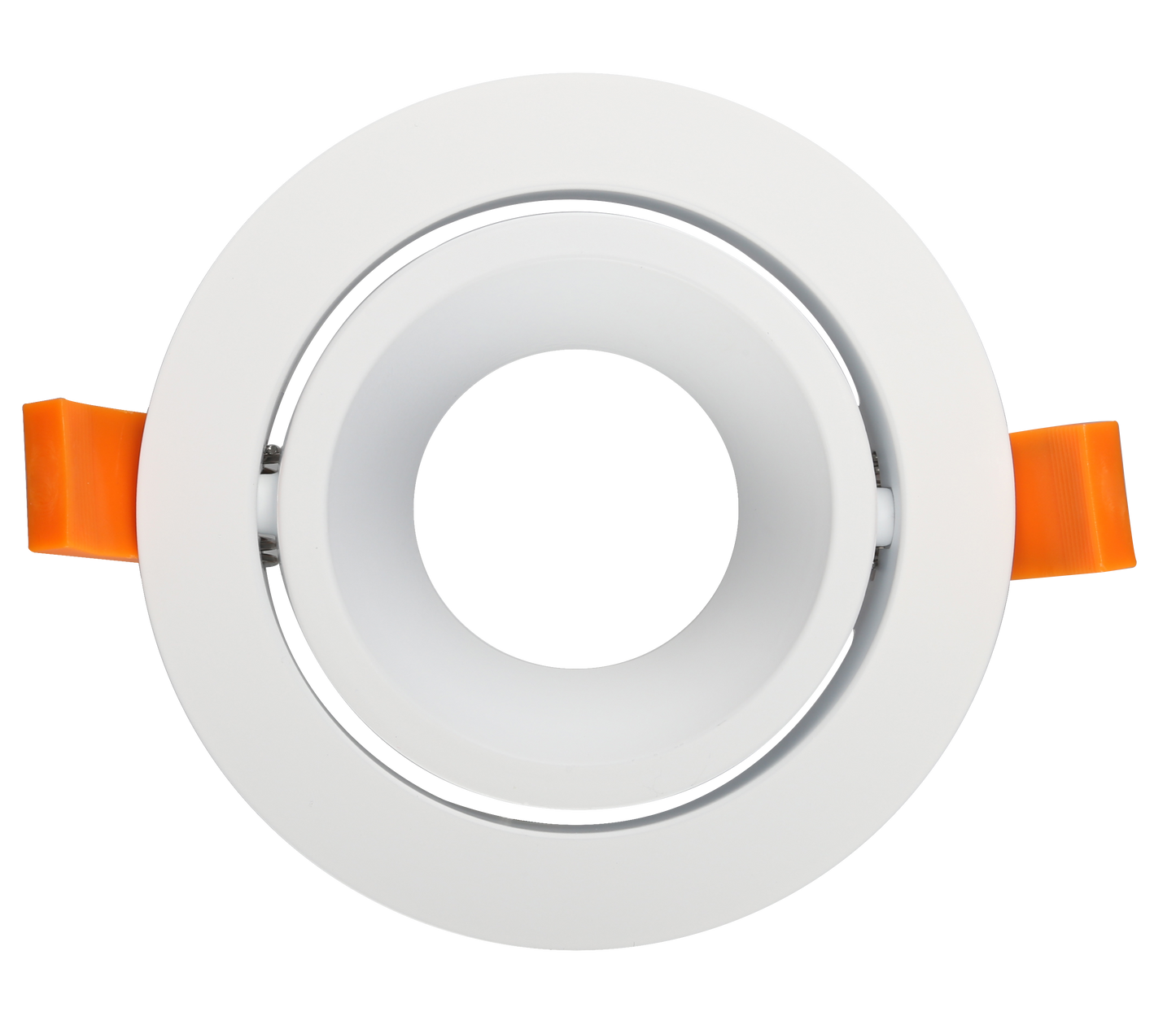

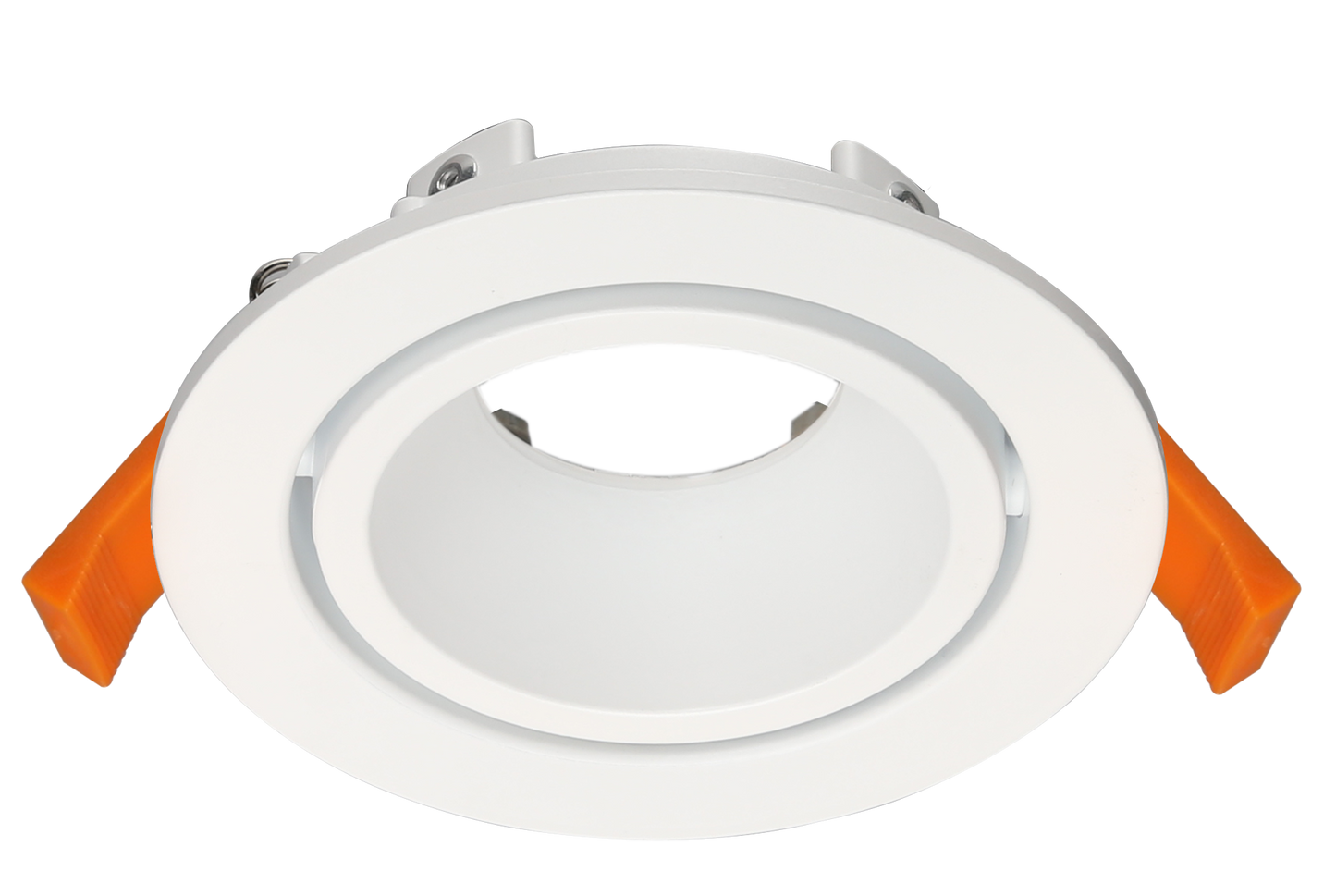

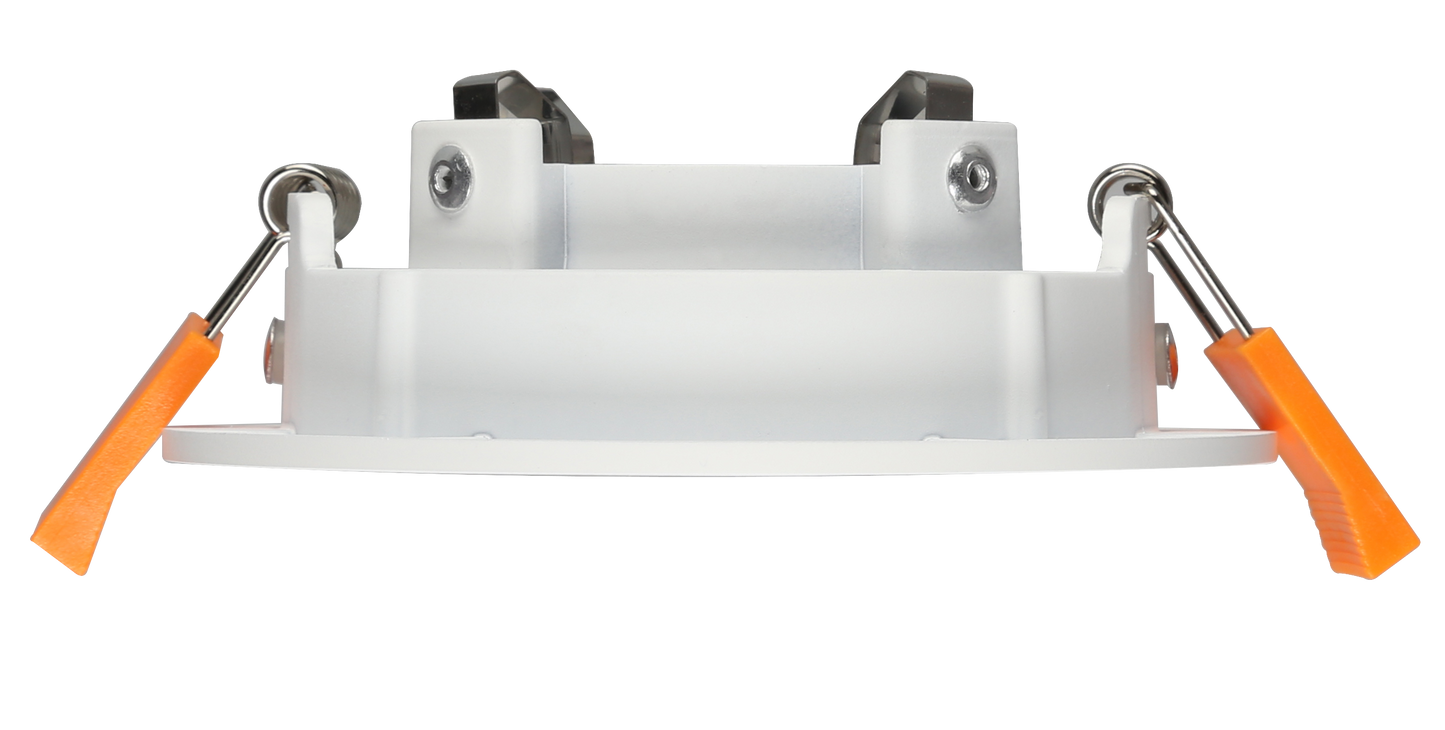

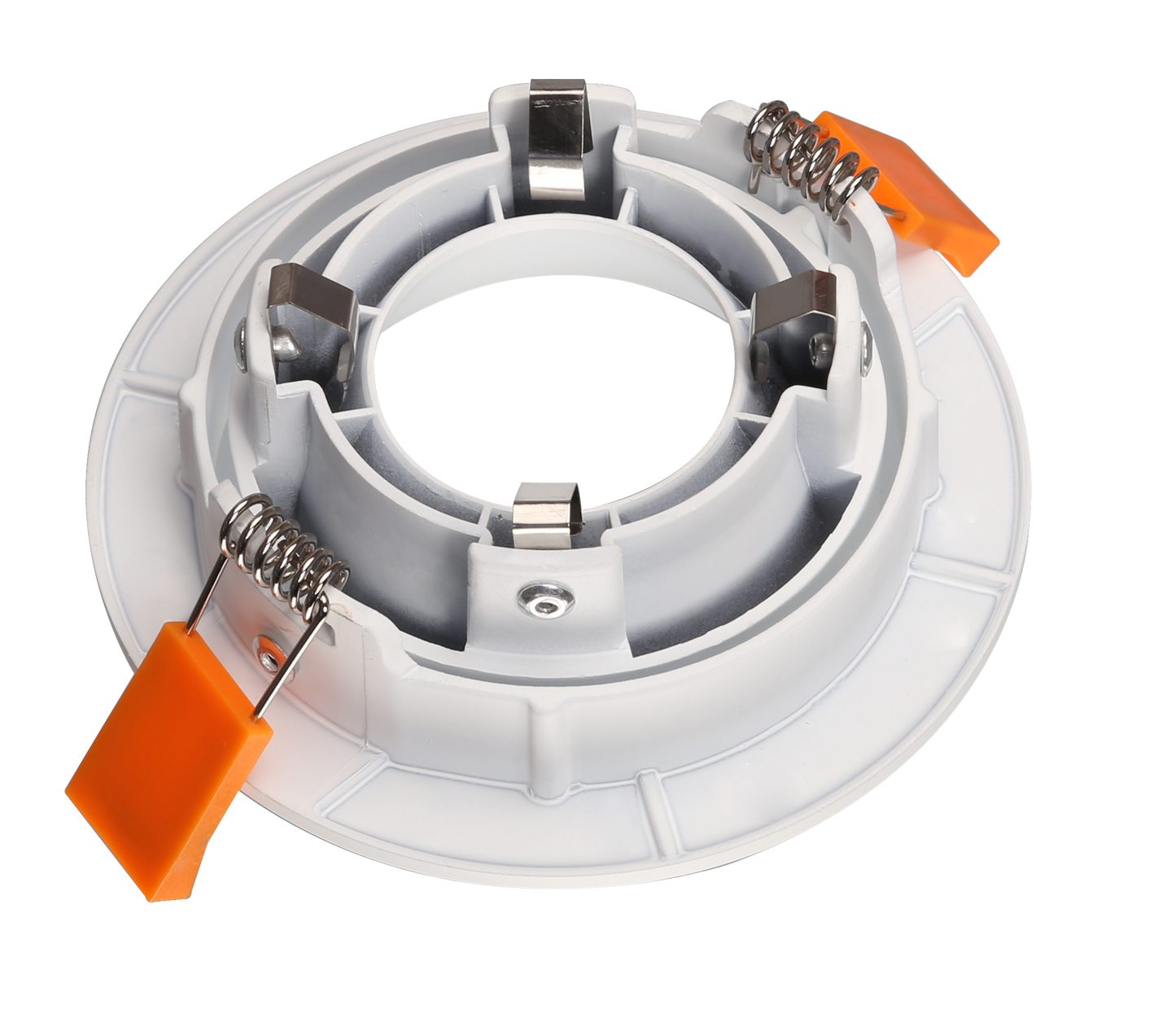

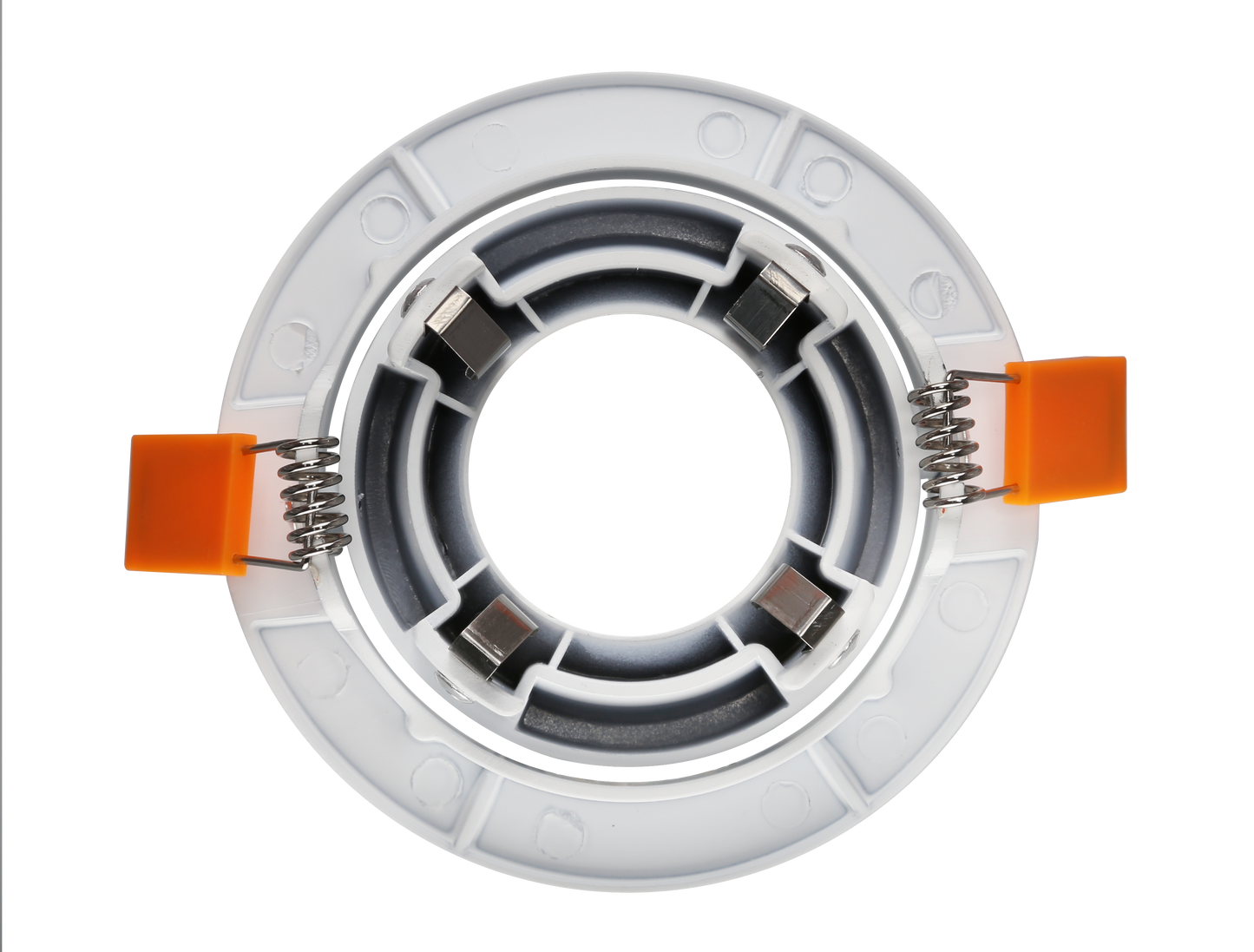

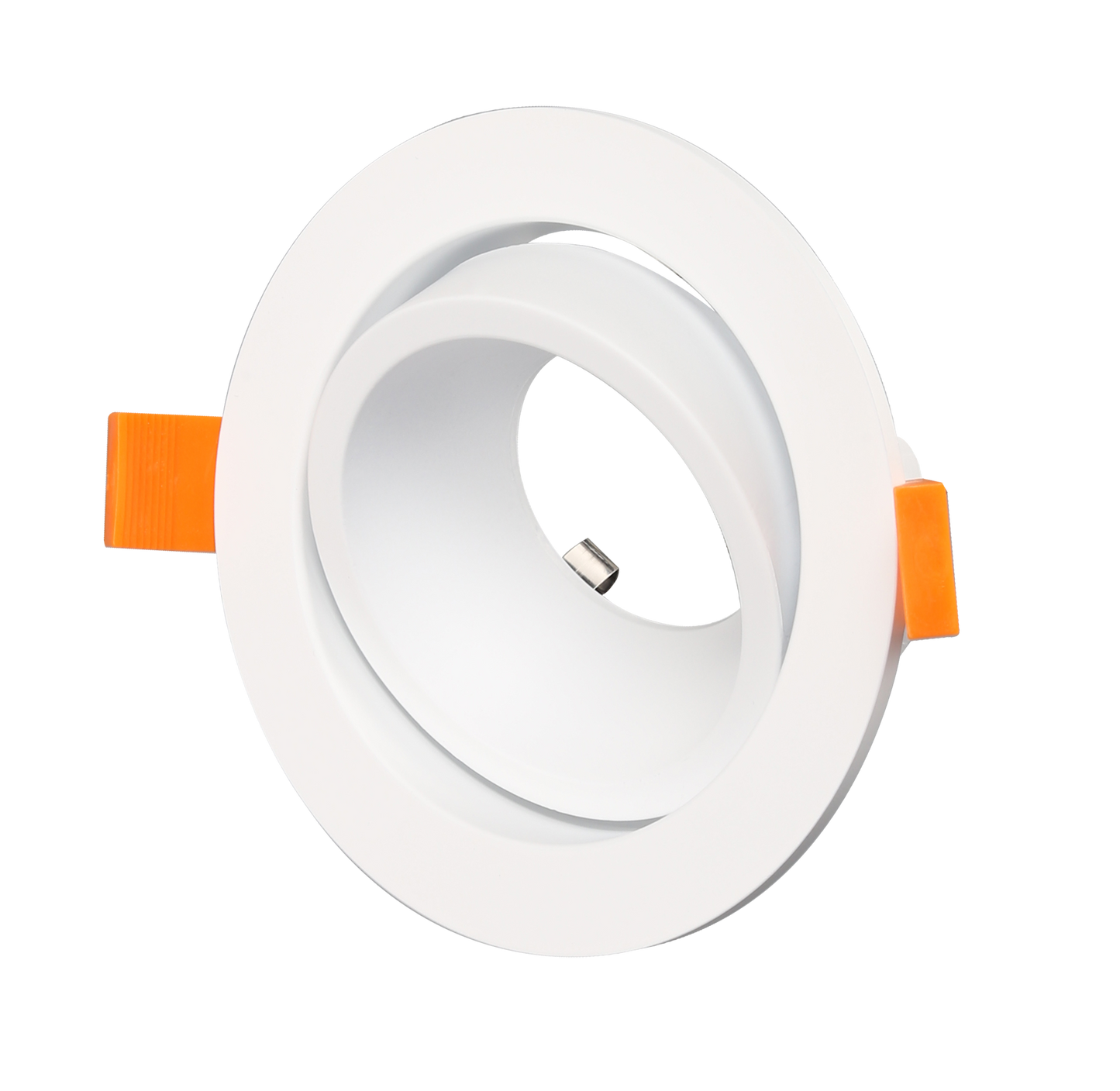

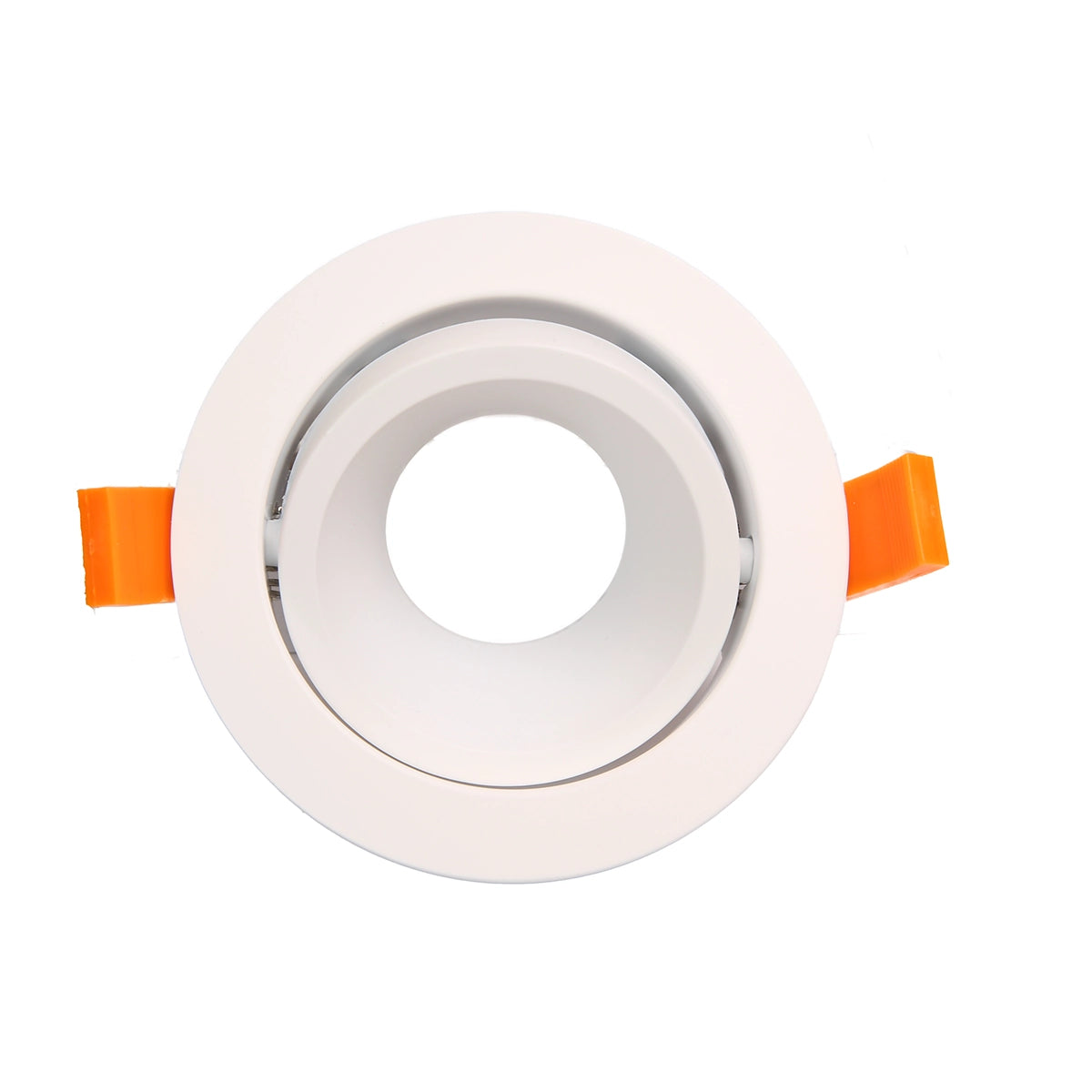

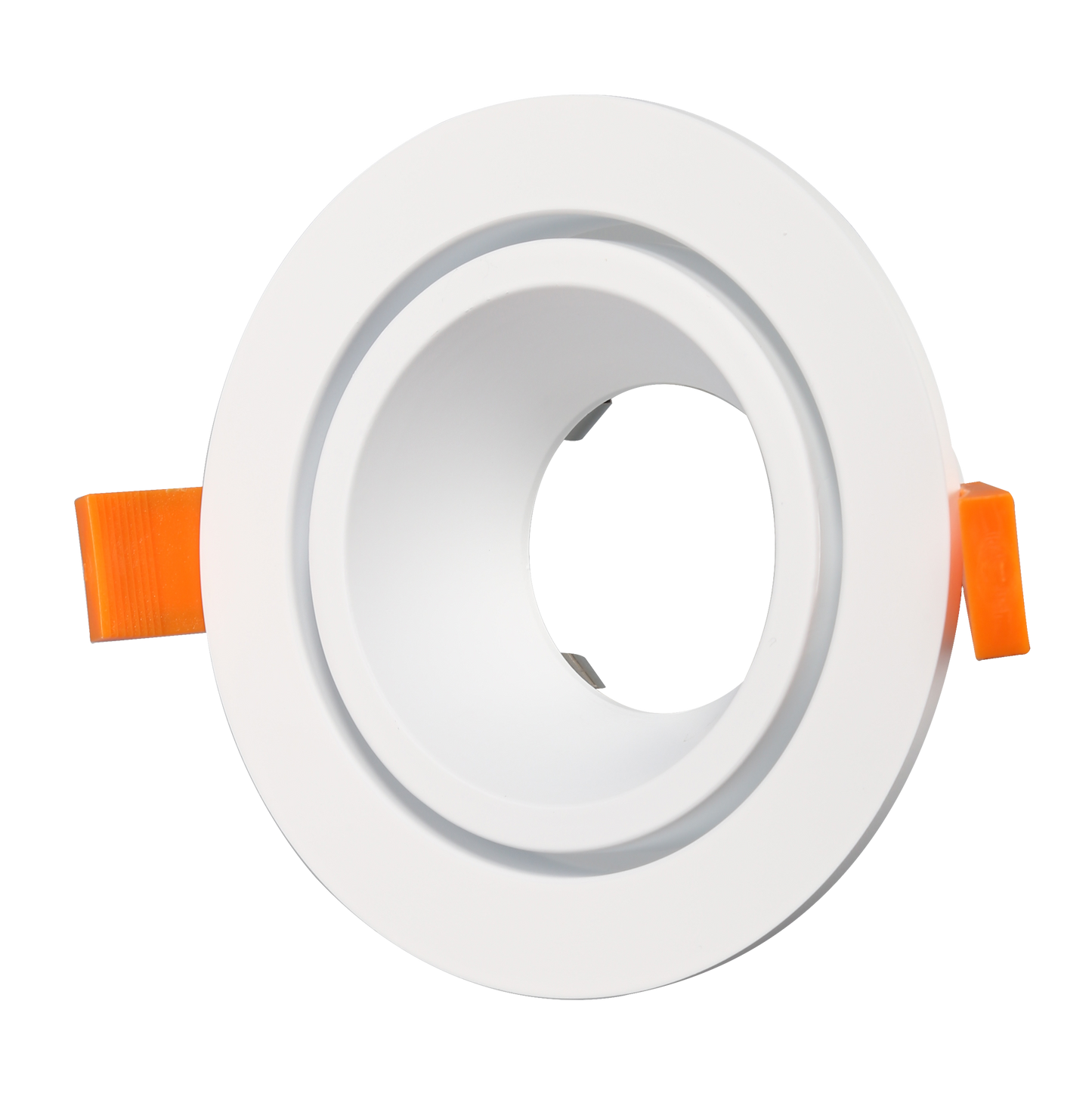

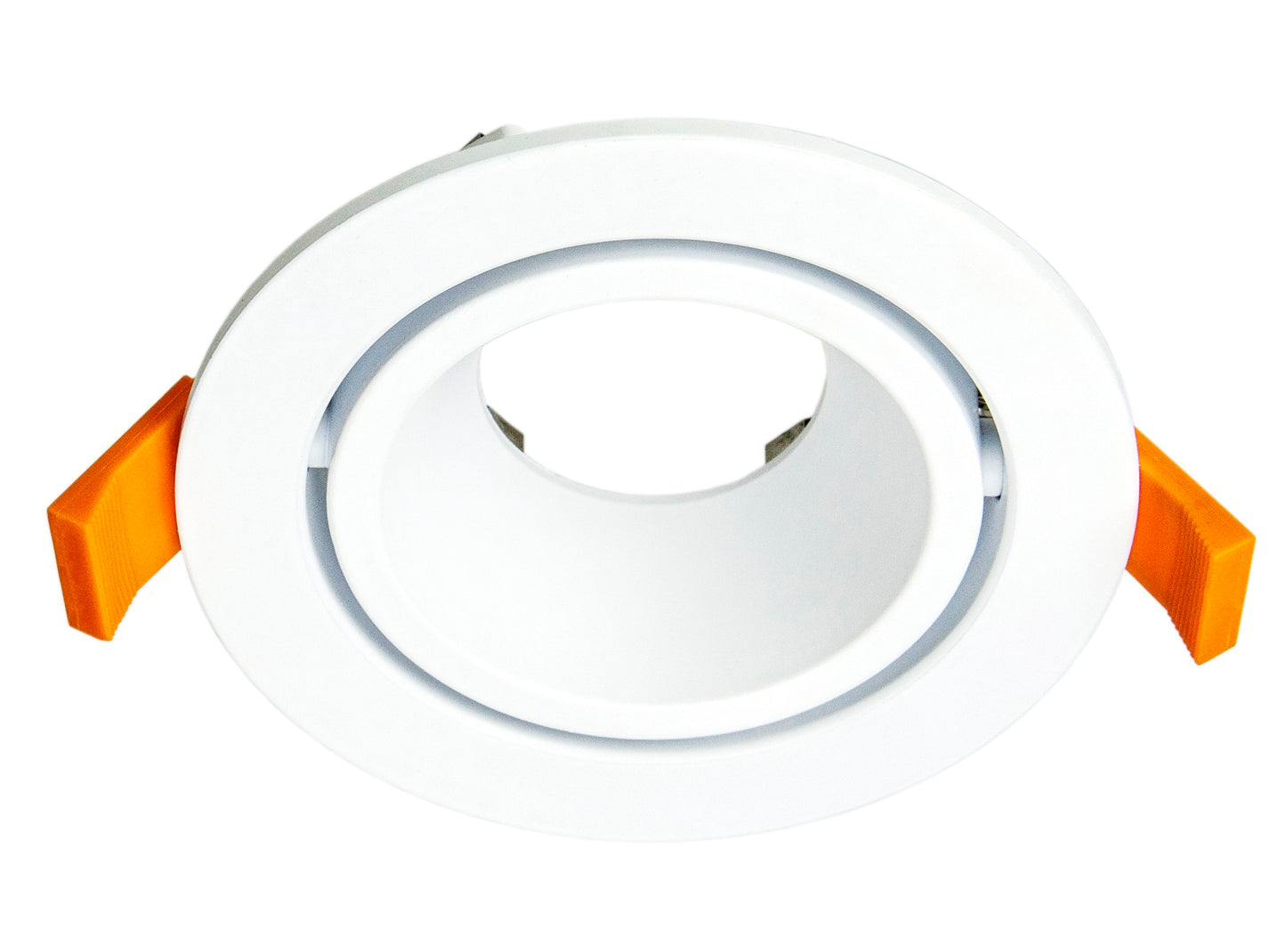

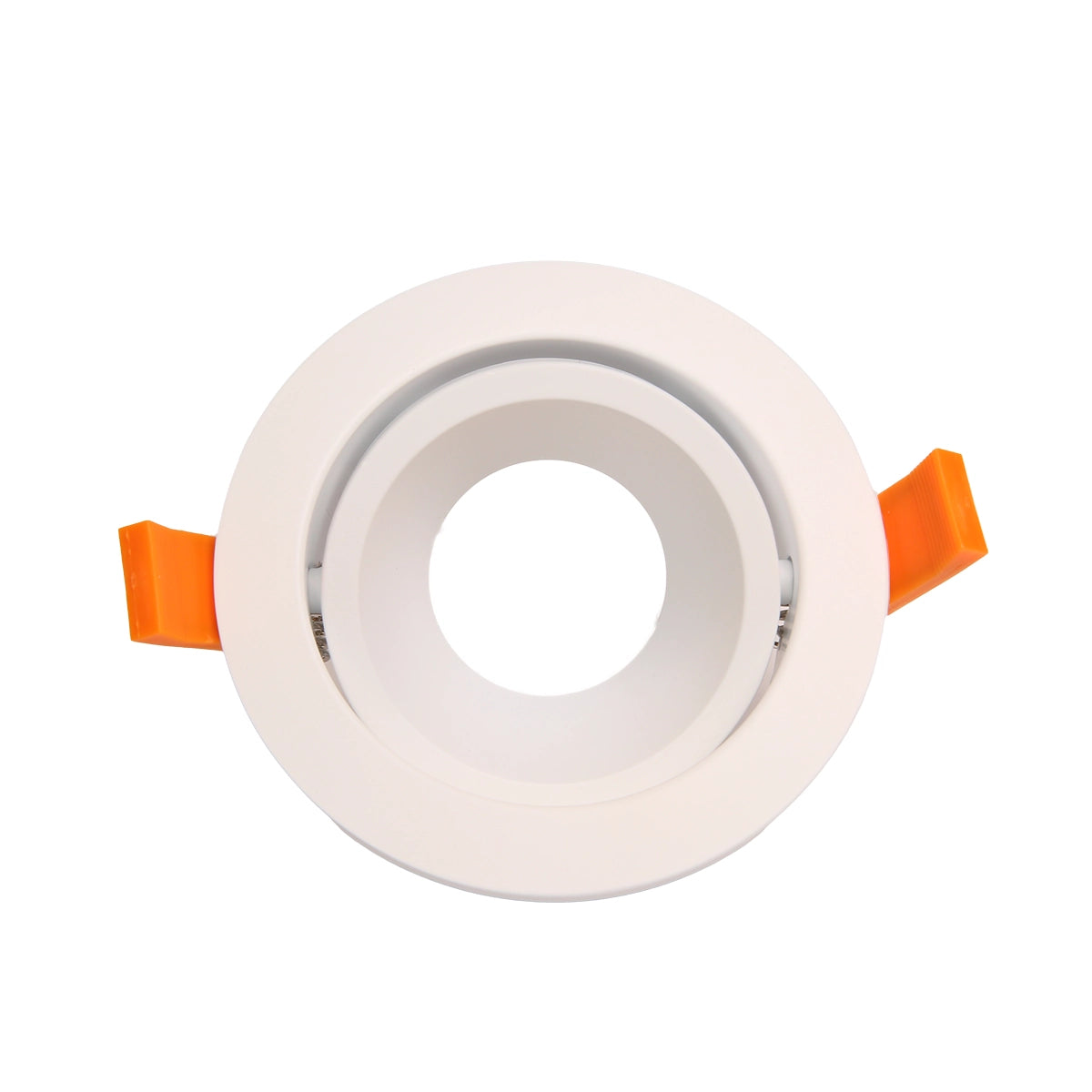

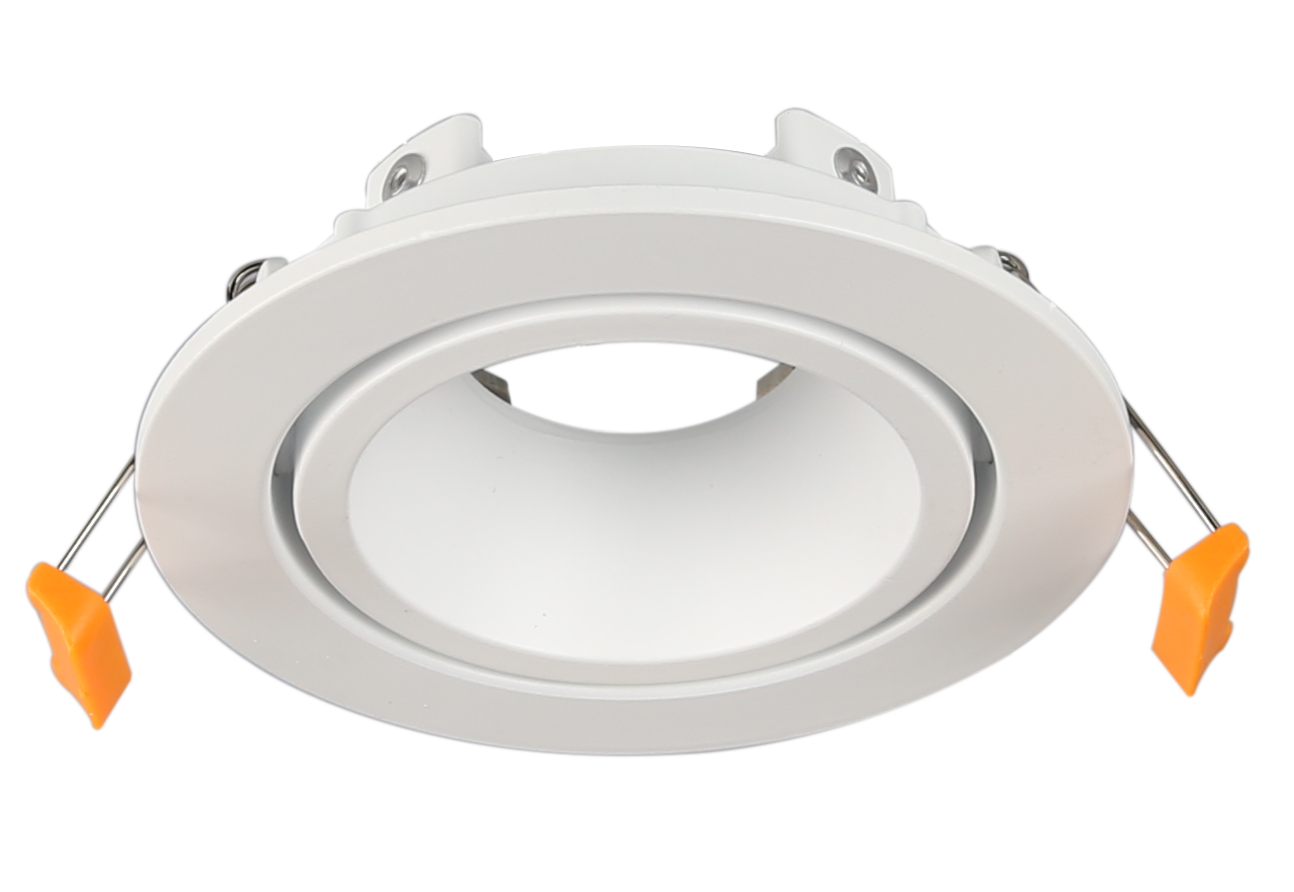

RA3 White- Round Gimbal IP20 surface mount trim for X Series COB Modules

RA3 White- Round Gimbal IP20 surface mount trim for X Series COB Modules

91 in stock

SKU:RA3 White

Regular price $13.00 AUD
Regular price $17.00 AUD Sale price $13.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

IP20, Adjustable Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.

Choose this trim if

a. when you desire to have replace a fixed light fitting with a gimbal light fitting.

b. when  you desire a low glare rating as the light sits far back in the ceiling.

c. The face size of 105 mm will enable it to cover hole sizes of 92mm as well.

Do not choose this trim if

a. You are replacing existing lights and the cut out size is large than 90 mm

b. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.

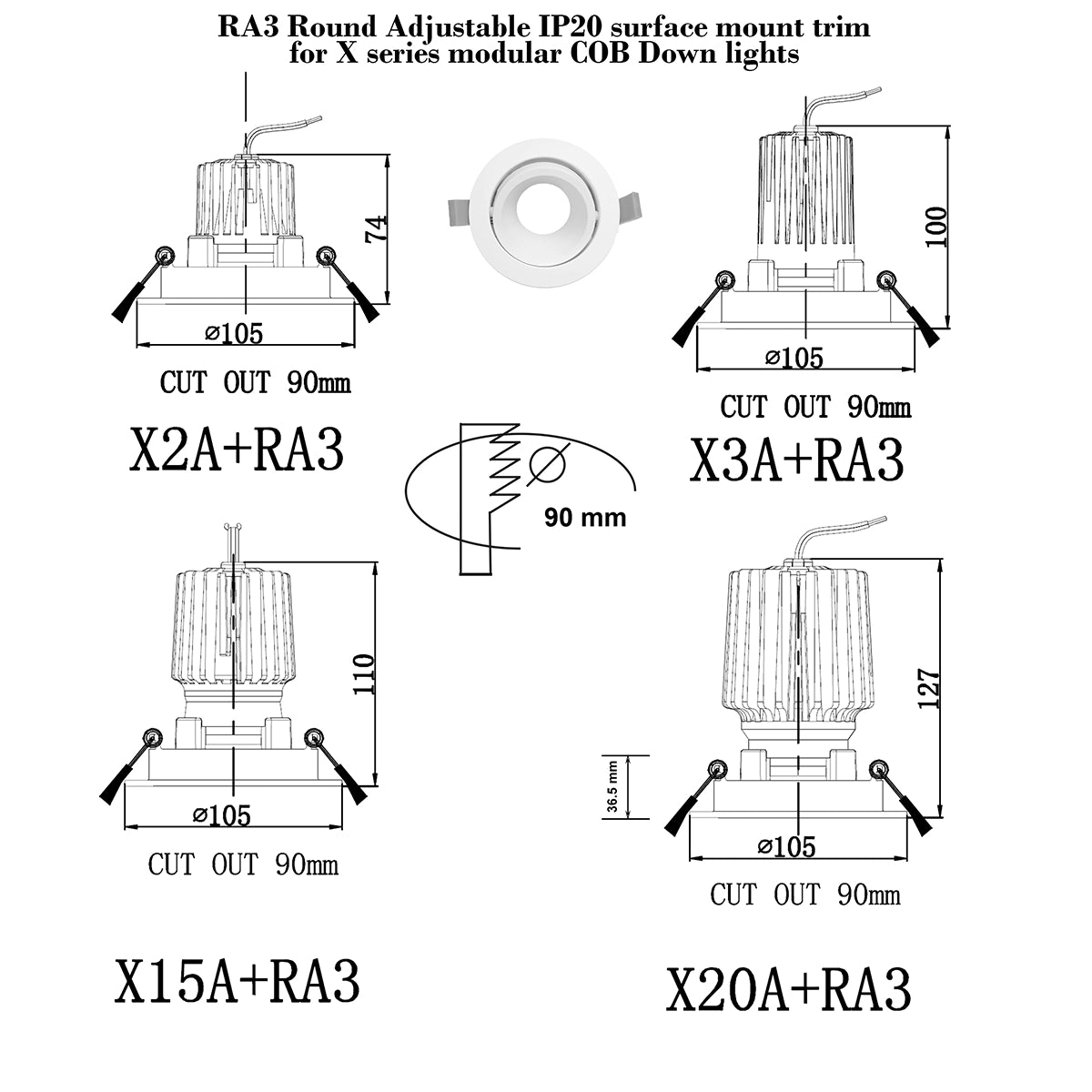

Cut out

89-92 mm

Diameter of face

105 mm

Total height of fitting

37 mm

Mounting depth with X3A

100 mm

Mounting depth with X15A

110 mm

Mounting depth with X20A

127 mm

Mounting depth with XRGBW

100 mm

Mounting depth with XCCT

85 mm


Click here to download a pdf spec sheet for RA3 round adjustable IP20 trim.

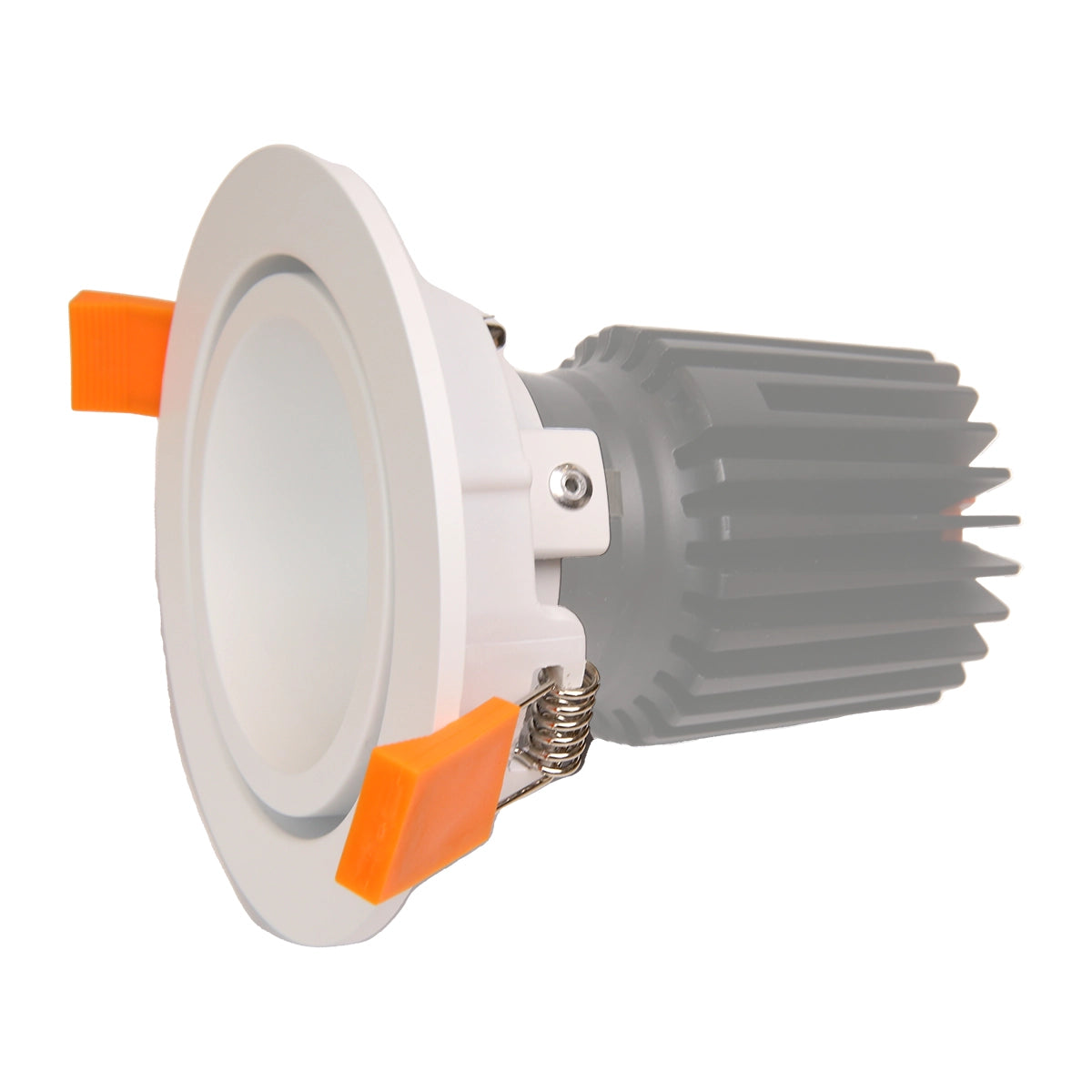

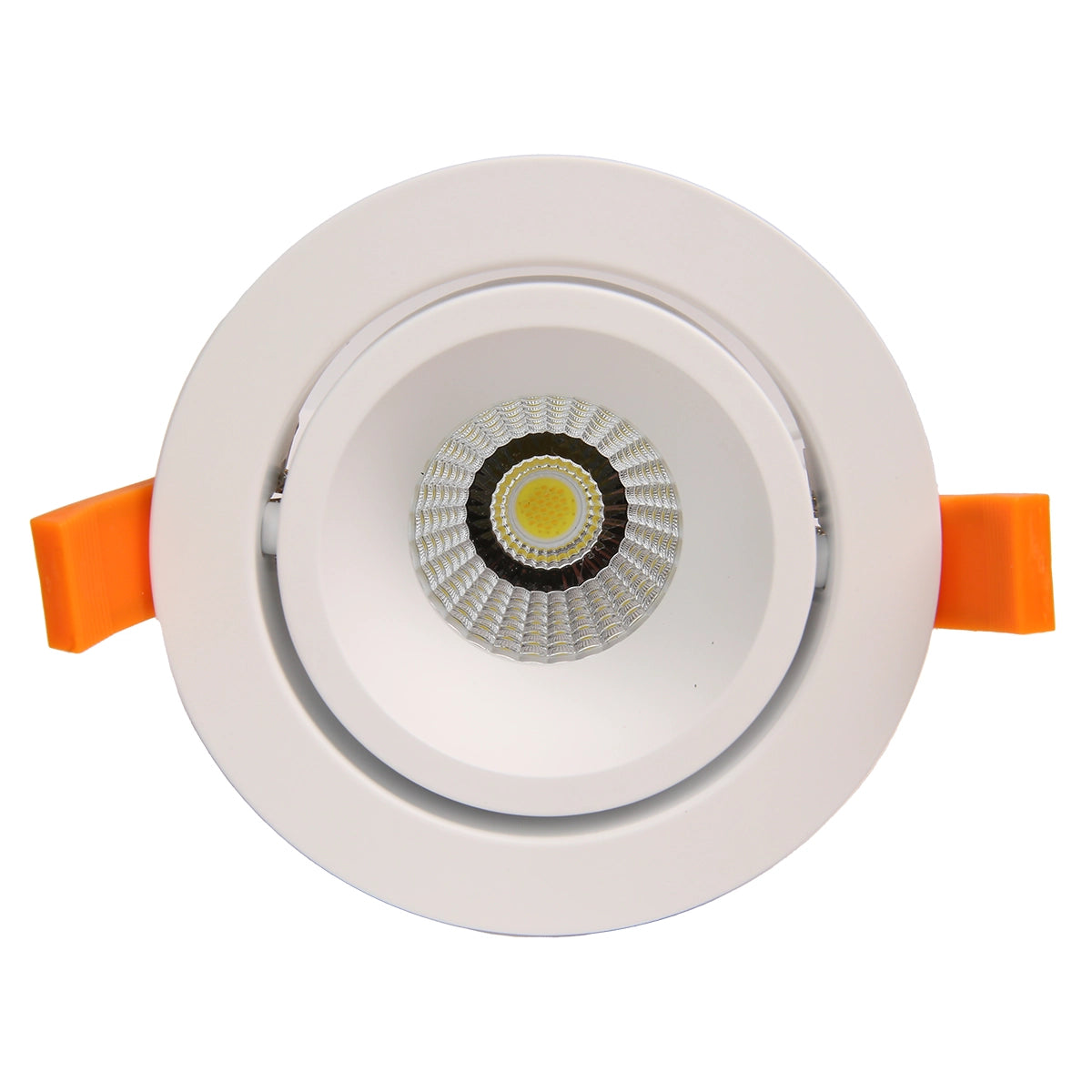

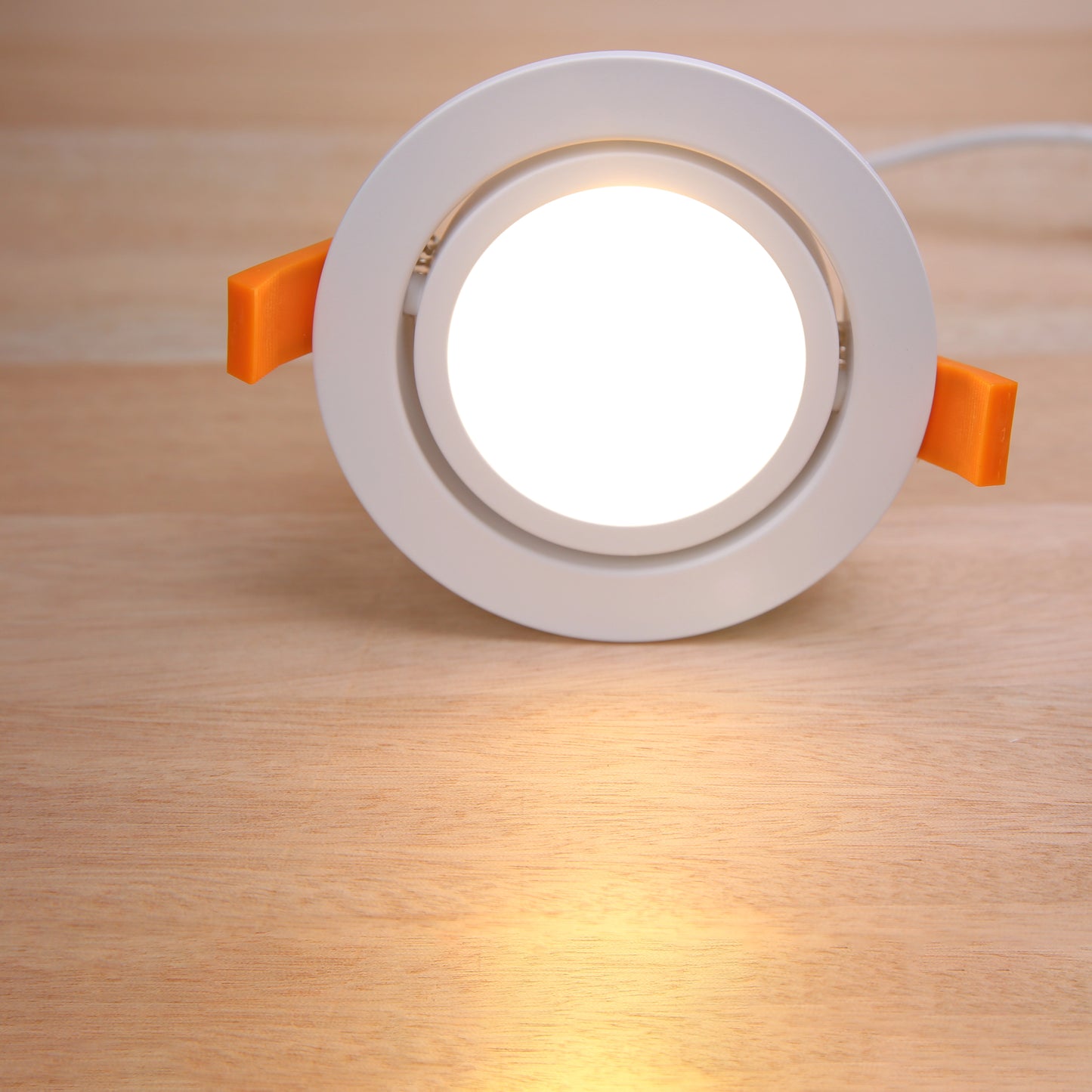

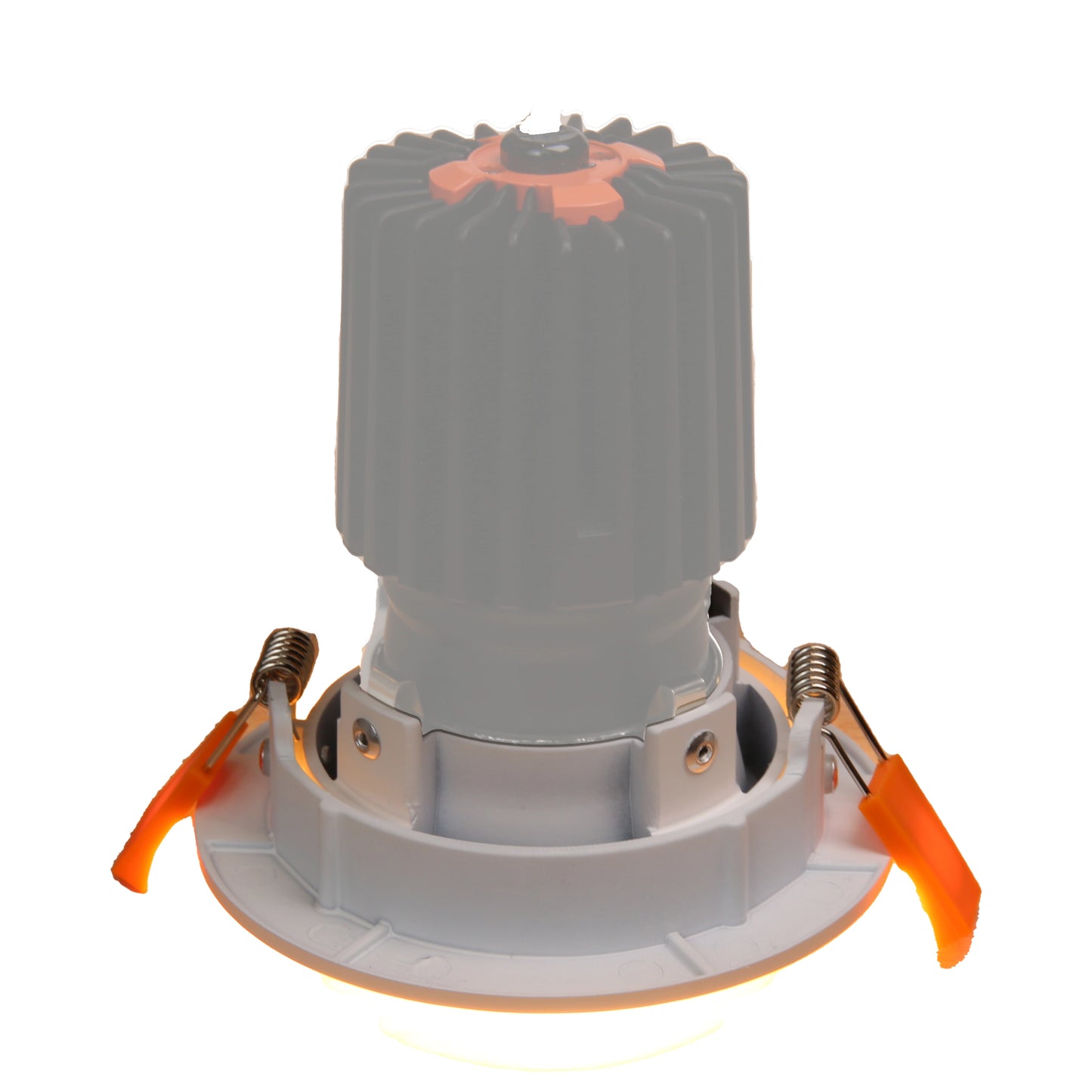

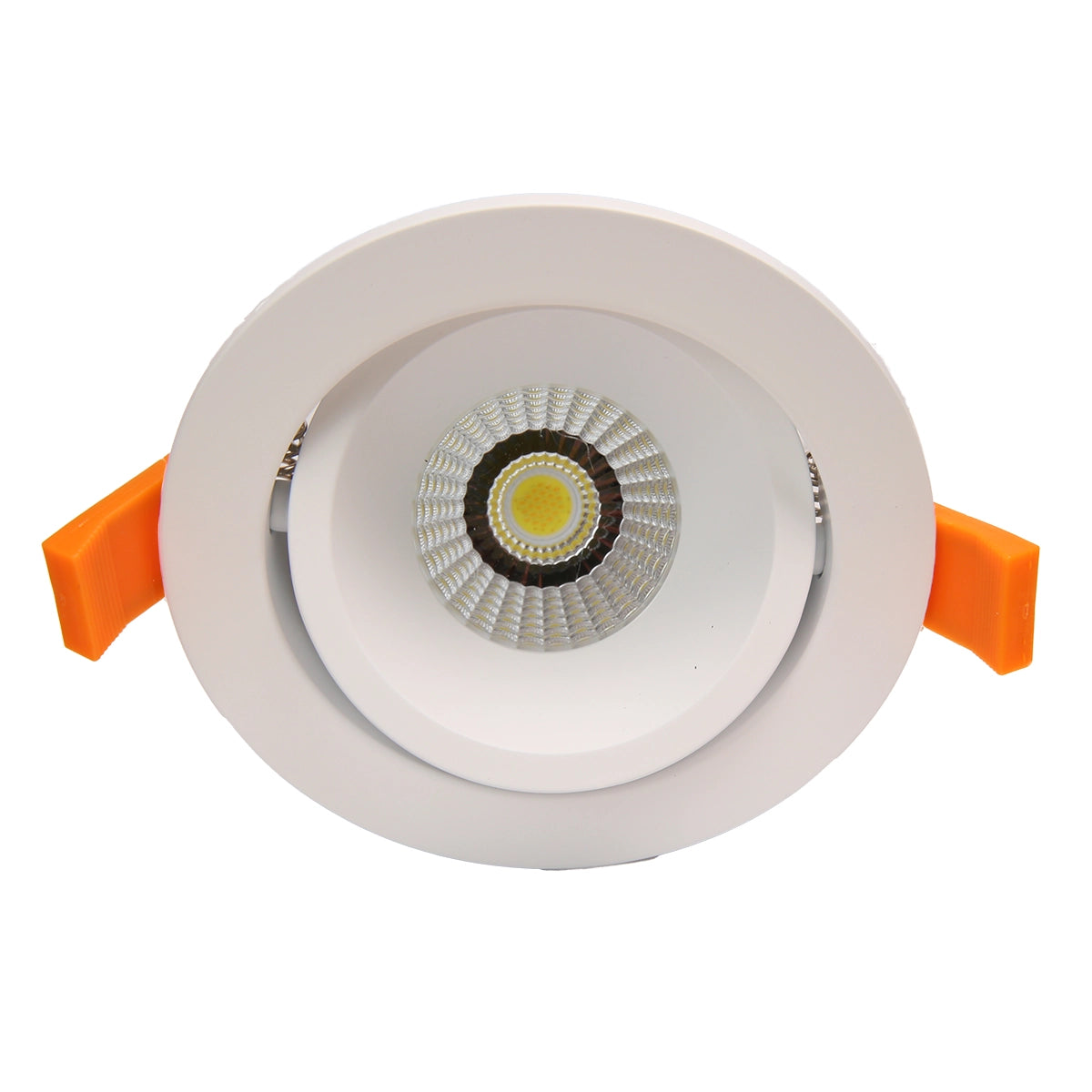

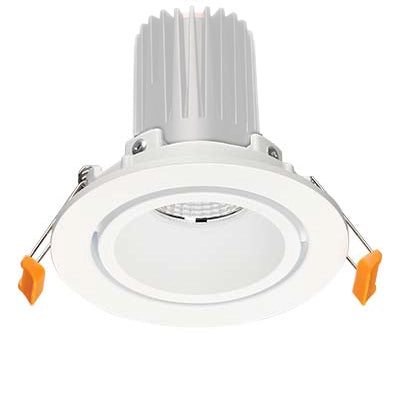

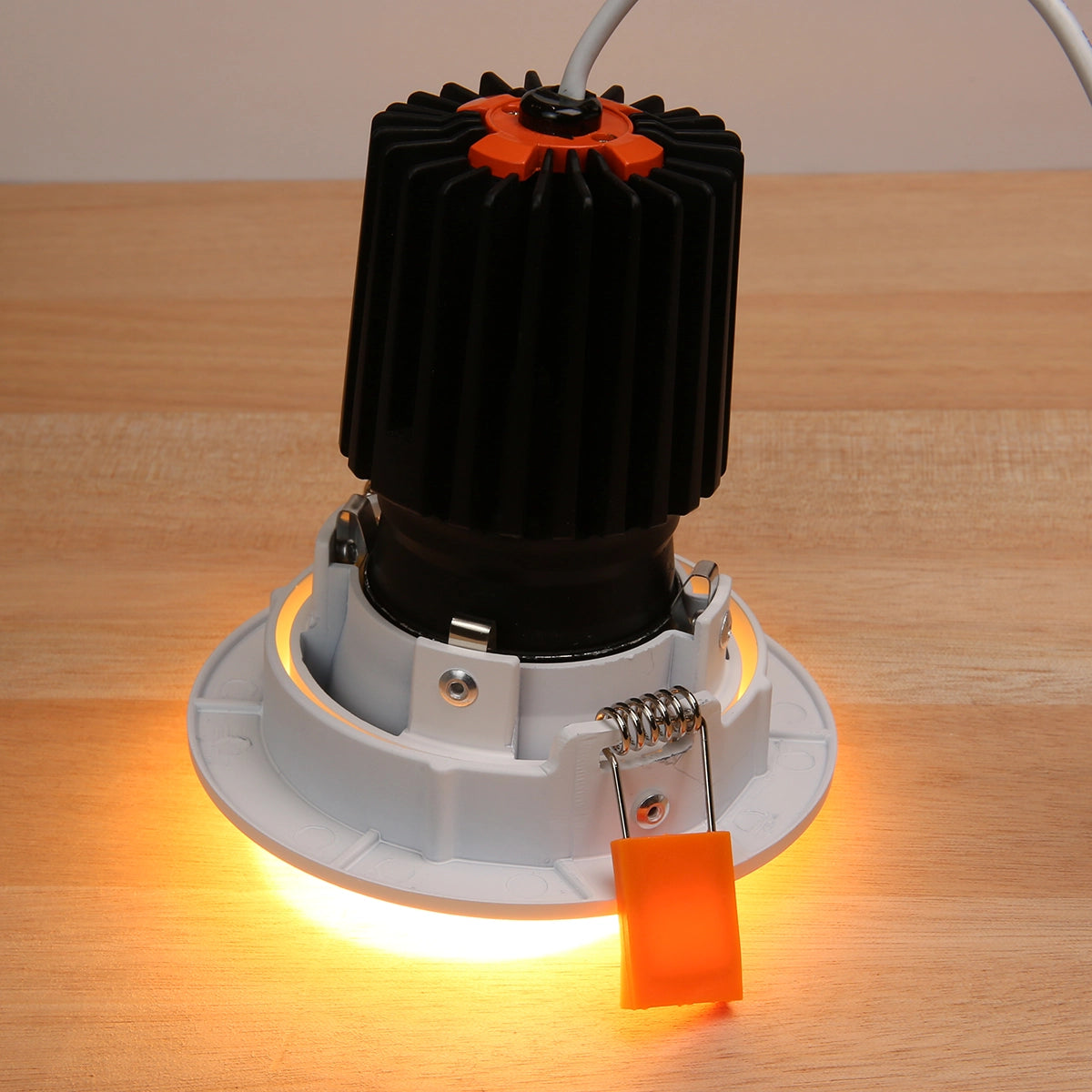

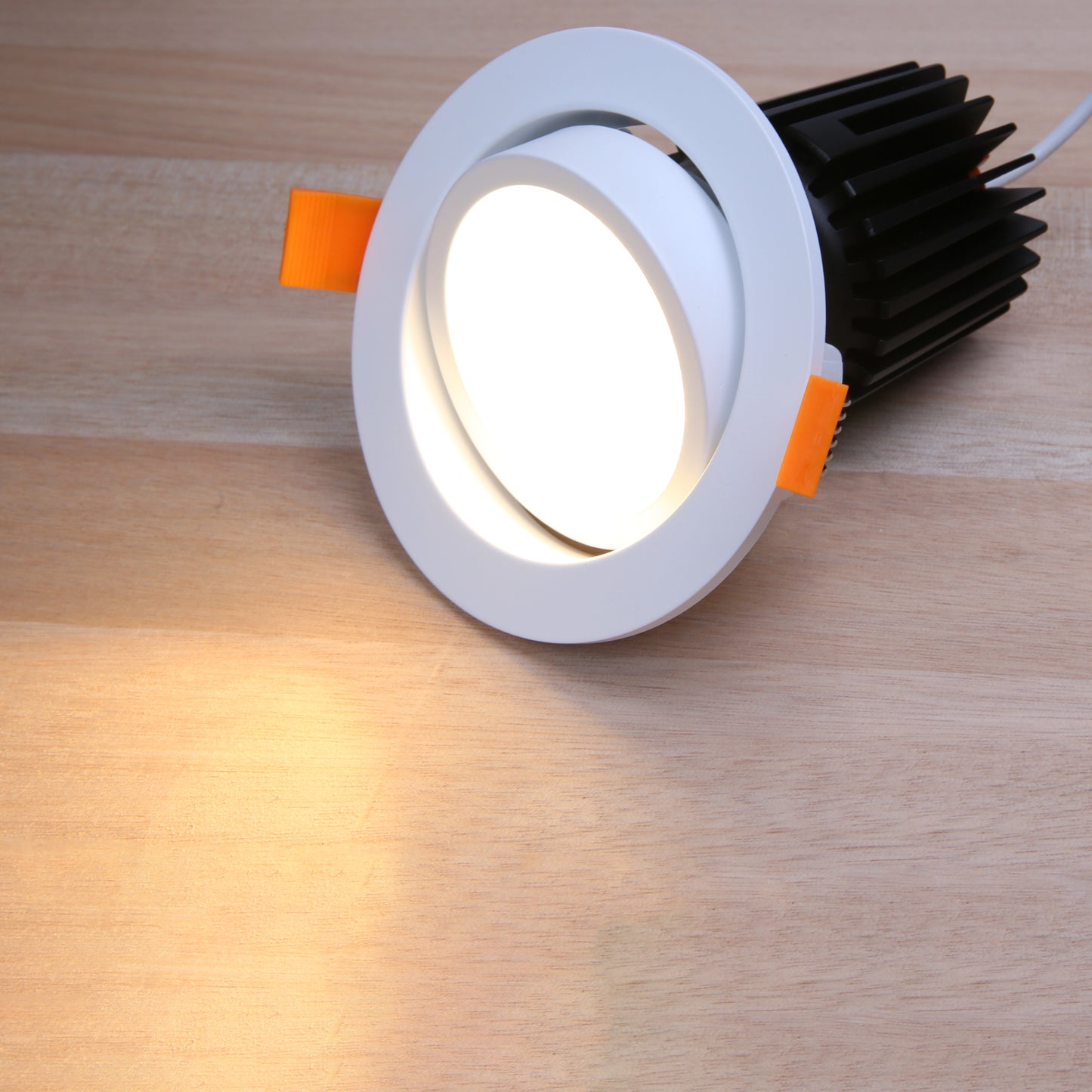

The price is for the surface mount trim only. The light is shown for illustration purposes only.
